RPS-C30
RPS-SONIC
| Frequency | 35Khz | Power | 800W |
|---|---|---|---|
| Dimensions | 360*120*115mm | Product Name | Portable Ultrasonic Cutter |
| Material | PP, PE, OPP, ABS,PE,PC,PS,PVC,PP,etc | Weight | 3.5KG |
| High Light | 800w ultrasonic cutting device,35k ultrasonic cutting device,35Khz ultrasonic cutting device | ||

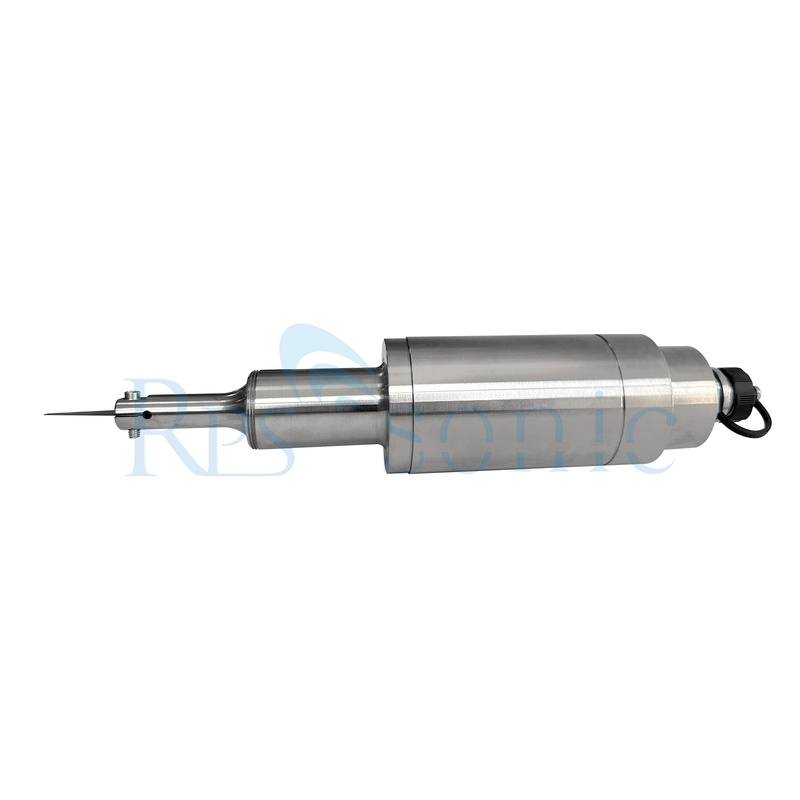

35K 800W Mounted on the robotic arm With 485 Communication System Ultrasonic Cutting Equipment
What is the cutting done by the ultrasonic cutter?
Ultrasonic cutter vibrates its blade 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven fabric and composite materials. Besides being excellent in maintainability, our products are environment-friendly as they do not substantially discharge any crumbs, waste water, noise, or smoke.
How does ultrasonic cutter work?
Each object has its special frequency, by which the object is stable and easy to oscillate. By adding an external force that corresponds to that special frequency, a small force can
obtain a large oscillation. This phenomenon is called resonance. The cutting edge is oscillated greatly with the use of resonance.
The ultrasonic cutter is composed of a "transducer" that generates oscillation and an "oscillator" that drives the transducer. Piezoelectric elements are incorporated in the transducer, and by applying an AC voltage aligned with the characteristic frequency of transducer from the oscillator to the piezoelectric element, the entire vibrator including the cutter blade is resonated. Transducer comes with feedback-control system which transmits information of frequency or amplitude deviation to oscillator caused by cutting load. The feedback-control system can keep resonance state and amplitude of blade stable a nd it enable the cutte rs always to cut materials sharply and cleanly.
Parameter
| Model | RPS-C30 |
| Frequency | 30kHz |
| Output Power | 800watt |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 3.5KG |
| Voltage | 220V / 110V |
| Material of cutter | titanium alloy |
Accessory
FAQ
1. Do you have it in stock?
We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers’ different requirements
2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
3.How long do you make the order product?
Common products for 7days,big qty and none standard products for 20days
4. Do you have operating manual?
Of course, we will put it with the goods together.
5. How about the quality?
We have export to many other customers from all over the world,the feed back is good,quality is the first of our company
6. Could you do OEM?
Yes, of course.We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
7. Could we as your agent?
Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
8.Payment:100%T/T in advance
9.Delivery?
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavy weight more than 50kg,we suggest to use sea freight LCL or by air
10.Warranty:
1 years Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
We can produce according customers’requirements,OEM is available,pls send me inquiry for quotations.
