| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-AT40 |
| Minimum Order Quantity | 1set |
| Packaging Details | carton |
| Payment Terms | T/T |
| Supply Ability | 200pcs |
Description:
An ultrasonic spray nozzle is a device that uses ultrasonic vibrations to atomize or spray a liquid into very fine droplets. The nozzle works by converting electrical energy into high-frequency ultrasonic vibrations, which are then transmitted to the liquid as it flows through the nozzle. This causes the liquid to break up into a fine mist or spray with very small, uniform droplets.
Ultrasonic Transducer: This component generates high-frequency sound waves (ultrasonic waves), which cause the nozzle to vibrate at ultrasonic frequencies (typically between 20 kHz to 2 MHz).
Spray Tip or Nozzle: The liquid passes through this tip, where the ultrasonic vibrations break it up into a mist.

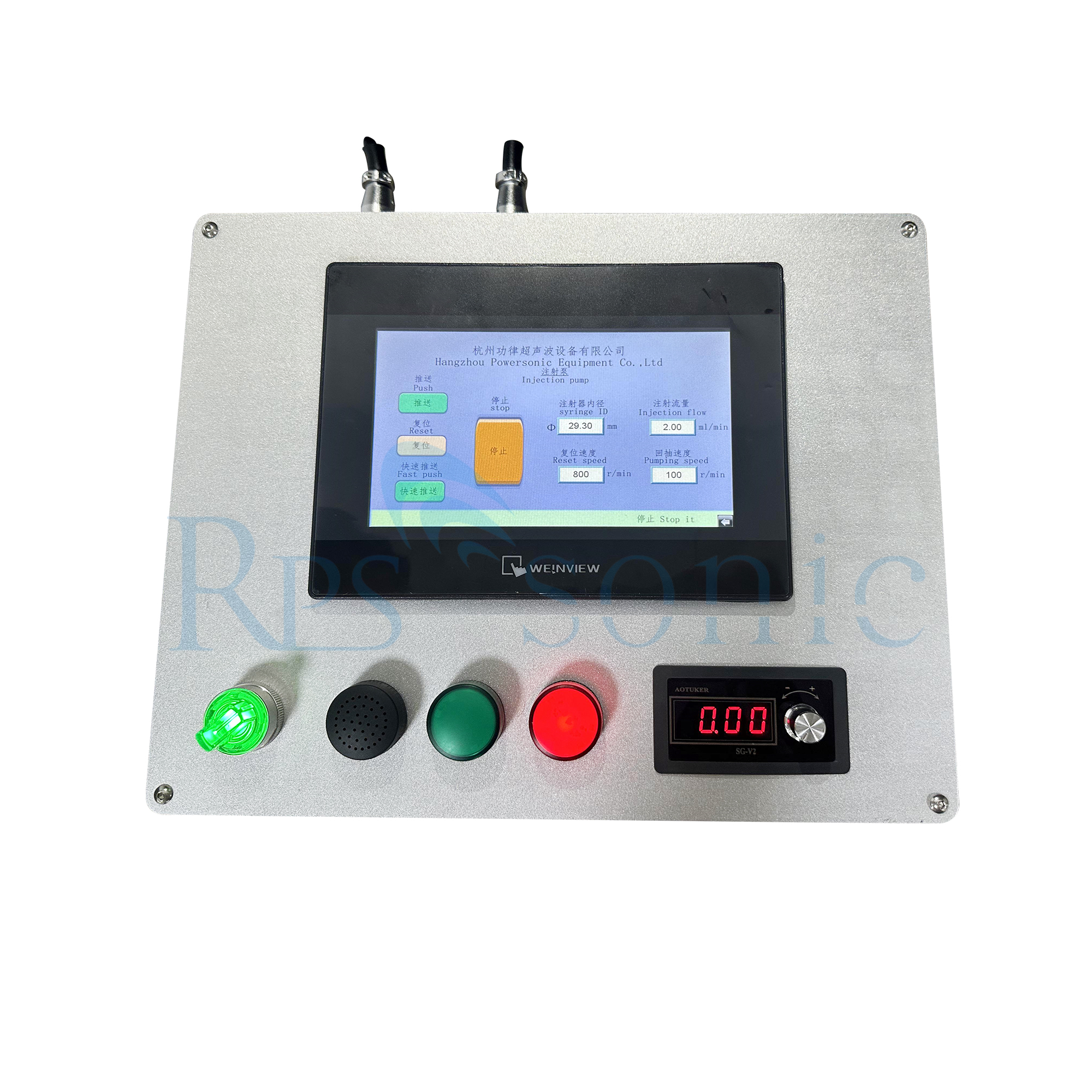

Power Supply and Controller: These components provide the necessary electrical power and control to generate the ultrasonic vibrations at the required frequency.
Coating and Surface Treatment: Ultrasonic spray nozzles are used for precision coating in industries like electronics, automotive, and textiles, where uniform thin films are needed.
Fuel Injection Systems: In combustion engines or industrial burners, ultrasonic spray nozzles are used to improve fuel atomization, leading to more efficient combustion.
Medical and Pharmaceutical Uses: In aerosol drug delivery or surface sterilization, ultrasonic nozzles can create fine sprays for inhalation or cleaning.
Agriculture: Used for crop spraying to ensure a more even distribution of pesticides or fertilizers.
Additive Manufacturing (3D Printing): Ultrasonic nozzles can be used to deposit material layer by layer in high-precision 3D printing processes.
Tech. info:
| Atomized particles | 15-40um |
| Spraying width | 10~50mm |
| Spray flow | >200ML/min |
| Spray height | 30-80mm |
| Suitable for liquid viscosity | <30cps |
| Suspension particle size | <15um |
| Diversion air pressure | <0.05mpa |
Applications
Electronics: Photoresists onto Wafer ,Sensors, PCB Fluxing, Semiconductors etc.
Industrial: Glass, Touch Screen, etc.
Medical: Medical Textile,Stents, Balloon Catheters, Diagnostic Device etc.
Energy: Fuel Cell, Solar Cell, etc.
Description:
An ultrasonic spray nozzle is a device that uses ultrasonic vibrations to atomize or spray a liquid into very fine droplets. The nozzle works by converting electrical energy into high-frequency ultrasonic vibrations, which are then transmitted to the liquid as it flows through the nozzle. This causes the liquid to break up into a fine mist or spray with very small, uniform droplets.
Ultrasonic Transducer: This component generates high-frequency sound waves (ultrasonic waves), which cause the nozzle to vibrate at ultrasonic frequencies (typically between 20 kHz to 2 MHz).
Spray Tip or Nozzle: The liquid passes through this tip, where the ultrasonic vibrations break it up into a mist.
Power Supply and Controller: These components provide the necessary electrical power and control to generate the ultrasonic vibrations at the required frequency.
Coating and Surface Treatment: Ultrasonic spray nozzles are used for precision coating in industries like electronics, automotive, and textiles, where uniform thin films are needed.
Fuel Injection Systems: In combustion engines or industrial burners, ultrasonic spray nozzles are used to improve fuel atomization, leading to more efficient combustion.
Medical and Pharmaceutical Uses: In aerosol drug delivery or surface sterilization, ultrasonic nozzles can create fine sprays for inhalation or cleaning.
Agriculture: Used for crop spraying to ensure a more even distribution of pesticides or fertilizers.
Additive Manufacturing (3D Printing): Ultrasonic nozzles can be used to deposit material layer by layer in high-precision 3D printing processes.
Tech. info:
| Atomized particles | 15-40um |
| Spraying width | 10~50mm |
| Spray flow | >200ML/min |
| Spray height | 30-80mm |
| Suitable for liquid viscosity | <30cps |
| Suspension particle size | <15um |
| Diversion air pressure | <0.05mpa |
Applications
Electronics: Photoresists onto Wafer ,Sensors, PCB Fluxing, Semiconductors etc.
Industrial: Glass, Touch Screen, etc.
Medical: Medical Textile,Stents, Balloon Catheters, Diagnostic Device etc.
Energy: Fuel Cell, Solar Cell, etc.
