| Place of Origin | China |
|---|---|
| Brand Name | Rps-sonic |
| Certification | CE |
| Model Number | RPS-SI60 |
| Minimum Order Quantity | 1pcs |
| Price | negotiable |
| Packaging Details | CARTON |
| Delivery Time | 1DAYS |
| Payment Terms | T/T |
| Frequency | 60Khz | Power | 100w |
|---|---|---|---|
| Horn Material | Titanium | Temperature Range | 150 ~ 400 °C |
| Power Supply | 220V / 50-60 Hz | Size | 250(W) X 310(L) X 135(H) Mm |
| Iron Handle Length & Diameter | 190mm / Ø20 | ||
| High Light | Ultrasonic Soldering Equipment 60K,Ultrasonic Soldering Iron Equipment,60Khz Ultrasonic Soldering Machine | ||

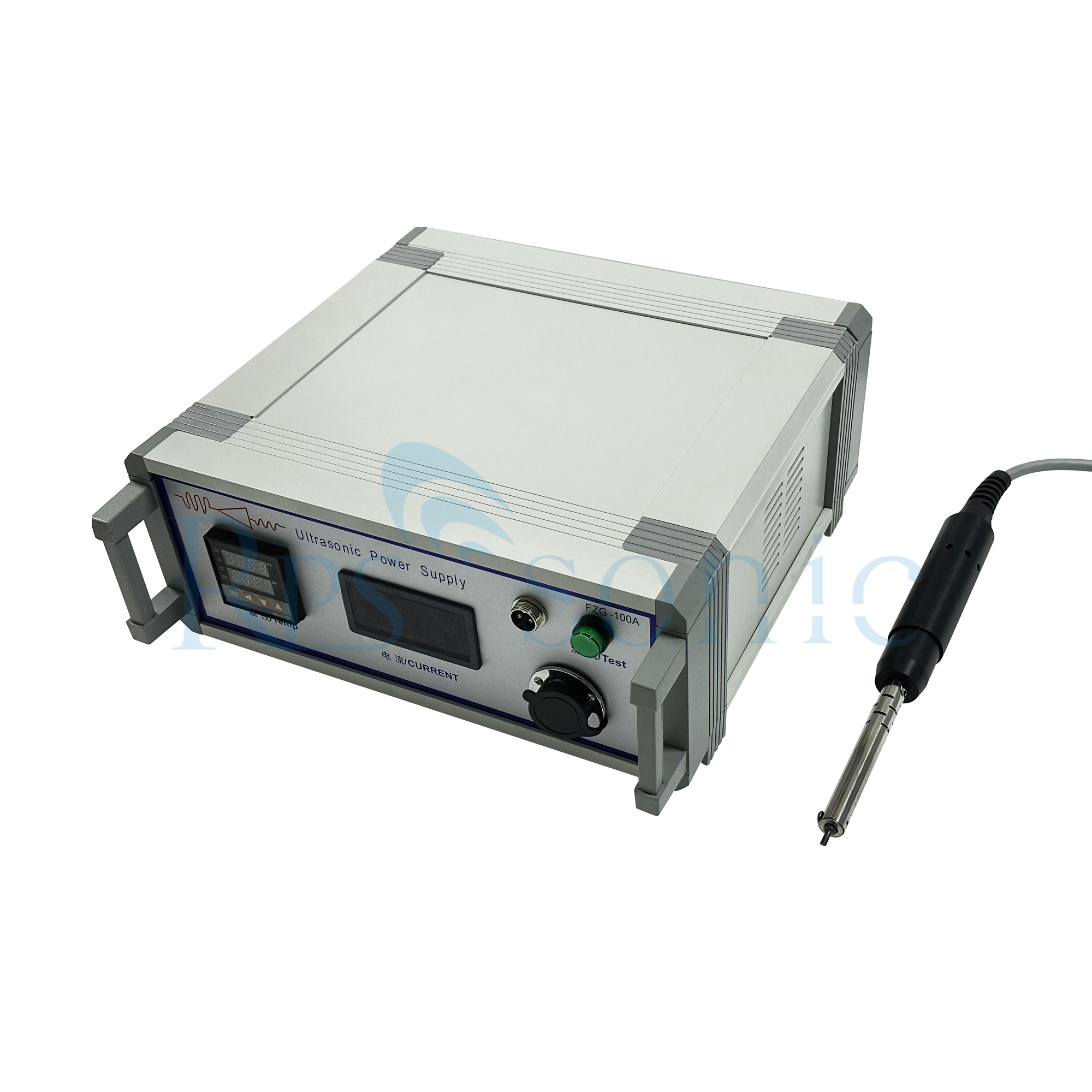

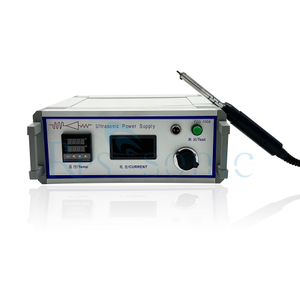

60Khz Ultrasonic Soldering Iron equipment soldering glass and copper
Parameter
| Model No. | RPS-SI60 | |
| Ultrasonic Frequency | 60Khz | |
| Maximum Output | 100 Watt | |
| Temperature Range | 150 ~ 400 °C | |
| Power Supply | 220V / 50-60 Hz | |
| Ultrasonic Generator | Size | 250(W) x 310(L) x 135(H) mm |
| Weight | 5 Kg | |
| Feature | Ultrasonic Amplitude Adjustable | |
| Iron Handle Length & Diameter | 190mm / Ø20 | |
| Avail Soldering Matrial | ITO Glass, AL, Mo, Cu etc., | |
Description

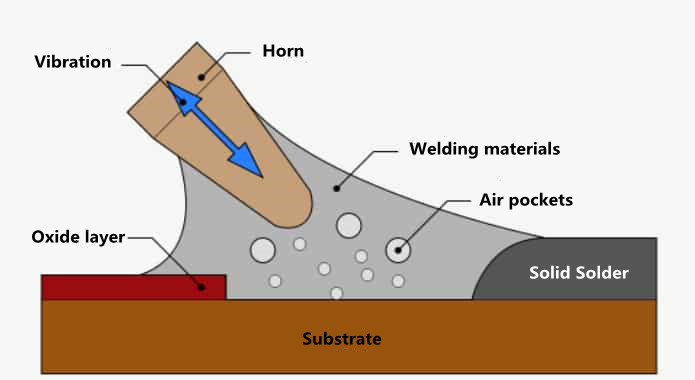

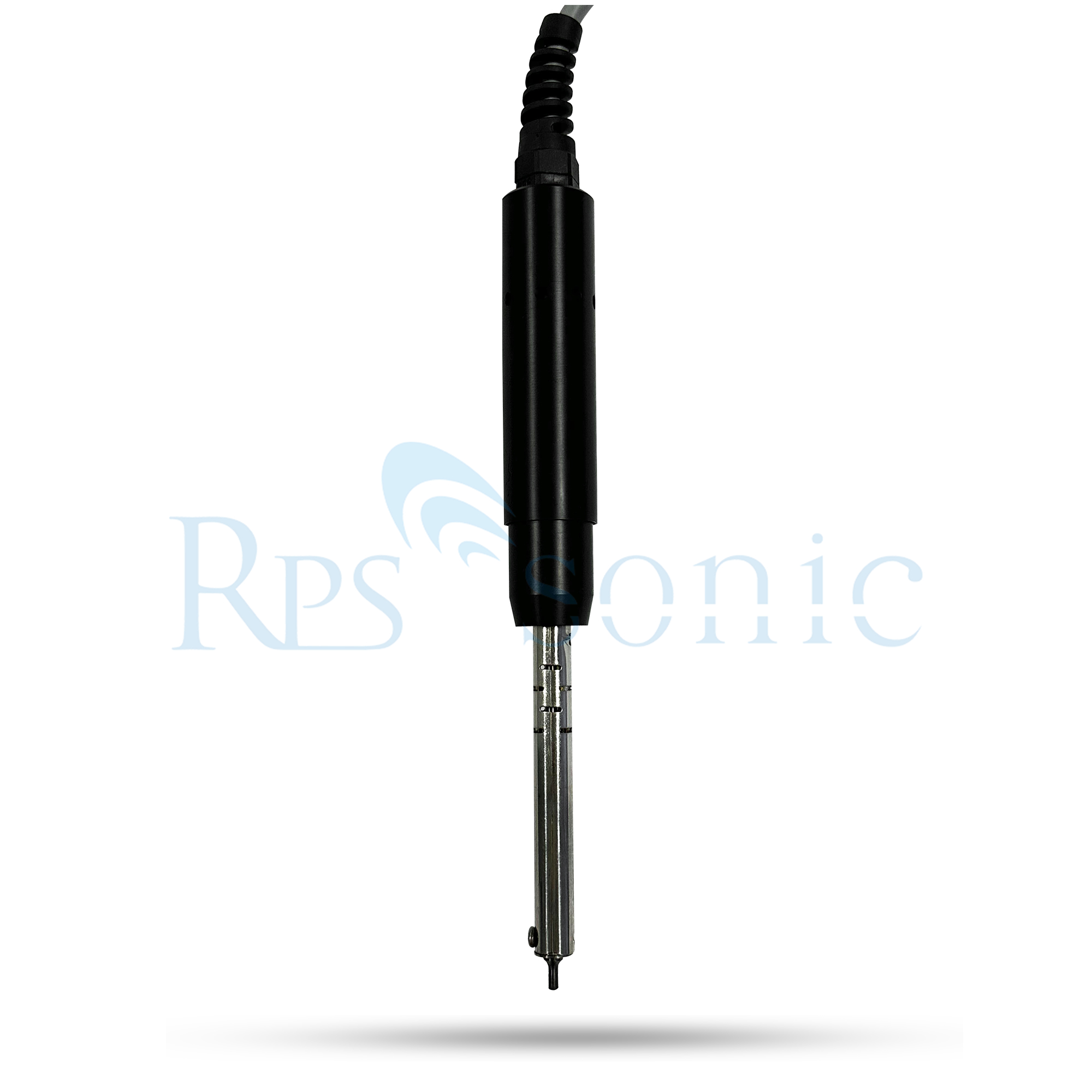

Ultrasonic Soldering Iron makes it possible to solder glass, ceramics and low-solderability metals, such as Al, Mo, stainless steel etc. This is an ultrasonic soldering device that produces high quality soldered joints. The soldering iron consists of a high performance sheath heater and transducer, supplying heat and ultrasonic oscillations to the tip. Using solder alloy, you can easily solder directly to metals, semiconductors, glass and ceramic substrates and other low solderability materials, such as Al, Mo, or stainless steel.
Features
• ECO friendly soldering solution: Flux and flux-cleaning process are not needed.
• Perfect Soldering: No Flux Soldering, highly Solid and Reliable Soldering Joint
• Production Cost Savings & High Productivity
• Support of New Application Development: Applying to Solar Cell Glass, Semiconductor, Ceramic Heater, Soldering of Dissimilar Materials (Al-Cu, Al-Glass, Al-Ceramic)
| Frequency | 60Khz | Power | 100w |
|---|---|---|---|
| Horn Material | Titanium | Temperature Range | 150 ~ 400 °C |
| Power Supply | 220V / 50-60 Hz | Size | 250(W) X 310(L) X 135(H) Mm |
| Iron Handle Length & Diameter | 190mm / Ø20 | ||
| High Light | Ultrasonic Soldering Equipment 60K,Ultrasonic Soldering Iron Equipment,60Khz Ultrasonic Soldering Machine | ||
60Khz Ultrasonic Soldering Iron equipment soldering glass and copper
Parameter
| Model No. | RPS-SI60 | |
| Ultrasonic Frequency | 60Khz | |
| Maximum Output | 100 Watt | |
| Temperature Range | 150 ~ 400 °C | |
| Power Supply | 220V / 50-60 Hz | |
| Ultrasonic Generator | Size | 250(W) x 310(L) x 135(H) mm |
| Weight | 5 Kg | |
| Feature | Ultrasonic Amplitude Adjustable | |
| Iron Handle Length & Diameter | 190mm / Ø20 | |
| Avail Soldering Matrial | ITO Glass, AL, Mo, Cu etc., | |
Description
Ultrasonic Soldering Iron makes it possible to solder glass, ceramics and low-solderability metals, such as Al, Mo, stainless steel etc. This is an ultrasonic soldering device that produces high quality soldered joints. The soldering iron consists of a high performance sheath heater and transducer, supplying heat and ultrasonic oscillations to the tip. Using solder alloy, you can easily solder directly to metals, semiconductors, glass and ceramic substrates and other low solderability materials, such as Al, Mo, or stainless steel.
Features
• ECO friendly soldering solution: Flux and flux-cleaning process are not needed.
• Perfect Soldering: No Flux Soldering, highly Solid and Reliable Soldering Joint
• Production Cost Savings & High Productivity
• Support of New Application Development: Applying to Solar Cell Glass, Semiconductor, Ceramic Heater, Soldering of Dissimilar Materials (Al-Cu, Al-Glass, Al-Ceramic)
