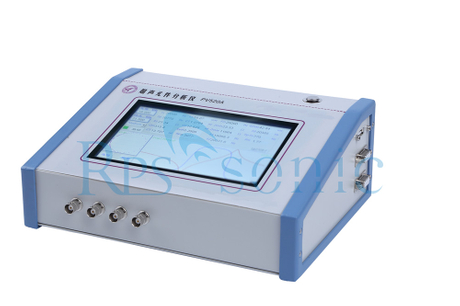

Ultrasonic Impedance Analyzer: A Core Device for Accurately Analyzing Acoustic Characteristics

The working logic of an ultrasonic impedance analyzer is based on the core process of "signal excitation - response acquisition - data calculation." Essentially, it applies a specific frequency electrical signal to the object under test, acquires the feedback electrical response signal, and then derives acoustic impedance parameters through algorithms. The specific process can be divided into three key steps:

Step 1: Signal Excitation. The internal signal generator produces a sinusoidal electrical signal with an adjustable frequency. This signal is amplified and applied to the ultrasonic transducer under test. Due to the piezoelectric effect (or magnetostriction effect) of the transducer, electrical energy is converted into ultrasonic vibrations. However, the transducer itself exhibits specific impedance characteristics, "impeding" the excitation signal.

Step 2: Response Acquisition. Simultaneously with the application of the excitation signal, the device's signal acquisition module acquires the current signal flowing through the transducer and the voltage signal across the transducer. These two signals contain core information about the transducer's impedance characteristics—the ratio of voltage to current is the transducer's impedance (Z=U/I), which can be decomposed into resistance (real part) and reactance (imaginary part), corresponding to energy consumption and storage, respectively.

Step 3:Is data processing and analysis. The collected voltage and current signals are transmitted to the device's core processor. The processor uses algorithms such as Fourier transform to convert the time-domain signals into frequency-domain signals, thereby obtaining the transducer's impedance parameters at different frequencies. Simultaneously, combined with preset parameters such as the transducer's geometric dimensions and material properties, the device can further derive its key acoustic parameters such as acoustic impedance and mechanical impedance, and present them intuitively to the user through a display screen in the form of curves and numerical values.

The core applications of ultrasonic impedance analyzers revolve around the research, development, production, and testing of ultrasonic transducers, as well as the analysis of acoustic material properties, specifically covering four major areas:

1. Ultrasonic Transducer Research and Development: Accurately measuring impedance characteristics during R&D to determine key parameters such as resonant frequency and optimize design; screening defective products through parameter comparison during production to ensure quality consistency (e.g., medical ultrasound probes, industrial flaw detection probes).

2. Acoustic Material Property Testing: Measuring the reflection/transmission characteristics of materials to ultrasonic waves, deriving parameters such as acoustic impedance and attenuation coefficient, supporting material selection and R&D (e.g., automotive sound insulation materials, ultrasonic coupling agents).

3. Industrial Ultrasonic Equipment Commissioning and Maintenance: Measuring system impedance characteristics during commissioning to guide parameter adjustments for impedance matching; regularly checking transducer impedance during maintenance to detect aging and damage problems early.

4. Scientific Research and Academic Research: Providing data support for fields such as acoustics, materials science, and biomedical engineering (e.g., research on the acoustic properties of biological tissues, verification of novel acoustic metamaterials).
