| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | Rps-sonic |
| Certification | CE |
| Model Number | RPS-LP20 |
| Minimum Order Quantity | 1pcs |
| Price | negotiable |
| Packaging Details | CARTON |
| Delivery Time | 1DAYS |
| Payment Terms | T/T |
| Supply Ability | 200PCS/MONTH |

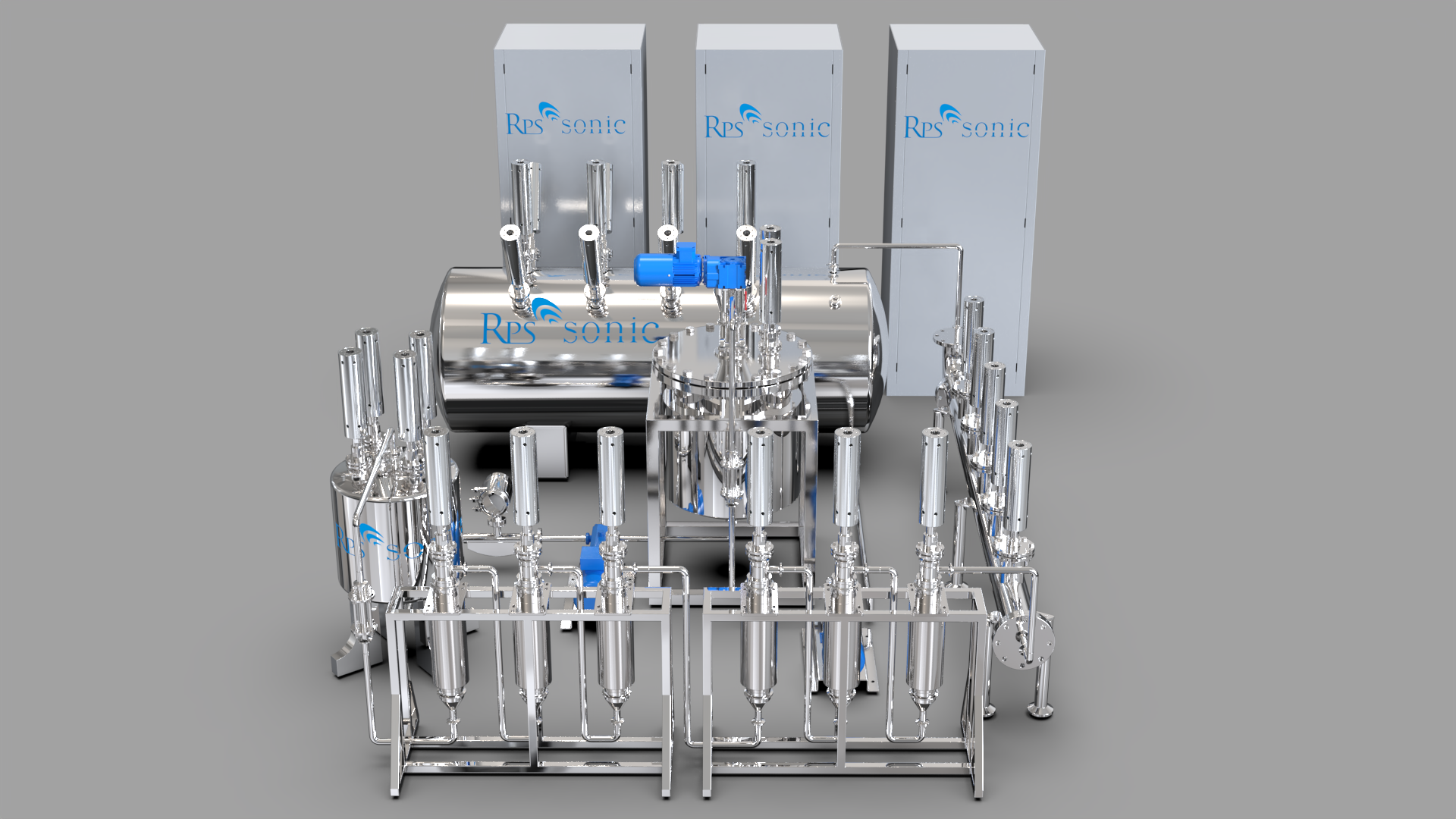

20Khz Ultrasonic homogenizer for drug extraction with titanium horn
Parameter
| Model | SONO20-1000 | SONO20-2000 | SONO15-3000 | SONO20-3000 |
| Frequency | 20±0.5 KHz | 20±0.5 KHz | 15±0.5 KHz | 20±0.5 KHz |
| Power | 1000 W | 2000 W | 3000 W | 3000 W |
| Voltage | 220/110V | 220/110V | 220/110V | 220/110V |
| Temperature | 300 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
| Pressure | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | 20 W/cm² | 40 W/cm² | 60 W/cm² | 60 W/cm² |
| Max Capacity | 10 L/Min | 15 L/Min | 20 L/Min | 20 L/Min |
Description
Ultrasonic drug extraction is a technique that uses ultrasonic waves to enhance the extraction of bioactive compounds or drugs from natural sources, such as plants, microorganisms, or tissues. It is highly efficient, environmentally friendly, and widely applied in pharmaceutical, nutraceutical, and herbal industries.
Ultrasonic extraction is mainly suitable for various processes such as normal pressure and normal temperature ultrasonic extraction, Soxhlet extraction, dynamic heat reflux extraction, plant essential oil extraction, and vacuum concentration of extracts in the industries of traditional Chinese medicine, health care products, biopharmaceuticals, cosmetics, and food. Ultrasonic Chinese medicine extraction/extraction equipment has a single extraction rate of over 95%. Wide applicability and high cost performance. It is very suitable for multi-variety, small-batch trials and mass production use in universities, research institutes, laboratories of enterprises and institutions, and research and development departments of pharmaceutical factories.
Performance characteristics
1. Typical applications include homogenization, emulsification, dispersion, solution
Poly and wet grinding (particle size reduction), cell breakage
Fragmentation and disintegration, extraction, degassing and sonochemical processes
2. The newly designed display screen can be easily
Observe the actual operating frequency and perform work
Rate/amplitude adjustment
3. Automatic frequency tracking to ensure always in
Best working condition
4. Automatic matching and tracking to ensure that the frequency (power) is in the best working condition
Pharmaceuticals: Extraction of active ingredients for drug formulation, such as alkaloids, glycosides, and phenolics.
Herbal Medicine: Isolating compounds from plants for herbal supplements or traditional medicine.
Nutraceuticals: Extracting bioactive compounds (e.g., antioxidants, vitamins) from fruits, seeds, and other sources.
Cannabis Industry: Extraction of cannabinoids (e.g., CBD, THC) for medical and recreational products.
Microbiology: Recovering drugs from microbial fermentation (e.g., antibiotics from fungi or bacteria).
\
