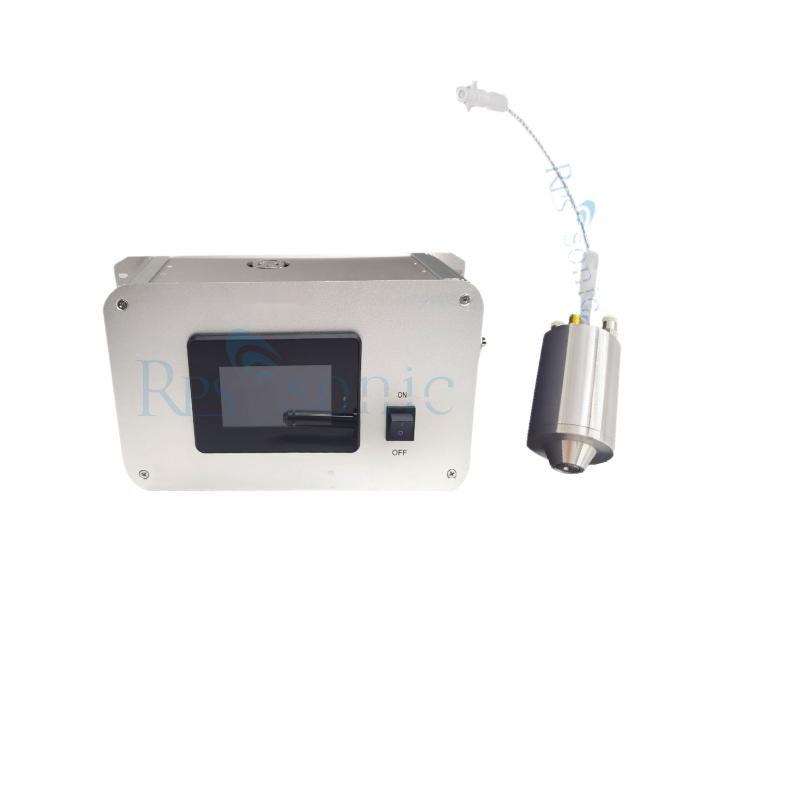

Ultrasonic spray technology utilizes high-frequency ultrasonic vibrations to produce a fine spray or mist of liquid. The process involves several key steps:
Ultrasonic Transducer: An ultrasonic spray system consists of an ultrasonic transducer or a set of piezoelectric ceramics. When an electrical signal is applied to the transducer, it generates high-frequency vibrations, typically in the range of 1 to 10 megahertz (MHz).
Liquid Dispersion: The liquid to be sprayed is supplied to the ultrasonic spray system. It can be stored in a reservoir or delivered through a pump or other feeding mechanism. The liquid is directed towards the ultrasonic transducer.
Ultrasonic Vibration Transfer: The ultrasonic vibrations generated by the transducer are transferred to a metal diaphragm or horn. This diaphragm or horn is in contact with the liquid, allowing the vibrations to propagate into the liquid.
Cavitation and Atomization: As the ultrasonic vibrations pass through the liquid, they create alternating pressure waves. These pressure waves create regions of compression and rarefaction within the liquid, leading to a phenomenon called cavitation.
Liquid Breakup: Cavitation causes the formation and rapid growth of microscopic bubbles within the liquid. As the bubbles reach a certain size, the high-pressure zones surrounding them collapse, resulting in a violent release of energy. This energy release leads to the breakup of the liquid into small droplets or particles.
Spray Formation: The breakup of the liquid into droplets or particles forms a spray or mist. The size and distribution of the droplets or particles can be controlled by adjusting the frequency and intensity of the ultrasonic vibrations, as well as the liquid flow rate.
Spray Ejection: The spray or mist is ejected from the ultrasonic spray nozzle. The nozzle design and configuration determine the spraying pattern, angle, and coverage area. The fine droplets or particles can be directed towards a target surface or dispersed into the surrounding environment.
Ultrasonic spray technology offers several advantages, including precise control over droplet size, uniform spray coverage, and efficient use of liquid. It is commonly used in various applications such as coating, humidification, cooling, disinfection, and drug delivery, among others. The ability to produce a fine and controlled spray makes it suitable for applications where a uniform and targeted distribution of liquid is required.
Key advantages of ultrasonic spray nozzles include:
Fine Particle Size: Ultrasonic atomizers can produce droplets or particles with a very small size distribution, typically in the range of 1 to 50 micrometers. The fine particle size allows for better coverage and distribution of the sprayed liquid, making it ideal for applications where a uniform coating or mist is required.
Efficient and Controlled Spray: Ultrasonic spray nozzles offer precise control over the spray pattern, flow rate, and droplet size. This level of control allows for efficient material usage and reduces waste.
Non-Clogging: The ultrasonic vibrations help prevent clogging of the nozzle, as they can dislodge particles or debris that may accumulate. This is particularly beneficial when spraying liquids that contain solids or viscous substances.
Gentle Spray: The gentle atomization process of ultrasonic spray nozzles is suitable for sensitive materials or delicate surfaces. It minimizes the risk of damage or alteration of the sprayed substance.
Versatility: Ultrasonic spray nozzles can be used with a wide range of liquids, including water-based solutions, suspensions, emulsions, and even high-viscosity fluids. They find applications in various industries, such as coating surfaces, applying lubricants, humidifying environments, and delivering pharmaceutical formulations.
