| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-K50 |
| Minimum Order Quantity | 1pc |
| Packaging Details | carton |
| Supply Ability | 200pcs/month |
50Khz Wide mist Ultrasonic Spray Nozzle for large area coating
Product description:
The working principle of ultrasonic spraying equipment is based on ultrasonic atomizing nozzle technology. It uses the energy of ultrasound to break up water or liquid to form tiny particles ranging from a few microns to more than 100 microns. Ultrasonic nozzles work by converting high-frequency sound waves into mechanical energy, which is transferred to the liquid to generate standing waves. When the liquid leaves the atomizing surface of the nozzle, it is broken into a fine mist of uniform micron-sized droplets, thus achieving atomization.
Tech. info:
| Atomized particles | 15-40um |
| Spraying width | 40-150mm |
| Spray flow | 0.5-20ML/min |
| Spray height | 50-150mm |
| Suitable for liquid viscosity | <30cps |
| Suspension particle size | <20um |
| Diversion air pressure | <0.05mpa |
Features:
1. High precision and high uniformity: Ultrasonic spraying equipment can achieve better uniformity and higher precision, and is suitable for high-uniformity submicron and nanoscale thin film coating.
2. Save paint: The ultrasonic nozzle can atomize without air pressure assistance, which significantly reduces paint splashing during the spraying process and improves paint utilization.
3. High efficiency and energy saving: The liquid is transferred to the spray head through its own gravity or a low-pressure pump and achieves continuous or intermittent atomization. It has low energy consumption, simple equipment and low failure rate.
4. High controllability: Ultrasonic spray equipment is easy to adjust and control, and parameters such as spray volume, spray angle, and spray distance can be adjusted according to actual needs.
5. Widely used: This equipment is mainly used in fuel cells, thin film photovoltaic cells, thin film solar coatings, perovskite solar cells, solar cells, graphene coatings, silicon photovoltaic cells, glass coatings, electronic circuits and other industries.
Application:
| Electronics: | Sensors, PCB Fluxing, Display, Semiconductors etc. |
| Industrial: | Glass, Fabrics, plastic,etc. |
| Medical: | Medical Textile, Diagnostic Device etc. |
| Energy: | Fuel Cell, Solar Cell, etc. |

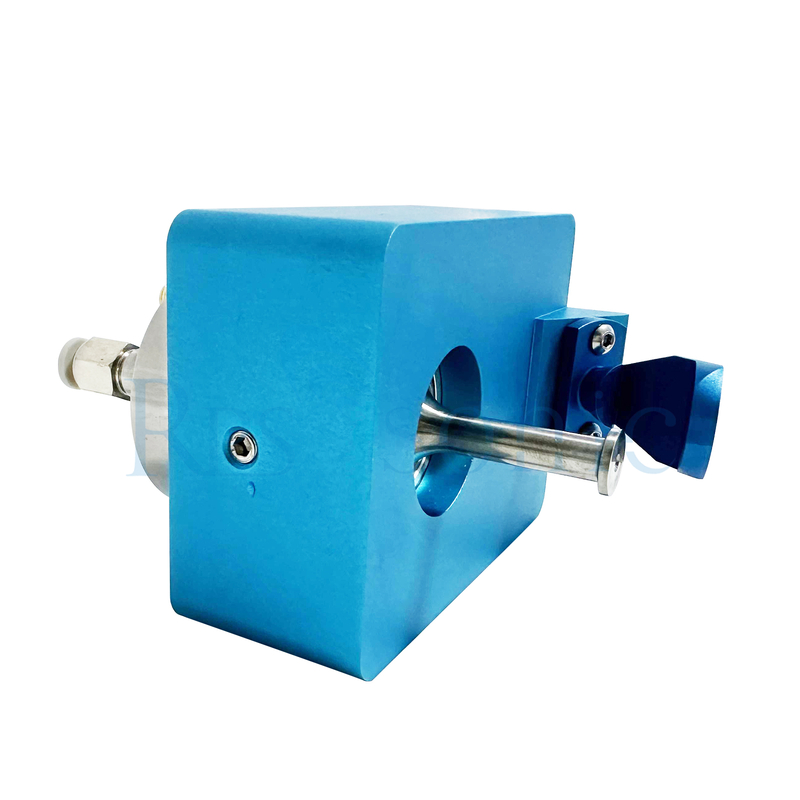

Product pictures:
