| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-SONO28-500 |
| Minimum Order Quantity | 1set |
| Packaging Details | carton box |
| Payment Terms | T/T |
| Supply Ability | 200pcs |
New Designed 28K 500W Ultrasonic Mushroom Cell Dispersion And Extraction Equipment
Optimize ultrasonic extraction of protein from Agaricus bisporus waste stipe:
To promote the utilization of Agaricus bisporus waste stipe and increase its economic value, protein were extracted from Agaricus bisporus waste stipe by ultrasonic extraction. The effect of ultrasonic power, ratio of liquid to solid, ultrasonic time, pH value on the yield of protein were investigated by single factor experiments, and optimized the parameters by orthogonal experiment use ultrasonic power, ratio of liquid to solid and pH value as factors. The results showed that as the ultrasonic time was 1 min, the parameters optimized by orthogonal experiment analysis were as follows: ultrasonic power 150 W, liquid-solid ratio 35:1 mL/g, pH value 10.0. Under these optimum conditions, the yield of protein extract from Agaricus bisporus waste stipe can be up to 6.87 g/100 g, which was 3.5 times higher than traditional alkali extraction, and shorten 60 times than traditional alkali extraction in time. As a simple, effective, fast, safe and no adverse reaction, ultrasonic extraction is effective extraction method, and can be used to extract all functional components.
An ultrasonic cell disruptor (or ultrasonic homogenizer) is a device used in biological, chemical, and industrial laboratories to break open cells and disrupt their structure using high-frequency sound waves. The process involves creating ultrasonic vibrations that induce cavitation in liquids, leading to mechanical shearing forces that break cells apart and release their contents.
Parameter:
| Model | SONOL20-300 | SONOL20-500 | SONOL28-300 | SONOL40-100 |
| Frequency | 20±0.5 KHz | 20±0.5 KHz | 28±0.5 KHz | 40±0.5 KHz |
| Power | 300 W | 500 W | 300 W, 500W | 100 W |
| Voltage | 220/110V | 220/110V | 220/110V | 220/110V |
| Temperature | 300 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
| Pressure | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
| Max Capacity | 2 L/Min | 5 L/Min | 1L/Min | 0.5 L/Min |
| Tip Head Material | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Biology and Biochemistry:
Cell lysis for DNA, RNA, or protein extraction.
Homogenizing tissue samples.
Pharmaceuticals:
Preparing emulsions and dispersions.
Particle size reduction.
Nanotechnology:
Dispersing nanoparticles in suspensions.
Breaking down aggregates.
Chemical Synthesis:
Enhancing reactions that benefit from high-energy environments.
Food and Beverage:
Emulsification and mixing.
Drawing:

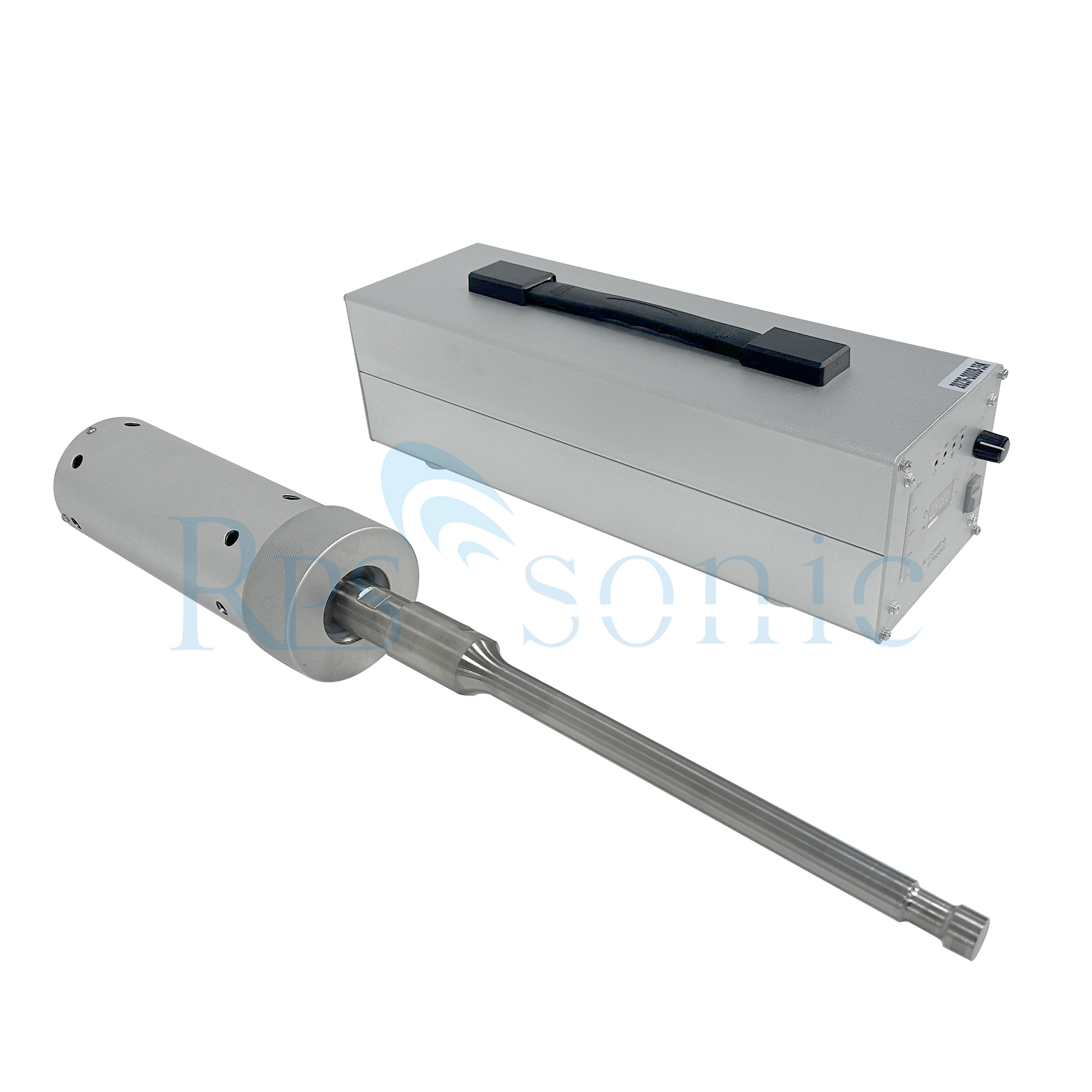

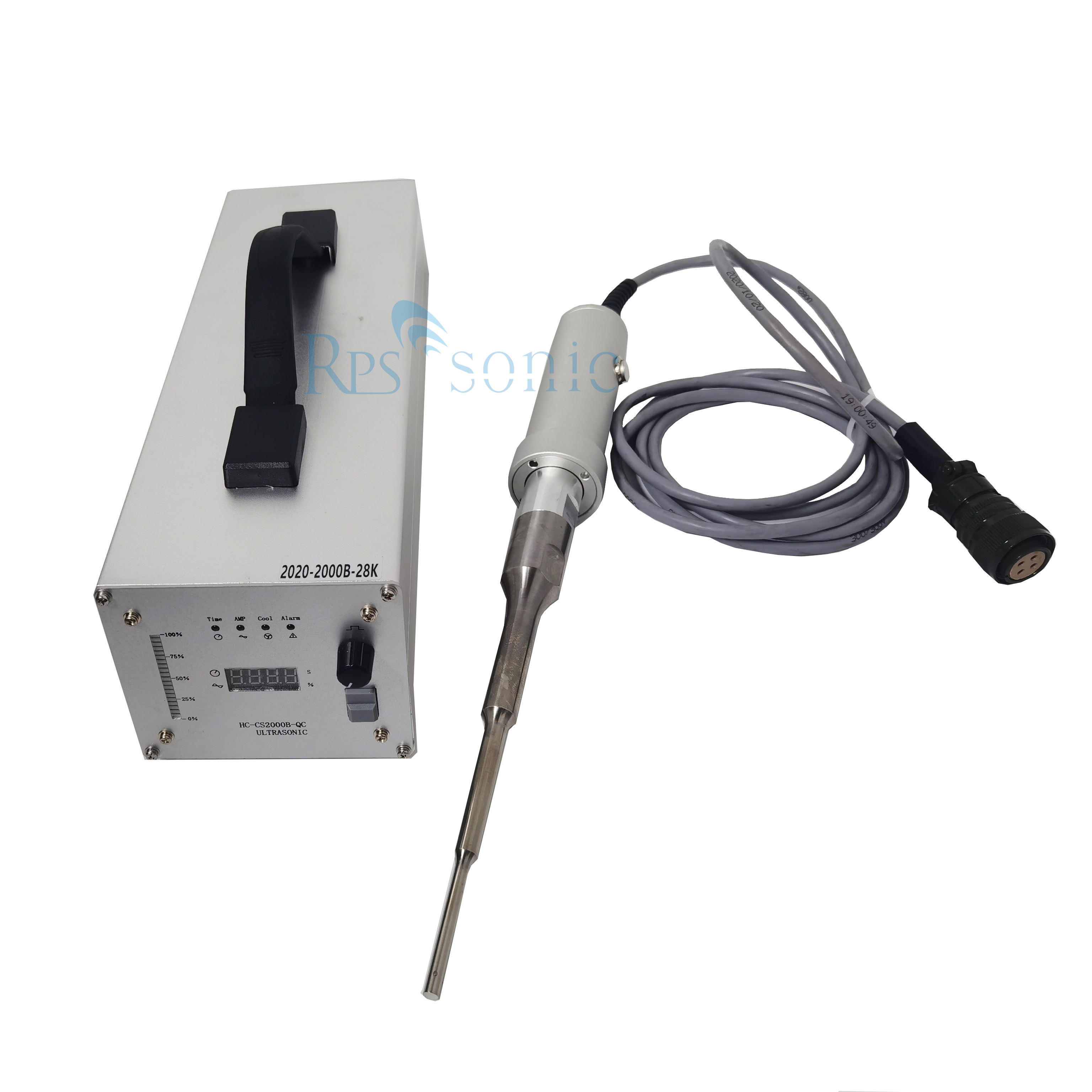

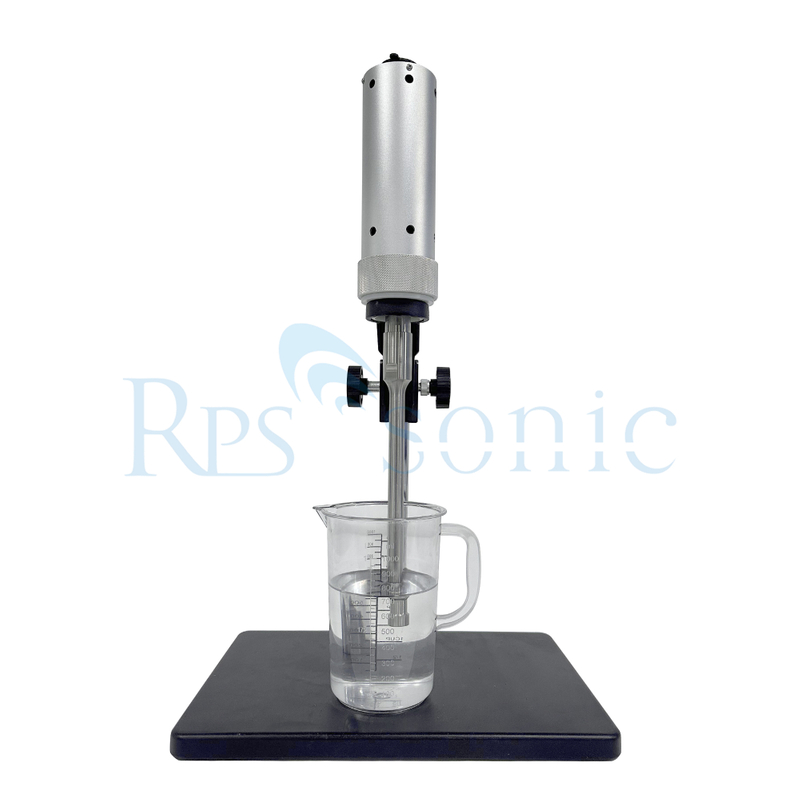

Product pictures.: ( Digital generators optional : 2000E economical, 2000C with PLC )
New Designed 28K 500W Ultrasonic Mushroom Cell Dispersion And Extraction Equipment
Optimize ultrasonic extraction of protein from Agaricus bisporus waste stipe:
To promote the utilization of Agaricus bisporus waste stipe and increase its economic value, protein were extracted from Agaricus bisporus waste stipe by ultrasonic extraction. The effect of ultrasonic power, ratio of liquid to solid, ultrasonic time, pH value on the yield of protein were investigated by single factor experiments, and optimized the parameters by orthogonal experiment use ultrasonic power, ratio of liquid to solid and pH value as factors. The results showed that as the ultrasonic time was 1 min, the parameters optimized by orthogonal experiment analysis were as follows: ultrasonic power 150 W, liquid-solid ratio 35:1 mL/g, pH value 10.0. Under these optimum conditions, the yield of protein extract from Agaricus bisporus waste stipe can be up to 6.87 g/100 g, which was 3.5 times higher than traditional alkali extraction, and shorten 60 times than traditional alkali extraction in time. As a simple, effective, fast, safe and no adverse reaction, ultrasonic extraction is effective extraction method, and can be used to extract all functional components.
An ultrasonic cell disruptor (or ultrasonic homogenizer) is a device used in biological, chemical, and industrial laboratories to break open cells and disrupt their structure using high-frequency sound waves. The process involves creating ultrasonic vibrations that induce cavitation in liquids, leading to mechanical shearing forces that break cells apart and release their contents.
Parameter:
| Model | SONOL20-300 | SONOL20-500 | SONOL28-300 | SONOL40-100 |
| Frequency | 20±0.5 KHz | 20±0.5 KHz | 28±0.5 KHz | 40±0.5 KHz |
| Power | 300 W | 500 W | 300 W, 500W | 100 W |
| Voltage | 220/110V | 220/110V | 220/110V | 220/110V |
| Temperature | 300 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
| Pressure | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
| Max Capacity | 2 L/Min | 5 L/Min | 1L/Min | 0.5 L/Min |
| Tip Head Material | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Biology and Biochemistry:
Cell lysis for DNA, RNA, or protein extraction.
Homogenizing tissue samples.
Pharmaceuticals:
Preparing emulsions and dispersions.
Particle size reduction.
Nanotechnology:
Dispersing nanoparticles in suspensions.
Breaking down aggregates.
Chemical Synthesis:
Enhancing reactions that benefit from high-energy environments.
Food and Beverage:
Emulsification and mixing.
Drawing:
Product pictures.: ( Digital generators optional : 2000E economical, 2000C with PLC )
