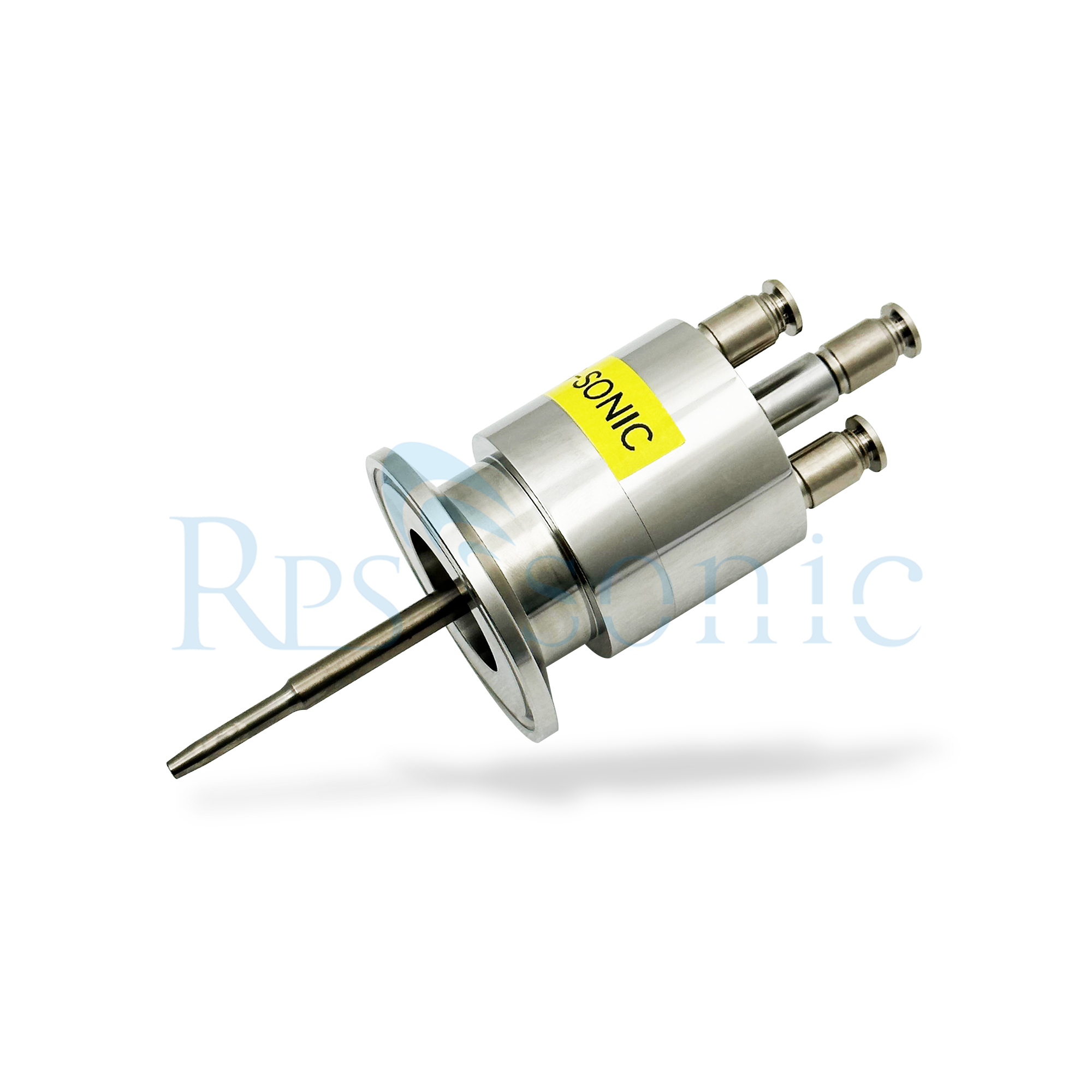

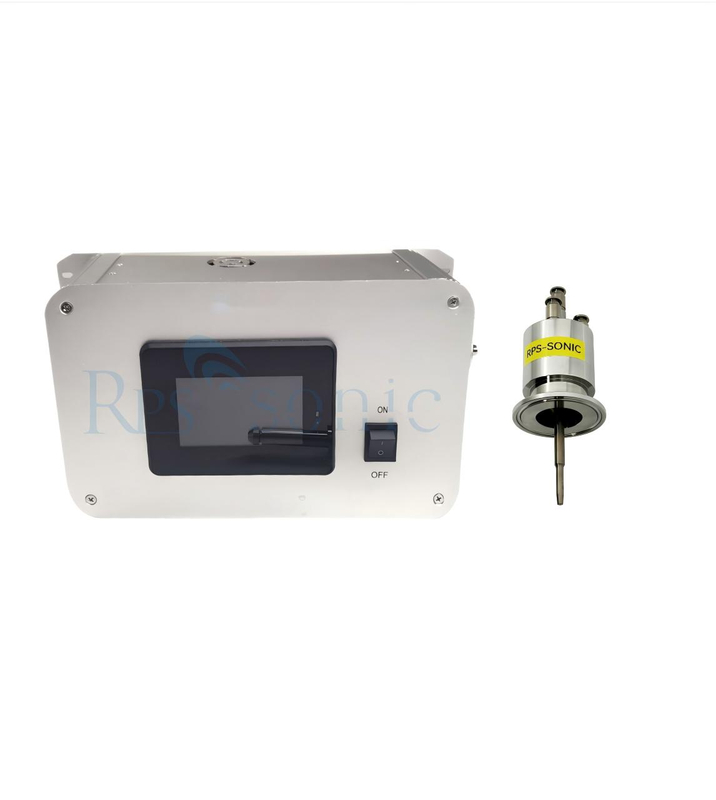

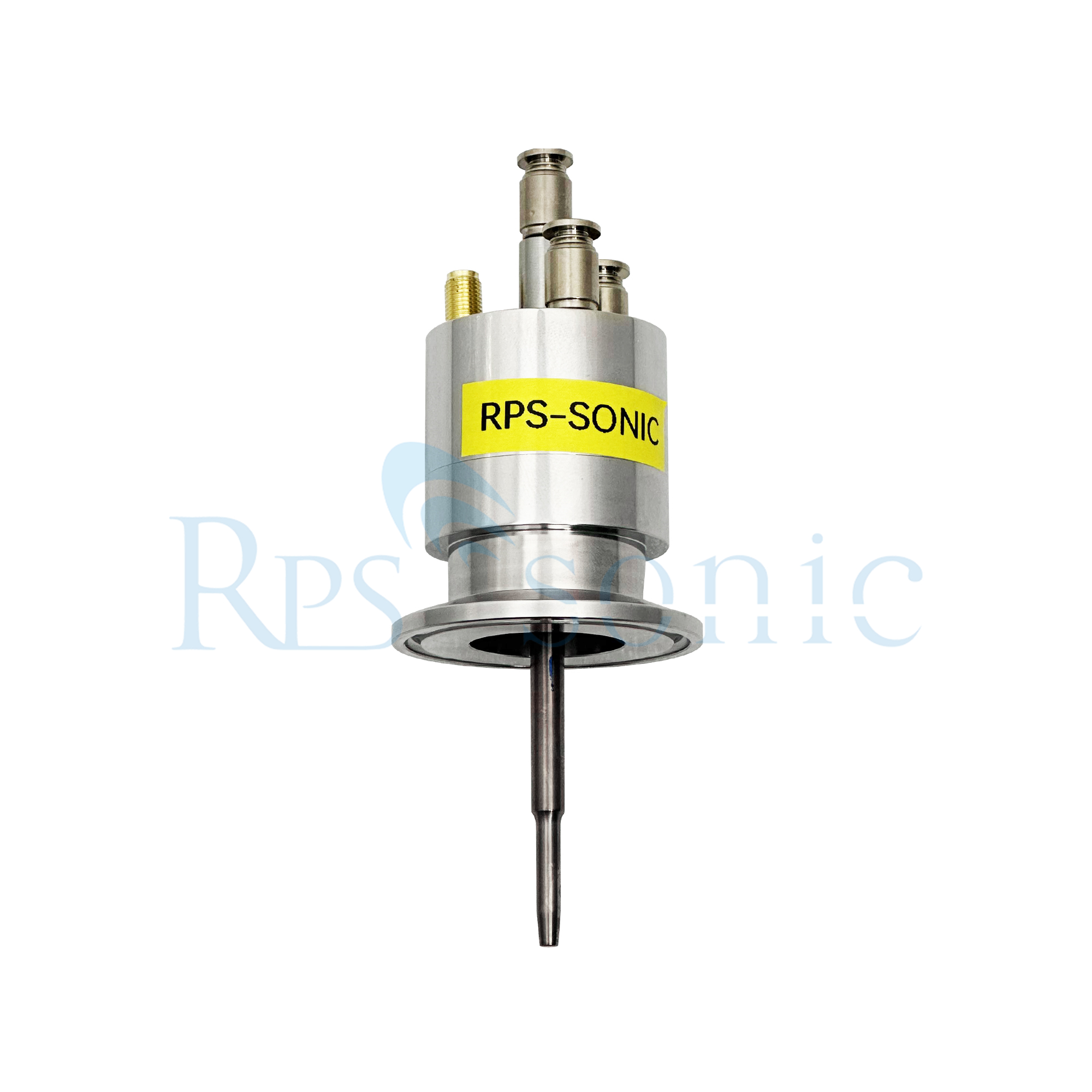

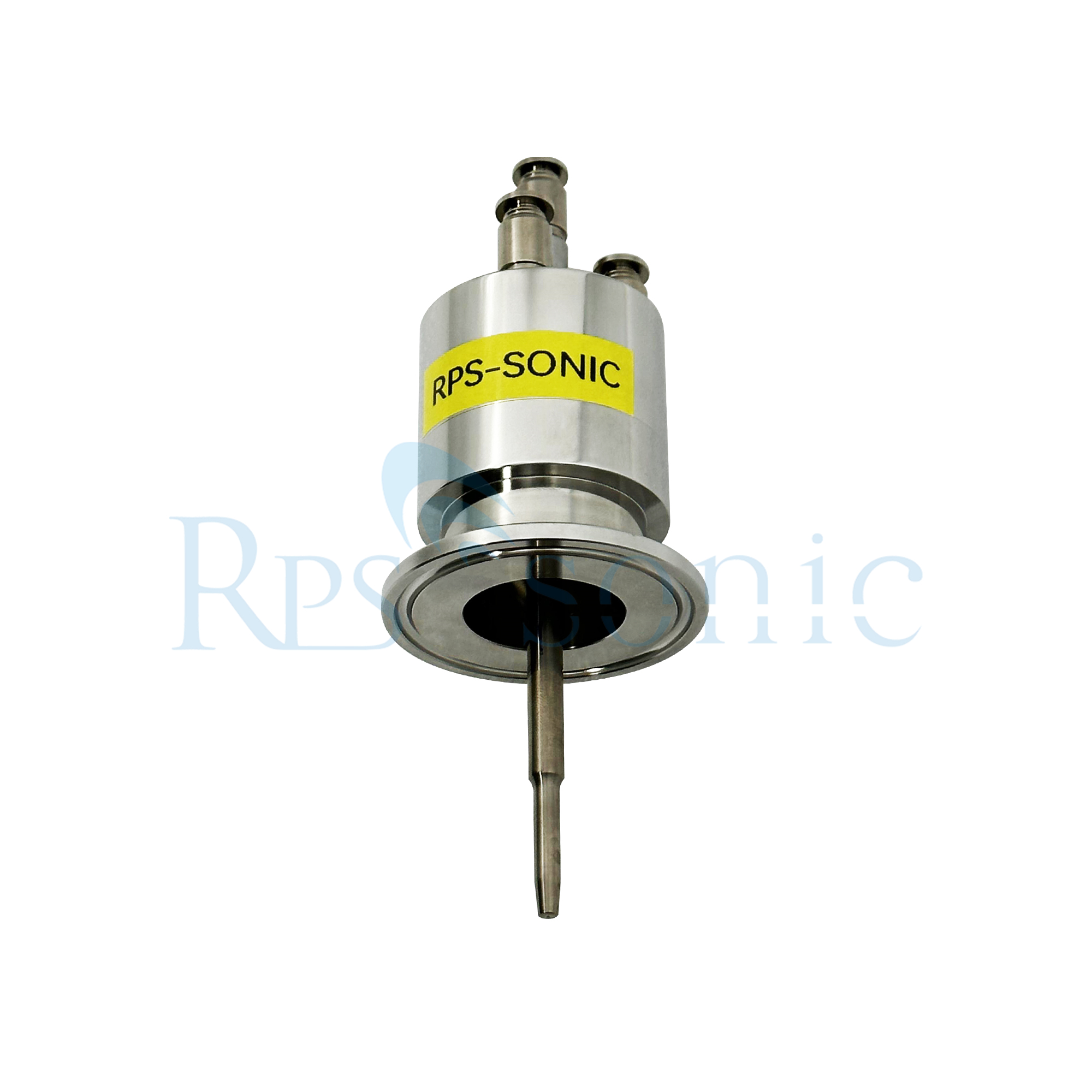

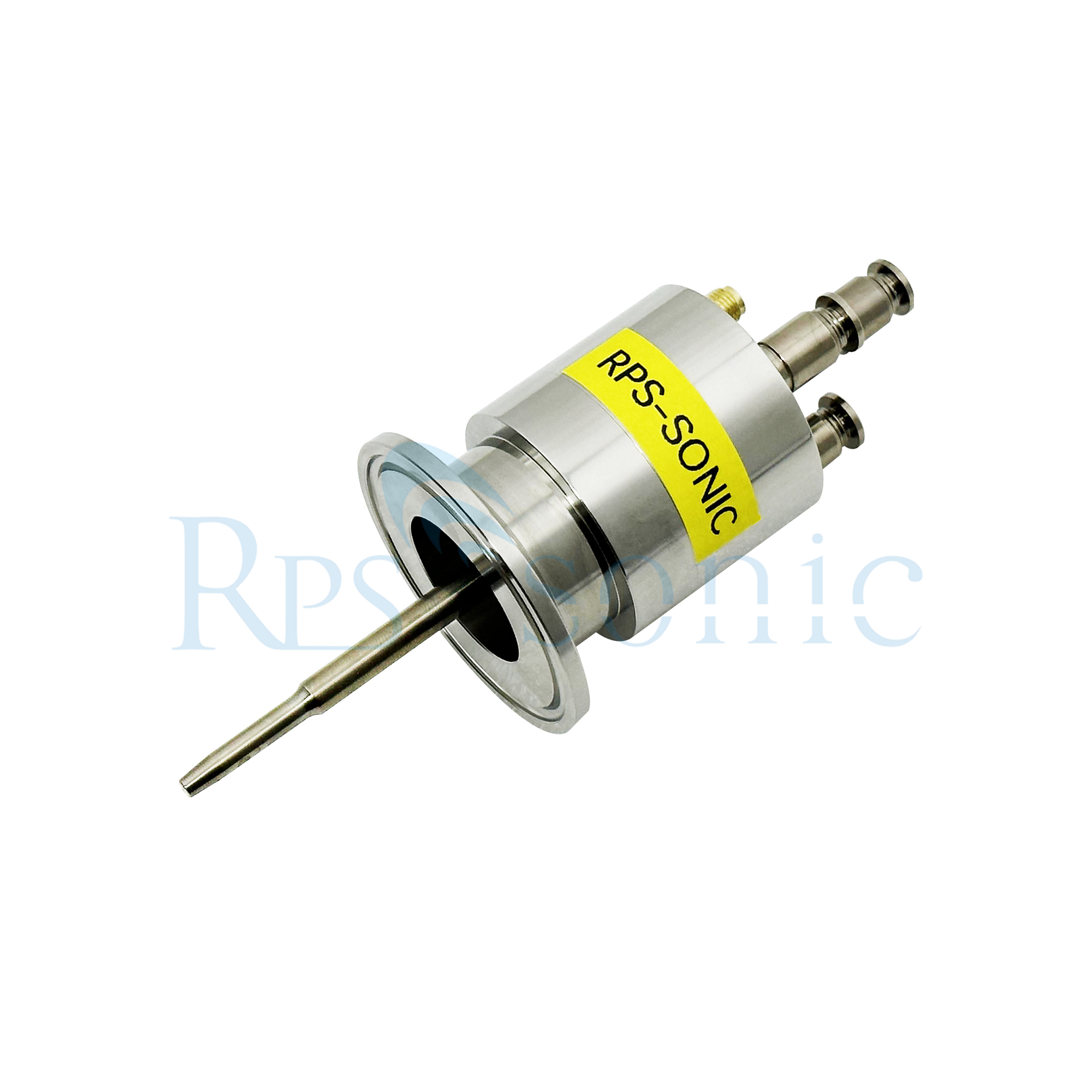

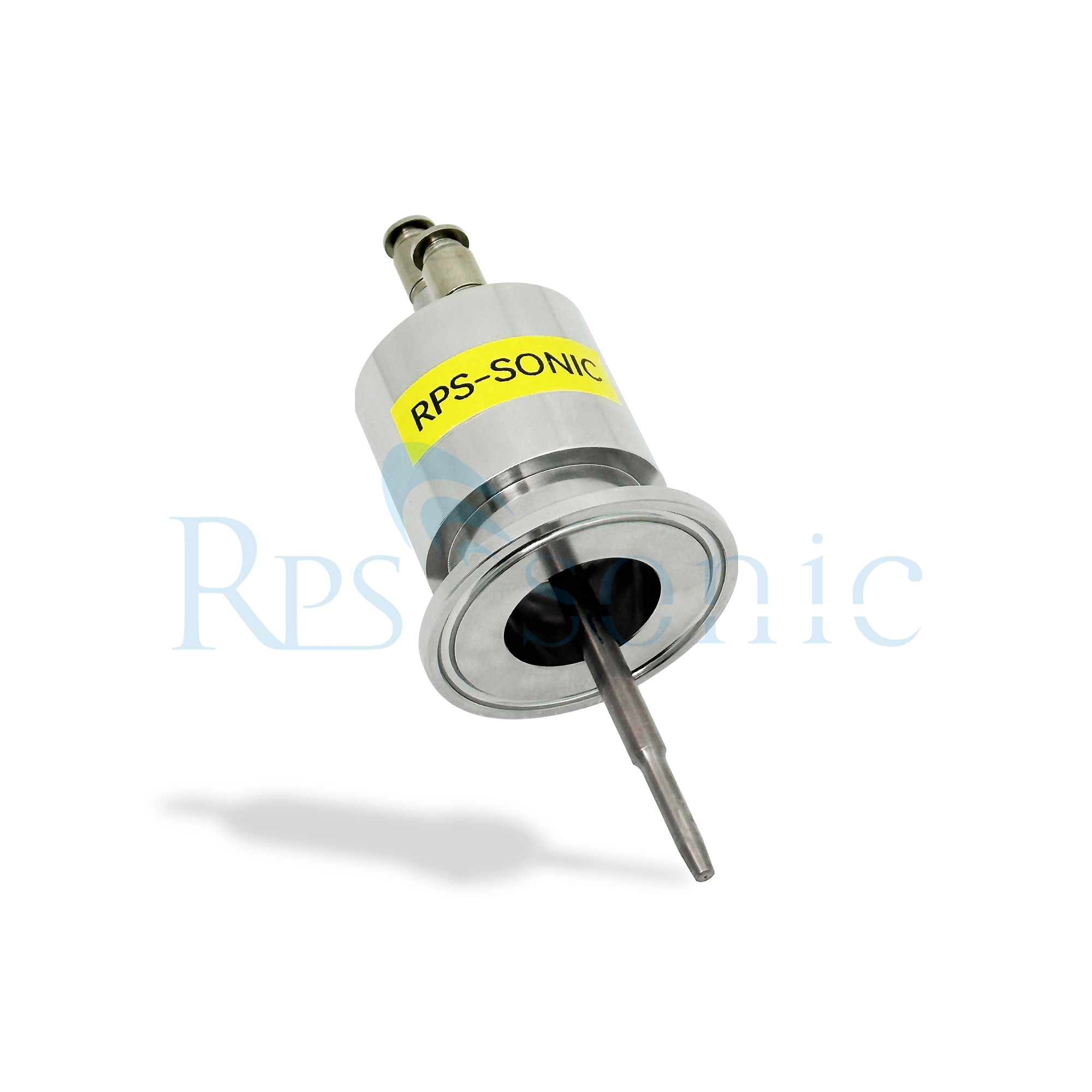

60kHz Vacuum Ultrasonic Spray Nozzle for Organic Silane Spraying
Product description:
RPS-SONIC 60kHz ultrasonic atomizing nozzle is a device that uses high-frequency ultrasonic vibration to convert liquid into fine nano-level droplets. Its core principle is to convert electrical energy into 60kHz high-frequency mechanical vibration through a piezoelectric transducer, thereby generating capillary waves on the surface of the liquid, causing the liquid to be atomized into micron-sized particles. This nozzle is widely used in many fields such as industry, medical treatment, agriculture, and household use due to its high efficiency, uniformity, and low noise.
Tech. info:
| Atomized particles | 15-40um |
| Spraying width | 40-150mm |
| Spray flow | 0.5-20ML/min |
| Spray height | 50-150mm |
| Suitable for liquid viscosity | <30cps |
| Suspension particle size | <20um |
| Diversion air pressure | <0.05mpa |

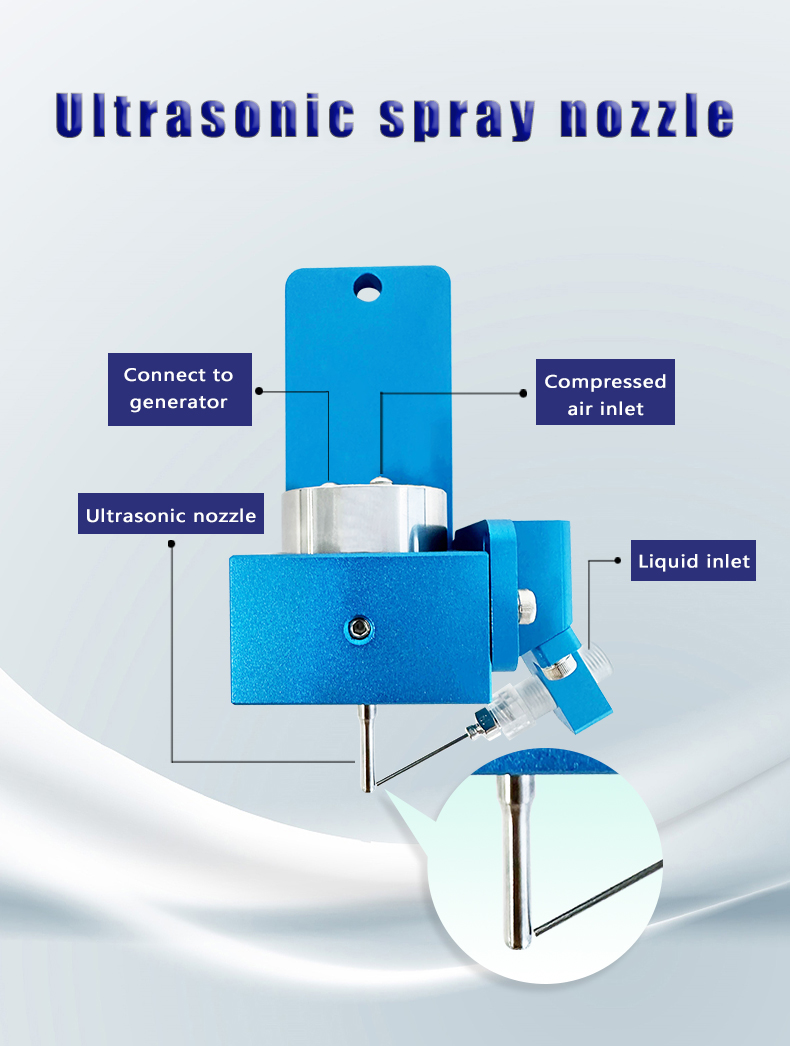

Working Principle
Piezoelectric effect: The piezoelectric ceramic inside the nozzle generates high-frequency vibration (60kHz) after being energized, converting electrical energy into mechanical energy.
Capillary wave formation: High-frequency vibration is transmitted to the surface of the liquid to form stable capillary waves.
Atomization process: Under the action of capillary waves, the liquid separates from the wave crest to form fine droplets (usually 1-10 microns in diameter)
Features:
Large width spray, spray width: 40-150mm
Uniform coating: uniformity > 95%
Saving raw materials: raw material utilization rate is over 90%, 4 times that of traditional air spray nozzle.
High control accuracy of coating thickness : 20 nm to tens of micron coatings can be precisely sprayed.
Available for intermittent or continuous spray
Non clogging
Anti-corrosion nozzle
Application:
| Electronics: | Sensors, PCB Fluxing, Display, Semiconductors etc. |
| Industrial: | Glass, Fabrics, plastic,etc. |
| Medical: | Medical Textile, Diagnostic Device etc. |
| Energy: | Fuel Cell, Solar Cell, etc. |
