| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | Rps-sonic |
| Certification | CE |
| Model Number | RPS-H20 |
| Minimum Order Quantity | 1pcs |
| Price | negotiable |
| Packaging Details | CARTON |
| Delivery Time | 1DAYS |
| Payment Terms | T/T |
| Supply Ability | 200PCS/MONTH |

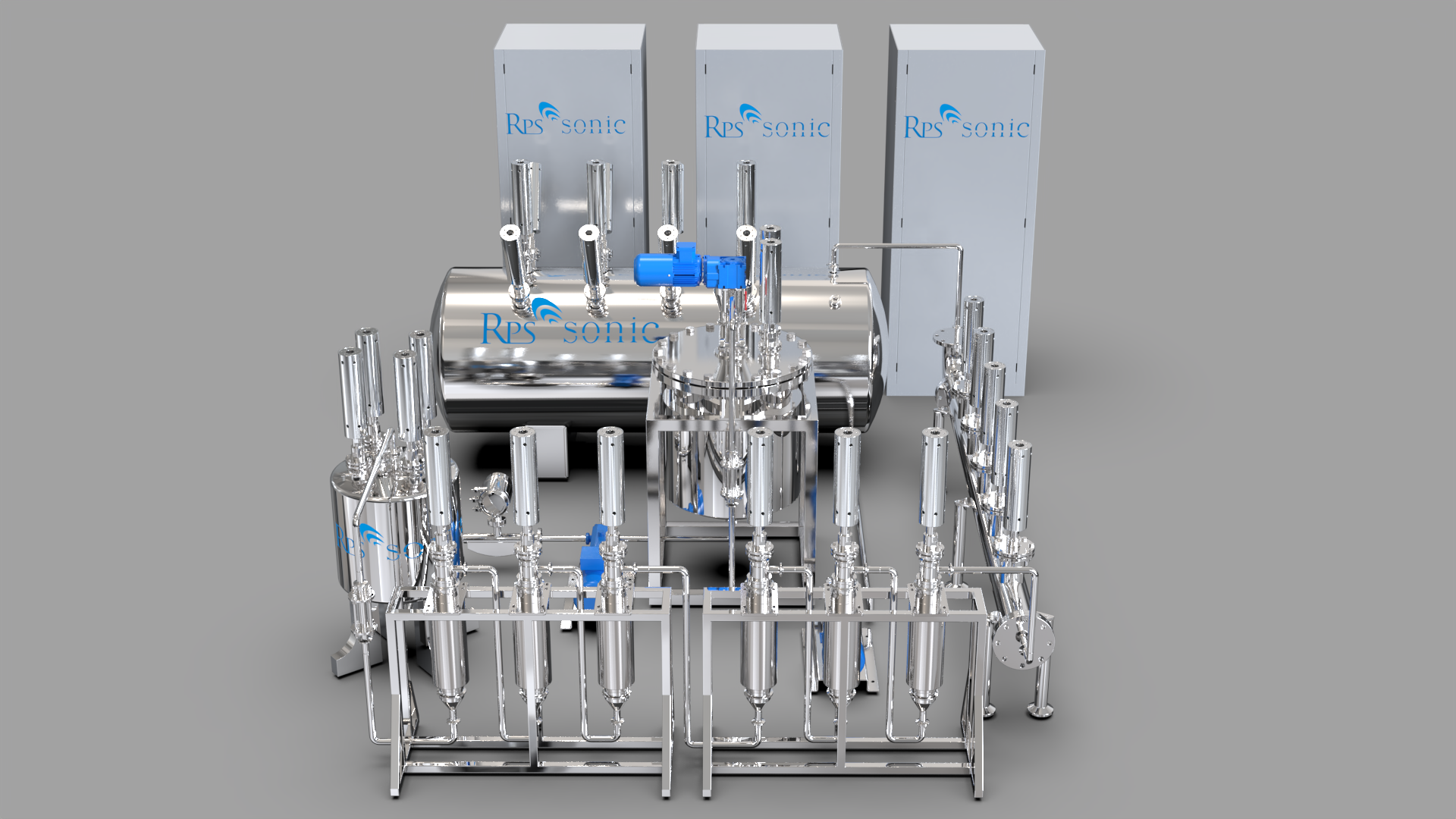

Titanium alloy Ultrasonic horn ultrasonic probe for ultrasonic homogenizer
Parameter
| Model | SONO20-1000 | SONO20-2000 | SONO15-3000 | SONO20-3000 |
| Frequency | 20±0.5 KHz | 20±0.5 KHz | 15±0.5 KHz | 20±0.5 KHz |
| Power | 1000 W | 2000 W | 3000 W | 3000 W |
| Voltage | 220/110V | 220/110V | 220/110V | 220/110V |
| Temperature | 300 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
| Pressure | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | 20 W/cm² | 40 W/cm² | 60 W/cm² | 60 W/cm² |
| Max Capacity | 10 L/Min | 15 L/Min | 20 L/Min | 20 L/Min |
Description
Ultrasonic drug extraction is a technique that uses ultrasonic waves to enhance the extraction of bioactive compounds or drugs from natural sources, such as plants, microorganisms, or tissues. It is highly efficient, environmentally friendly, and widely applied in pharmaceutical, nutraceutical, and herbal industries.
Application of Ultrasonic Waves: High-frequency sound waves (20–40 kHz) are introduced into a solvent containing the raw material (e.g., plant or tissue).
Cavitation: Ultrasonic waves create microbubbles that grow and collapse (a process called cavitation). This generates intense shear forces and localized high pressure and temperature.
Cell Disruption: The cavitation breaks the cell walls of the material, releasing intracellular compounds (e.g., alkaloids, flavonoids, terpenes).
Enhanced Solvent Penetration: Ultrasonication improves the mixing of the solvent with the material, enhancing mass transfer and extraction efficiency.
Faster Extraction: Significantly reduces extraction time compared to traditional methods like Soxhlet or maceration.
Higher Yield: Provides greater recovery of bioactive compounds.
Lower Solvent Use: Requires less solvent, making it more eco-friendly.
Preserves Activity: Operates at controlled temperatures, protecting heat-sensitive compounds.
Versatility: Works with various solvents, including water, alcohols, or green solvents.
