| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-W35 |
| Minimum Order Quantity | 1set |
| Price | $6500/set |
| Packaging Details | carton box |
| Payment Terms | T/T |
| Supply Ability | 200pcs |
| Item | Parameter |
| Frequency | 35Khz |
| Power | 800W |
| Ceramice chips | 4chips |
| Speed | 20m/min in max |
| Welding width | 15mm in max |
| Welding horn | 35Khz rotary horn |
| Welding type | Continues welding |
Working principle
Energy conversion: The ultrasonic generator converts electrical energy into high-frequency vibration waves, which are amplified in two stages through the horn and the tool head.
Thermoplastic materials: Thermoplastic chemical fiber fabrics (such as nylon, PVC, PS, PP non-woven fabrics, etc.) can be stitched (welded) and embossed under the action of ultrasound.

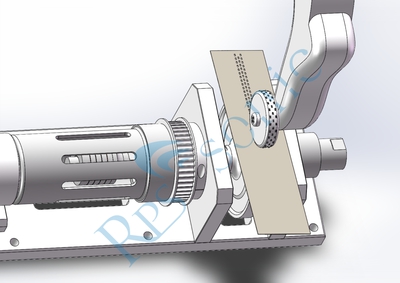

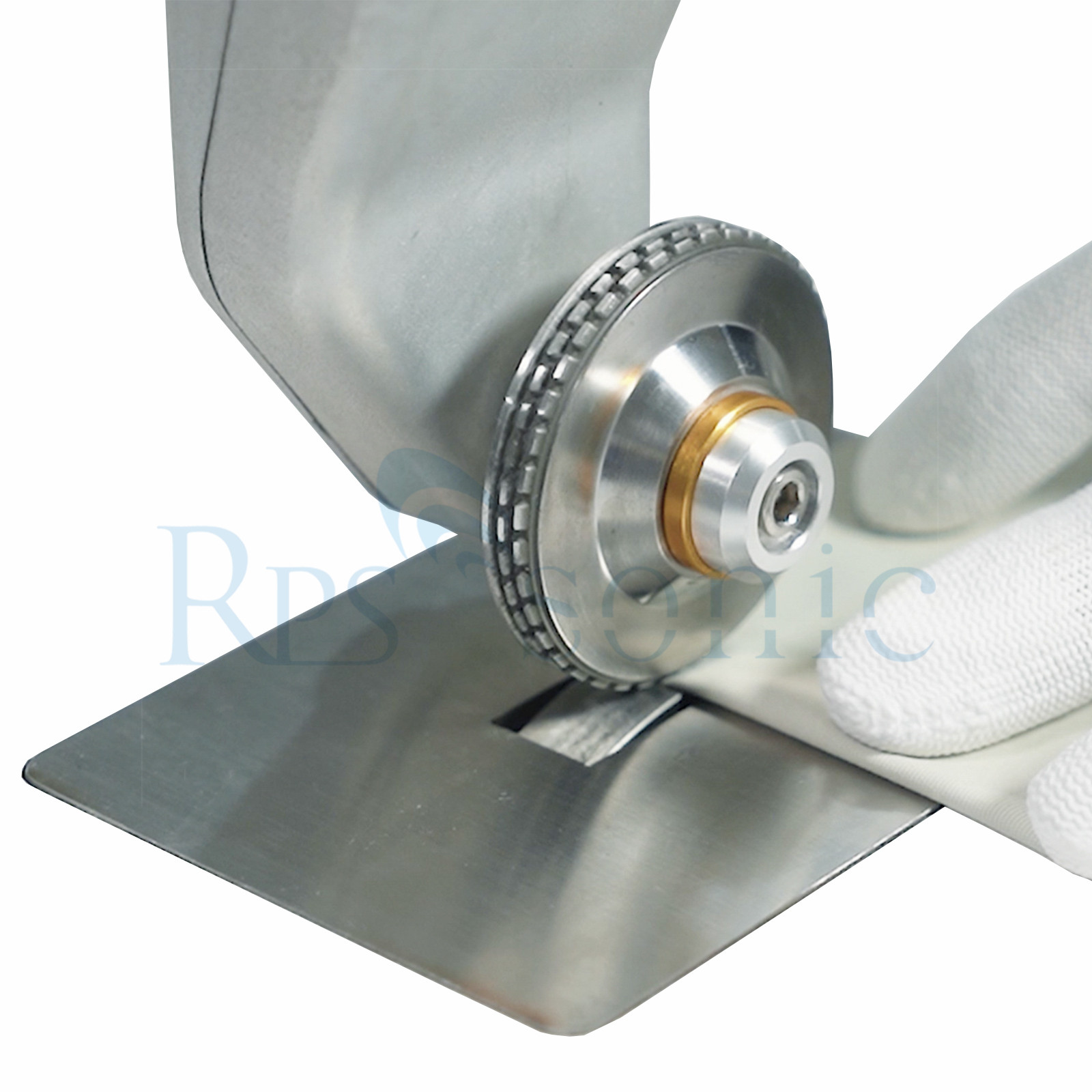

Stitching process: The flower wheel and the tool head rotate under pressure to perform ultrasonic cutting and welding to form lace or weld. When two pieces of chemical fiber fabrics are used, they can be welded under the action of ultrasound to form wireless stitching.
Advantages
High-efficiency and continuous operation: Ultrasonic lace machines can operate continuously at high speed and have high production efficiency.
High-quality products: It eliminates the troubles of traditional sewing machines and improves product quality and profits.
Versatility: In addition to sewing and embossing, it can also perform multiple operations such as trimming, hole splitting, hot stamping (printing), striping and forming.
Application fields
Ultrasonic lace machines are widely used in many fields, including medical equipment, electronic appliances, printing consumables, plastics, non-woven fabrics, packaging and auto parts. It provides high-quality ultrasonic plastic welding equipment and application solutions with strong stability.
| Item | Parameter |
| Frequency | 35Khz |
| Power | 800W |
| Ceramice chips | 4chips |
| Speed | 20m/min in max |
| Welding width | 15mm in max |
| Welding horn | 35Khz rotary horn |
| Welding type | Continues welding |
Working principle
Energy conversion: The ultrasonic generator converts electrical energy into high-frequency vibration waves, which are amplified in two stages through the horn and the tool head.
Thermoplastic materials: Thermoplastic chemical fiber fabrics (such as nylon, PVC, PS, PP non-woven fabrics, etc.) can be stitched (welded) and embossed under the action of ultrasound.
Stitching process: The flower wheel and the tool head rotate under pressure to perform ultrasonic cutting and welding to form lace or weld. When two pieces of chemical fiber fabrics are used, they can be welded under the action of ultrasound to form wireless stitching.
Advantages
High-efficiency and continuous operation: Ultrasonic lace machines can operate continuously at high speed and have high production efficiency.
High-quality products: It eliminates the troubles of traditional sewing machines and improves product quality and profits.
Versatility: In addition to sewing and embossing, it can also perform multiple operations such as trimming, hole splitting, hot stamping (printing), striping and forming.
Application fields
Ultrasonic lace machines are widely used in many fields, including medical equipment, electronic appliances, printing consumables, plastics, non-woven fabrics, packaging and auto parts. It provides high-quality ultrasonic plastic welding equipment and application solutions with strong stability.
