| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | CHINA |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-R35 |
| Minimum Order Quantity | 1 |
| Price | to be negotiated |
| Packaging Details | carton |
| Delivery Time | 3-7 work days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 200pcs/month |

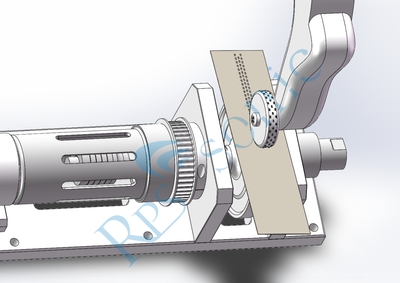

| product name | ultrasonic sewing machine |
| frequency | 35khz |
| power | 800W |
| Ceramice chips | 8 |
| Speed | 20m/min in max |
| Welding width | 15mm in max |
| Welding horn | 20Khz rotary horn |
| Welding type | Continues welding |
Ultrasonic seamless welding is a specialized ultrasonic welding technique used to create continuous, seamless bonds or joints in materials, particularly thermoplastics or synthetic fabrics. It is characterized by its ability to produce a smooth, uniform weld without interruptions, making it ideal for applications requiring aesthetic or airtight sealing.
The principle of ultrasonic sewing machines is to transmit sound waves to the welding surface of the workpiece through high-frequency oscillation, instantly causing friction between the molecules of the workpiece and reaching the melting point of the plastic, thereby achieving rapid dissolution and welding of solid materials. This welding method makes the strength of the joint close to that of a whole piece of connected material, and can achieve complete sealing.
Ultrasonic Vibrations:
High-frequency ultrasonic waves (20–40 kHz) are generated by a transducer.
The energy is transmitted to a horn (sonotrode), which contacts the material.
Localized Heat Generation:
The ultrasonic energy generates heat due to molecular friction at the welding interface, melting the material in the target area.
Continuous Welding:
A rotary horn (sonotrode) or a continuous feed mechanism ensures that the welding process is uninterrupted, resulting in a smooth and seamless joint.
Cooling and Bonding:
As the melted material cools, it solidifies to form a strong, seamless bond.
Application fields：
Ultrasonic sewing machines are widely used in sewing various materials, especially for welding thermoplastic fabrics, special tapes and films. Due to its characteristics of no need for needles and threads, fast welding speed, high strength and good sealing, ultrasonic sewing machines are widely used in clothing, packaging, automotive interiors and other fields.
| product name | ultrasonic sewing machine |
| frequency | 35khz |
| power | 800W |
| Ceramice chips | 8 |
| Speed | 20m/min in max |
| Welding width | 15mm in max |
| Welding horn | 20Khz rotary horn |
| Welding type | Continues welding |
Ultrasonic seamless welding is a specialized ultrasonic welding technique used to create continuous, seamless bonds or joints in materials, particularly thermoplastics or synthetic fabrics. It is characterized by its ability to produce a smooth, uniform weld without interruptions, making it ideal for applications requiring aesthetic or airtight sealing.
The principle of ultrasonic sewing machines is to transmit sound waves to the welding surface of the workpiece through high-frequency oscillation, instantly causing friction between the molecules of the workpiece and reaching the melting point of the plastic, thereby achieving rapid dissolution and welding of solid materials. This welding method makes the strength of the joint close to that of a whole piece of connected material, and can achieve complete sealing.
Ultrasonic Vibrations:
High-frequency ultrasonic waves (20–40 kHz) are generated by a transducer.
The energy is transmitted to a horn (sonotrode), which contacts the material.
Localized Heat Generation:
The ultrasonic energy generates heat due to molecular friction at the welding interface, melting the material in the target area.
Continuous Welding:
A rotary horn (sonotrode) or a continuous feed mechanism ensures that the welding process is uninterrupted, resulting in a smooth and seamless joint.
Cooling and Bonding:
As the melted material cools, it solidifies to form a strong, seamless bond.
Application fields：
Ultrasonic sewing machines are widely used in sewing various materials, especially for welding thermoplastic fabrics, special tapes and films. Due to its characteristics of no need for needles and threads, fast welding speed, high strength and good sealing, ultrasonic sewing machines are widely used in clothing, packaging, automotive interiors and other fields.
