| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-S800 |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | FOAM AND CARTON |
| Delivery Time | 5days |
| Payment Terms | T/T, Western Union, MoneyGram, paypal |
| Supply Ability | 500 sets per month |
Descripersion
Ultrasonics is also the method of choice for these materials, for example for parting fabrics so that there is no thickening of the material along the cut edges.
No consumables such as glue, staples or sewing thread are needed. The fabric remains intact, because no external thermal energy is directed into the fleece. Position, shape and displacement of the welding points can even support the desired properties of the composite.
Textiles is thus a field where ultrasonic technology can prove its uniqueness.
Nonwoven Continuous Ultrasonic Sealing Equipment is a specialized system designed to create strong, seamless bonds in nonwoven fabrics through ultrasonic technology. This equipment is ideal for industries such as medical, hygiene, packaging, and filtration, where continuous, precise, and efficient sealing is essential.
Our seam welding solutions are employed in binding synthetic textiles such as PVC, polyester, polypropylene, coated, filtering and technical fabrics.
Parameter:
ITEM | DECRIPTION | |
TYPE | 35FR1 | 35FR2
|
Frequency | 35khz | 35khz |
Max. power | 600W | 1000W |
Rotary Welding Horn’s Width | 12mm | 12mm |
Synchronizing Belt Matched | The Length is not more than730mm, the Width 12mm | |
Max. Allowable Rotation Speed | 100 r/min. | |
Install Bolt | M8, 4 pcs | |
Generator | Digital generator can be adjusted the output amplitude from 50% to100%, continuously working | |
Cable | Standard 5m Special length, please inform us. | |
Continuous Sealing:
Supports long, uninterrupted sealing for rolls of material, improving productivity.
Precision:
Ensures uniform bonding with minimal variation.
Customizable Patterns:

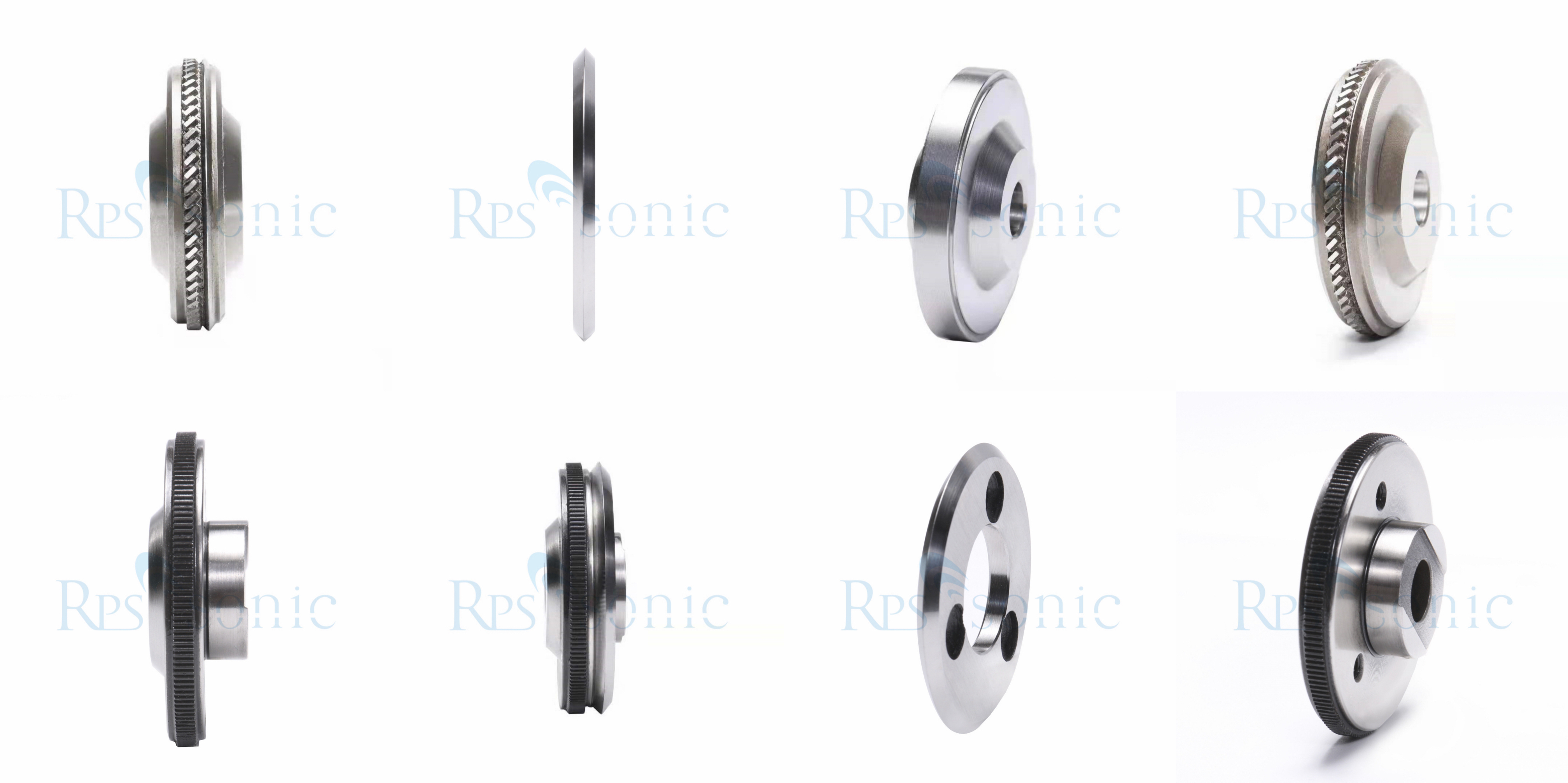

Anvil rollers can be engraved to create specific patterns, such as lines, grids, or decorative effects.
High Speed:
Operates at high speeds, suitable for large-scale production lines.
No Consumables:
Eliminates the need for glue, thread, or other consumables.
Descripersion
Ultrasonics is also the method of choice for these materials, for example for parting fabrics so that there is no thickening of the material along the cut edges.
No consumables such as glue, staples or sewing thread are needed. The fabric remains intact, because no external thermal energy is directed into the fleece. Position, shape and displacement of the welding points can even support the desired properties of the composite.
Textiles is thus a field where ultrasonic technology can prove its uniqueness.
Nonwoven Continuous Ultrasonic Sealing Equipment is a specialized system designed to create strong, seamless bonds in nonwoven fabrics through ultrasonic technology. This equipment is ideal for industries such as medical, hygiene, packaging, and filtration, where continuous, precise, and efficient sealing is essential.
Our seam welding solutions are employed in binding synthetic textiles such as PVC, polyester, polypropylene, coated, filtering and technical fabrics.
Parameter:
ITEM | DECRIPTION | |
TYPE | 35FR1 | 35FR2
|
Frequency | 35khz | 35khz |
Max. power | 600W | 1000W |
Rotary Welding Horn’s Width | 12mm | 12mm |
Synchronizing Belt Matched | The Length is not more than730mm, the Width 12mm | |
Max. Allowable Rotation Speed | 100 r/min. | |
Install Bolt | M8, 4 pcs | |
Generator | Digital generator can be adjusted the output amplitude from 50% to100%, continuously working | |
Cable | Standard 5m Special length, please inform us. | |
Continuous Sealing:
Supports long, uninterrupted sealing for rolls of material, improving productivity.
Precision:
Ensures uniform bonding with minimal variation.
Customizable Patterns:
Anvil rollers can be engraved to create specific patterns, such as lines, grids, or decorative effects.
High Speed:
Operates at high speeds, suitable for large-scale production lines.
No Consumables:
Eliminates the need for glue, thread, or other consumables.
