RPS-SONO20
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-C20 |
| Minimum Order Quantity | 1set |
| Price | USD2500/SET |
| Packaging Details | Carton box |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Parameter:
| Item | Parameter |
| Frequency | 20kHz |
| Power | 3000watt |
| Capacity | 10L-30L |
| Amplitude | 10-99% |
| Power supply | 220v/50-60Hz |
| Horn material | Titanium alloy |
| Horn size | 50mm |
| Tank capacity | 2.5L |
| Tank material | SS304 double layer |
| Gnerator | Digital |
| Optional | Water bath,Chiller,Pump |

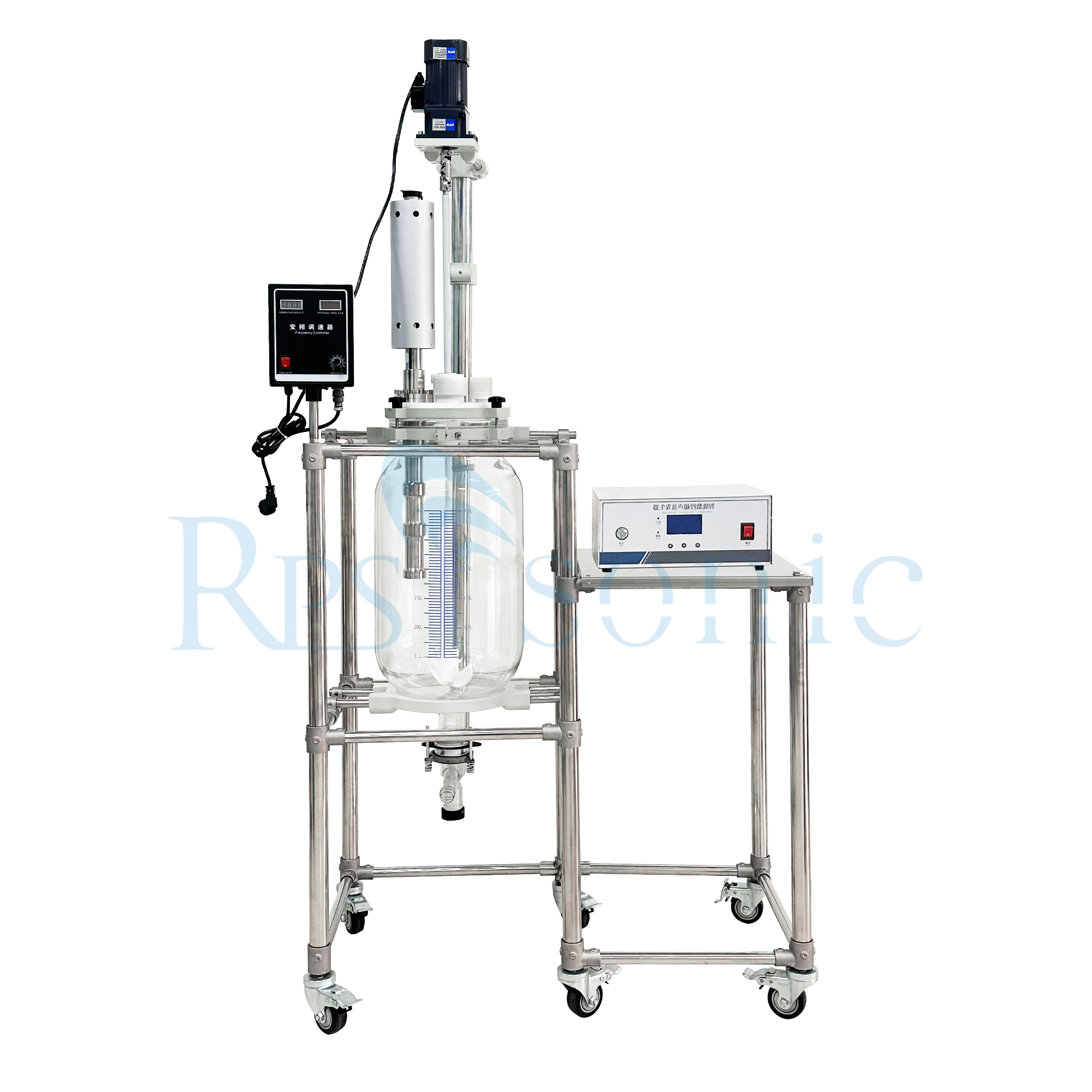

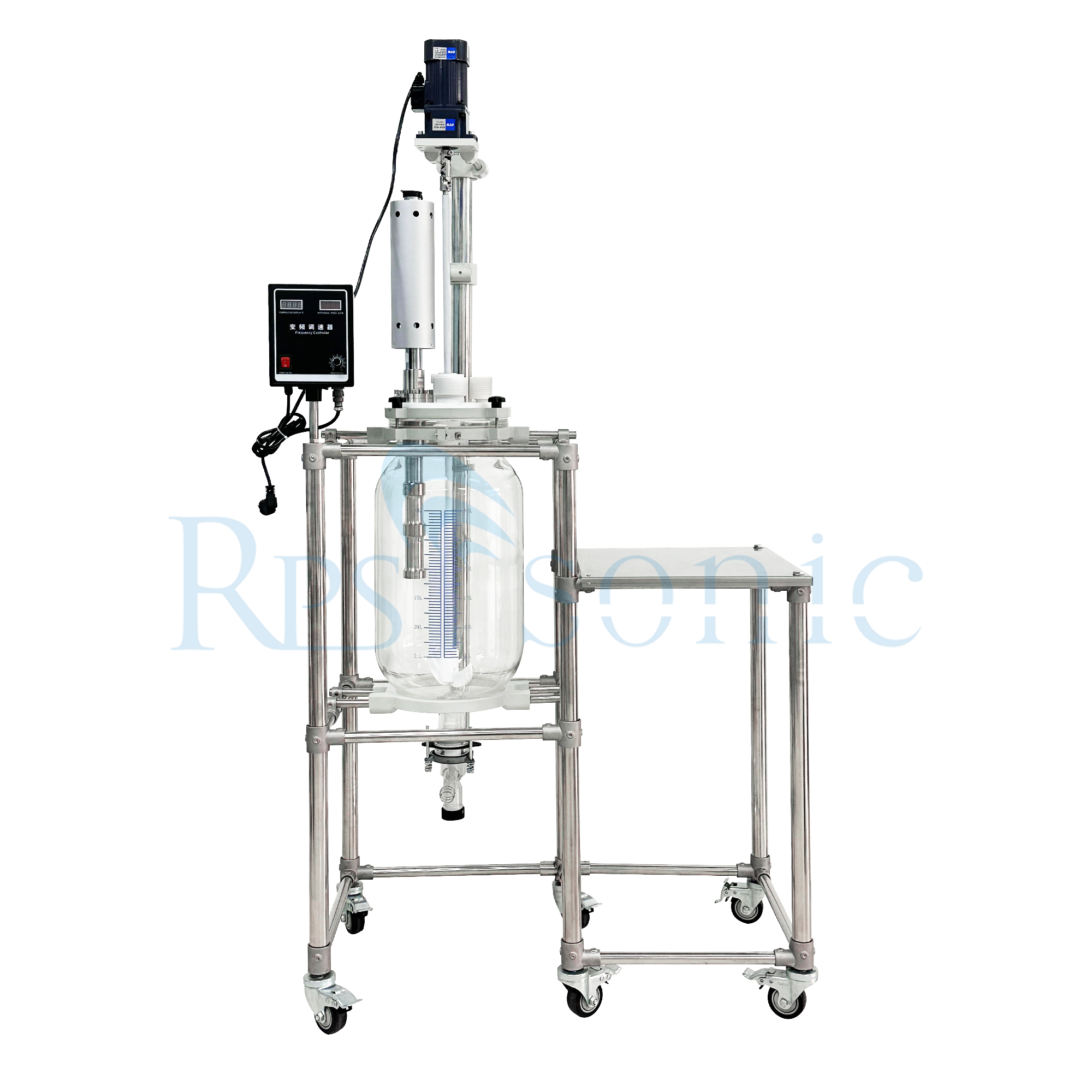

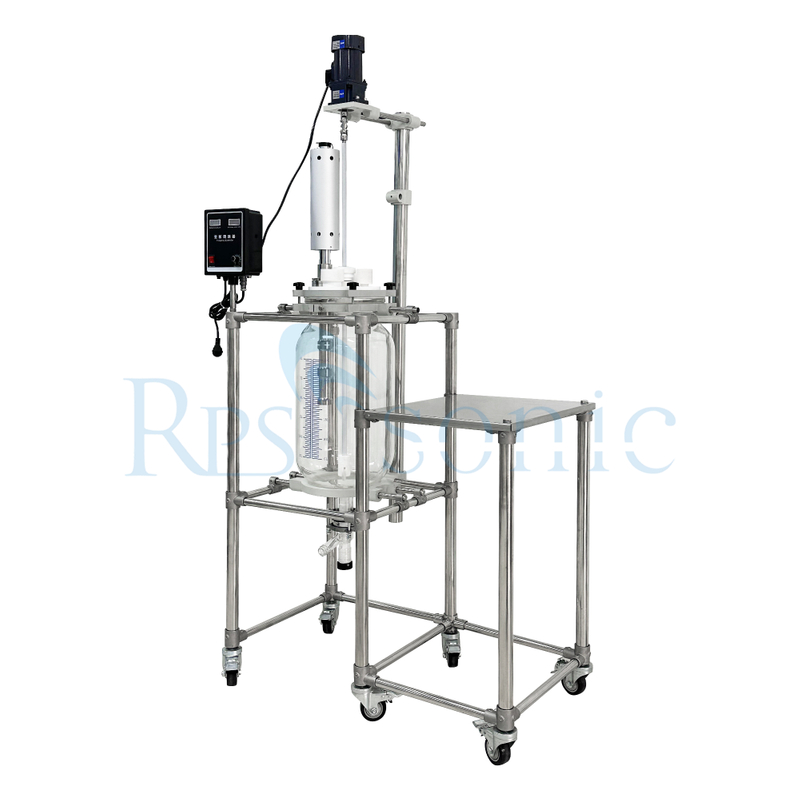

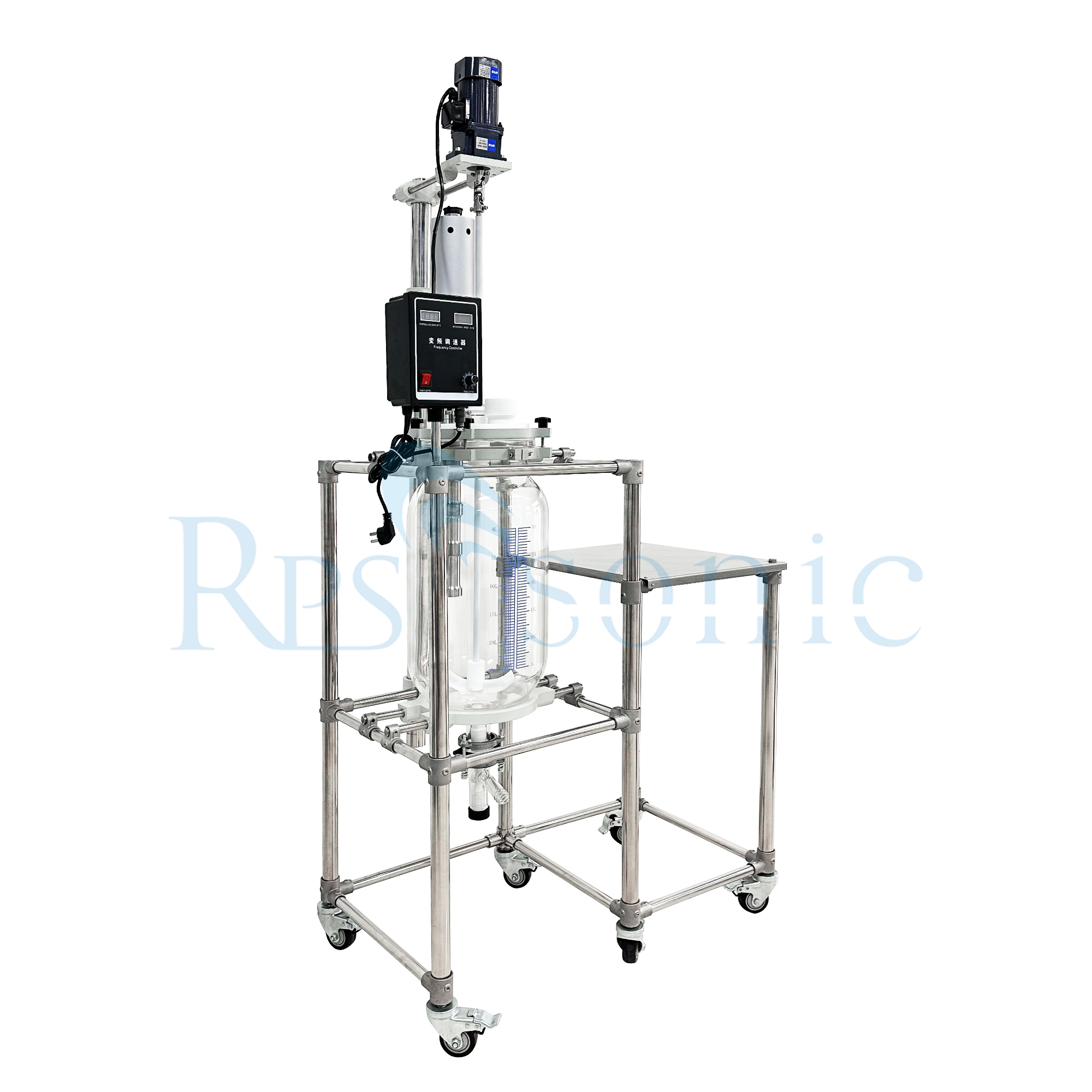

An industrial ultrasonic extraction machine with a flow cell is a specialized piece of equipment used for large-scale extraction processes in industries such as pharmaceuticals, food and beverage, cosmetics, and herbal extraction. It combines ultrasonic technology with a flow-through system to enhance extraction efficiency, scalability, and consistency.
Ultrasonic Extraction Technology:
Uses high-frequency ultrasonic waves to create cavitation bubbles in a liquid medium.
Cavitation generates intense localized pressure and temperature, breaking down cell walls and releasing bioactive compounds (e.g., oils, proteins, polysaccharides).
Flow Cell Design:
A flow cell allows continuous processing of liquids, making it suitable for industrial-scale operations.
The material flows through a chamber where it is exposed to ultrasonic energy, ensuring uniform treatment.
Scalability:
Designed for high-volume processing, making it ideal for industrial applications.
Can handle large quantities of raw materials efficiently.
Precision and Control:
Adjustable ultrasonic frequency, amplitude, and power for optimized extraction.
Temperature and flow rate control to prevent degradation of sensitive compounds.
Durability and Safety:
Constructed with industrial-grade materials (e.g., stainless steel) for durability and compliance with hygiene standards.
Safety features to prevent overheating or overpressure.
Regularly inspect and clean the ultrasonic probe to prevent fouling.
Check the transducer for wear and tear, and replace it if necessary.
Monitor the cooling system to avoid overheating during prolonged use.
Calibrate the system periodically to ensure consistent performance.
Higher Yield: Ultrasonic extraction is more efficient than traditional methods (e.g., Soxhlet or maceration).
Faster Processing: Reduces extraction time significantly.
Energy Efficiency: Lower energy consumption compared to other extraction methods.
Preservation of Compounds: Gentle extraction process preserves heat-sensitive compounds.
Continuous Operation: Flow cell design enables uninterrupted processing.
Parameter:
| Item | Parameter |
| Frequency | 20kHz |
| Power | 3000watt |
| Capacity | 10L-30L |
| Amplitude | 10-99% |
| Power supply | 220v/50-60Hz |
| Horn material | Titanium alloy |
| Horn size | 50mm |
| Tank capacity | 2.5L |
| Tank material | SS304 double layer |
| Gnerator | Digital |
| Optional | Water bath,Chiller,Pump |
An industrial ultrasonic extraction machine with a flow cell is a specialized piece of equipment used for large-scale extraction processes in industries such as pharmaceuticals, food and beverage, cosmetics, and herbal extraction. It combines ultrasonic technology with a flow-through system to enhance extraction efficiency, scalability, and consistency.
Ultrasonic Extraction Technology:
Uses high-frequency ultrasonic waves to create cavitation bubbles in a liquid medium.
Cavitation generates intense localized pressure and temperature, breaking down cell walls and releasing bioactive compounds (e.g., oils, proteins, polysaccharides).
Flow Cell Design:
A flow cell allows continuous processing of liquids, making it suitable for industrial-scale operations.
The material flows through a chamber where it is exposed to ultrasonic energy, ensuring uniform treatment.
Scalability:
Designed for high-volume processing, making it ideal for industrial applications.
Can handle large quantities of raw materials efficiently.
Precision and Control:
Adjustable ultrasonic frequency, amplitude, and power for optimized extraction.
Temperature and flow rate control to prevent degradation of sensitive compounds.
Durability and Safety:
Constructed with industrial-grade materials (e.g., stainless steel) for durability and compliance with hygiene standards.
Safety features to prevent overheating or overpressure.
Regularly inspect and clean the ultrasonic probe to prevent fouling.
Check the transducer for wear and tear, and replace it if necessary.
Monitor the cooling system to avoid overheating during prolonged use.
Calibrate the system periodically to ensure consistent performance.
Higher Yield: Ultrasonic extraction is more efficient than traditional methods (e.g., Soxhlet or maceration).
Faster Processing: Reduces extraction time significantly.
Energy Efficiency: Lower energy consumption compared to other extraction methods.
Preservation of Compounds: Gentle extraction process preserves heat-sensitive compounds.
Continuous Operation: Flow cell design enables uninterrupted processing.
