Place of Origin | China |
---|---|
Brand Name | Rps-sonic |
Certification | CE |
Model Number | RPS-C40 |
Minimum Order Quantity | 1pcs |
Price | negotiable |
Packaging Details | CARTON |
Delivery Time | 1DAYS |
Payment Terms | T/T |
Supply Ability | 200PCS/MONTH |

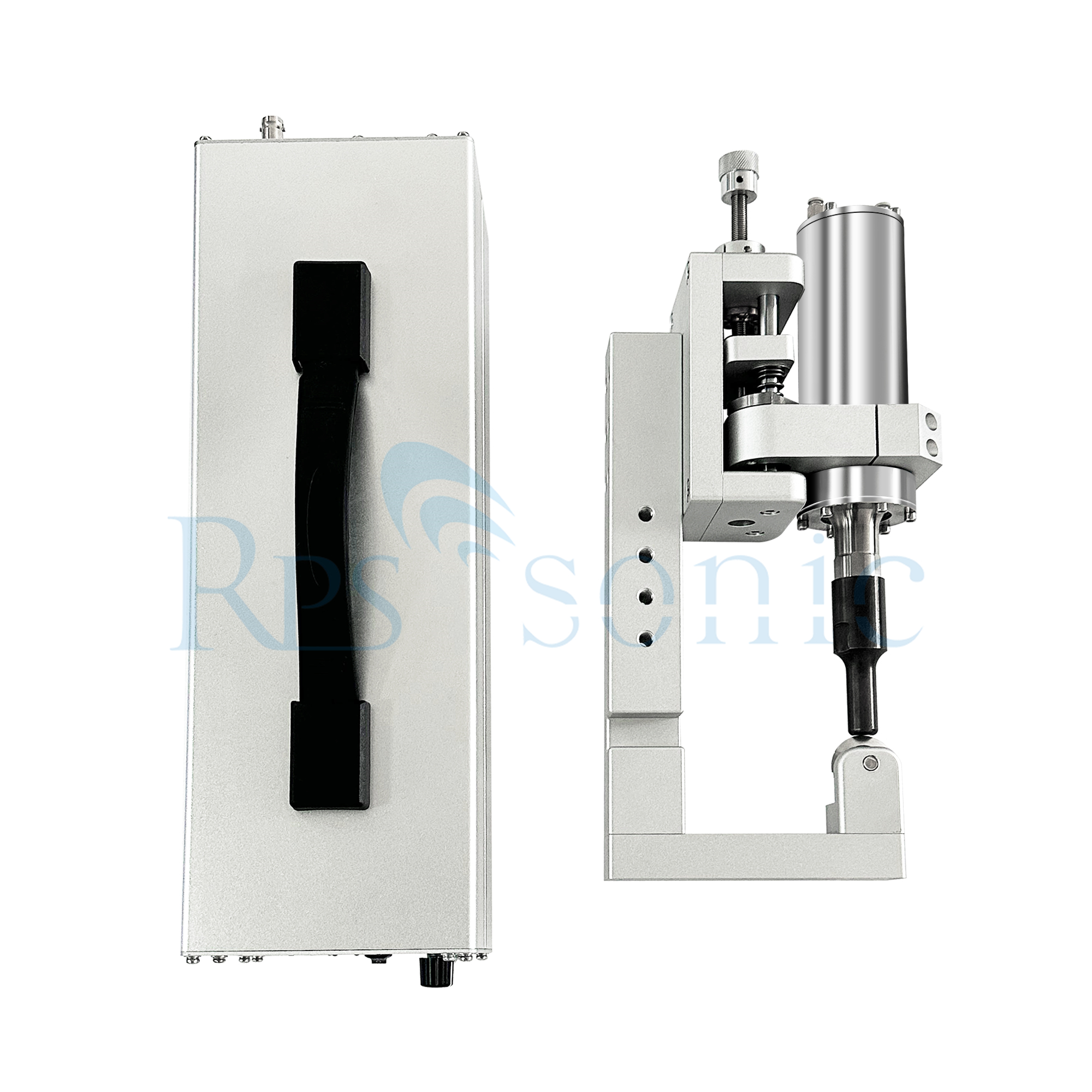

Compact Ultrasonic cutting machine for cutting of fabrics, non-woven materials, foils, Butyl Rubber
Parameter
Frequency | 35Khz |
Frequency adjustment | Auto-tracking type |
Max. power output | 300W |
Power output | Infinitive adjustment |
Power supply | AC200V 50/60Hz |
Outer dimension (mm) | 120*120*380 |
Weight | 5kg |
Horn width | 0.5mm |
The mechanical vibration energy generated by the ultrasonic generator exceeds 20,000 times per second, and the blade vibrates, which heats and melts the local part of the material to be cut, so that the molecular chain breaks and separates quickly to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a particularly sharp blade, nor does it require a lot of pressure, and will not cause the edge of the cut material to collapse or break. At the same time, due to the ultrasonic vibration cutting knife, the friction is small, and the material is not easy to stick to the blade by reducing the material. It is especially effective for viscous and elastic materials, frozen, such as food, rubber, etc., or objects that are not convenient to add pressure to cut.
Another great advantage of ultrasonic cutting is that it has a fusion effect on the cutting part while cutting. The cutting part is perfectly sealed to prevent the loose organization of the cut material (such as the flash of textile materials). The use of ultrasonic cutting machines can also be expanded, such as digging holes, shoveling, scraping paint, carving, striping, etc.
Advantages
Real time frequency automatic tracking display
Welding modes: time, energy, and grounding.
Amplitude division function
Welding amplitude 10%-100% adjustable (1% accuracy)
Amplitude compensation
Mold impedance analysis + protection
Overload protection
Voltage protection (input)
Transducer voltage protection
485 communication
The Ultrasonic Cutting Systems can easily cut to Food (Cakes, Pies, Fish, Snack, Meat, baked Cokkies, Chees, Vegatables, Candy, Confectionery, Ice Cream) Rubber, Tyre, Resin, Cloths Non-Woven, Film, Ribbon, CD, Foam, Cardboards, Bonded Textile, Craft items, Glass and composite material in which various products.
The Ultrasonic cutting horn, which is vibrating at a high frequency, creates a nearly friction-free environment between the horn and the product, its blade vibrate with an amplitude of 10-70 µm in the longitudinal friction. The vibration is microscopic, so it cannot be seen The movement repeats 20,000 â 40,000 times per seconds (20 Khz â 40 Khz ).
Features
Frequency 40Khz
Compact Ultrasonic cutting machine for cutting of fabrics, non-woven materials, foils, Butyl Rubber (Tyre) etc.
Ideal for straight and curved cutting.
With guiding rail on a cutting table the ideal cutting unit also for larger series.
Cost-efficient Ultrasonic Cutting equipment for studios, small and medium-sized enterprises.
At best adequate for single cuts as well as for small up to medium series
Can be integrated to weaving, winding and other offline applications
Process flexibility
Enhanced precision
Cleaning edages
cost reduce
Energy efficient
worker safety
Enviroment Friendly
No water waste disposal
Compact Ultrasonic cutting machine for cutting of fabrics, non-woven materials, foils, Butyl Rubber
Parameter
Frequency | 35Khz |
Frequency adjustment | Auto-tracking type |
Max. power output | 300W |
Power output | Infinitive adjustment |
Power supply | AC200V 50/60Hz |
Outer dimension (mm) | 120*120*380 |
Weight | 5kg |
Horn width | 0.5mm |
The mechanical vibration energy generated by the ultrasonic generator exceeds 20,000 times per second, and the blade vibrates, which heats and melts the local part of the material to be cut, so that the molecular chain breaks and separates quickly to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a particularly sharp blade, nor does it require a lot of pressure, and will not cause the edge of the cut material to collapse or break. At the same time, due to the ultrasonic vibration cutting knife, the friction is small, and the material is not easy to stick to the blade by reducing the material. It is especially effective for viscous and elastic materials, frozen, such as food, rubber, etc., or objects that are not convenient to add pressure to cut.
Another great advantage of ultrasonic cutting is that it has a fusion effect on the cutting part while cutting. The cutting part is perfectly sealed to prevent the loose organization of the cut material (such as the flash of textile materials). The use of ultrasonic cutting machines can also be expanded, such as digging holes, shoveling, scraping paint, carving, striping, etc.
Advantages
Real time frequency automatic tracking display
Welding modes: time, energy, and grounding.
Amplitude division function
Welding amplitude 10%-100% adjustable (1% accuracy)
Amplitude compensation
Mold impedance analysis + protection
Overload protection
Voltage protection (input)
Transducer voltage protection
485 communication
The Ultrasonic Cutting Systems can easily cut to Food (Cakes, Pies, Fish, Snack, Meat, baked Cokkies, Chees, Vegatables, Candy, Confectionery, Ice Cream) Rubber, Tyre, Resin, Cloths Non-Woven, Film, Ribbon, CD, Foam, Cardboards, Bonded Textile, Craft items, Glass and composite material in which various products.
The Ultrasonic cutting horn, which is vibrating at a high frequency, creates a nearly friction-free environment between the horn and the product, its blade vibrate with an amplitude of 10-70 µm in the longitudinal friction. The vibration is microscopic, so it cannot be seen The movement repeats 20,000 â 40,000 times per seconds (20 Khz â 40 Khz ).
Features
Frequency 40Khz
Compact Ultrasonic cutting machine for cutting of fabrics, non-woven materials, foils, Butyl Rubber (Tyre) etc.
Ideal for straight and curved cutting.
With guiding rail on a cutting table the ideal cutting unit also for larger series.
Cost-efficient Ultrasonic Cutting equipment for studios, small and medium-sized enterprises.
At best adequate for single cuts as well as for small up to medium series
Can be integrated to weaving, winding and other offline applications
Process flexibility
Enhanced precision
Cleaning edages
cost reduce
Energy efficient
worker safety
Enviroment Friendly
No water waste disposal
