| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | Rps-sonic |
| Certification | CE |
| Model Number | RPS-C40 |
| Minimum Order Quantity | 1pcs |
| Price | negotiable |
| Packaging Details | CARTON |
| Delivery Time | 1DAYS |
| Payment Terms | T/T |
| Supply Ability | 200PCS/MONTH |

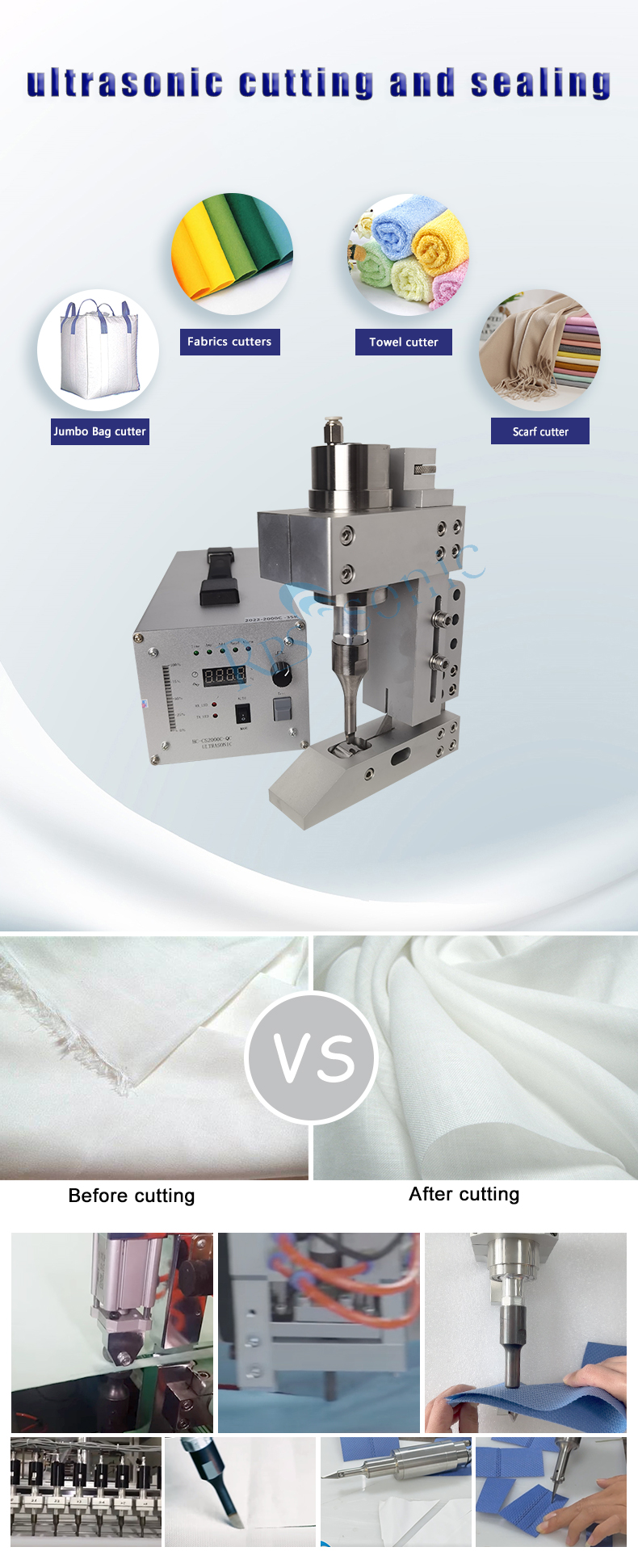

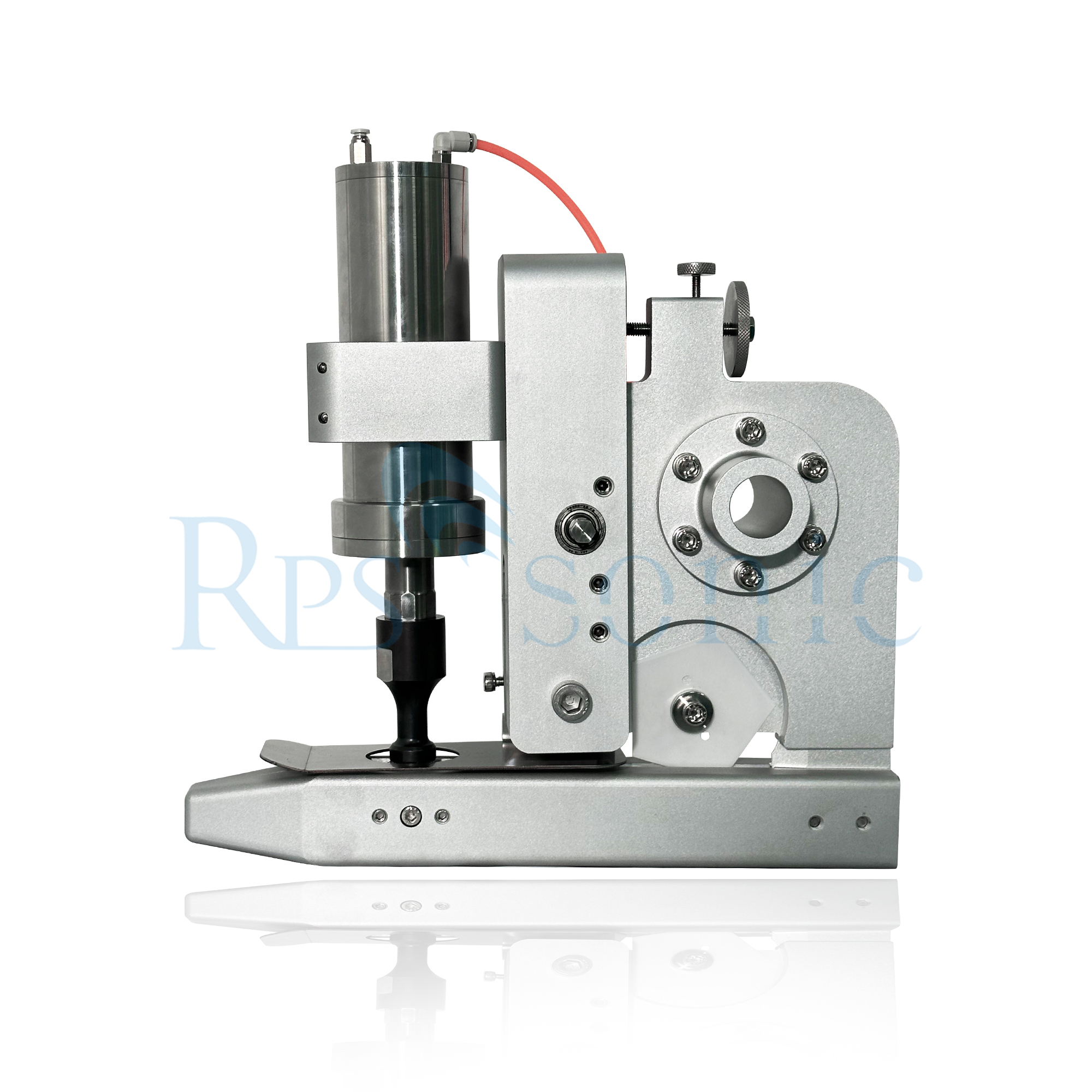

Nonwoven Welding 35khz 500w Ultrasonic Textile Cutting Machine
Parameter
| Frequency | 35Khz |
| Frequency adjustment | Auto-tracking type |
| Max. power output | 300W |
| Power output | Infinitive adjustment |
| Power supply | AC200V 50/60Hz |
| Outer dimension (mm) | 120*120*380 |
| Weight | 5kg |
| Horn width | 0.5mm |
Description
Ultrasonic cutting machine is a type of equipment that uses wave energy for cutting processing. Its biggest feature is that it does not use a cutting edge for cutting. In other words, it does not use a cutting edge in the traditional sense. Traditional cutting uses a tool with a sharp cutting edge to press against the material to be cut. This pressure is concentrated at the cutting edge, and the pressure is very high, exceeding the shear strength of the material being cut. The molecular bonds of the material are pulled apart and it is cut off. Since the material is pulled apart by strong pressure, the cutting tool edge should be very sharp, and the material itself must withstand relatively large pressure. The cutting effect is not good for soft and elastic materials, and it is even more difficult for sticky materials.
Ultrasonic cutting equipment is suitable for cutting textiles and fabrics containing at least 50% synthetic fibers, such as nylon mesh, non-woven fabrics, chemical fibers, glass fiber cloth (curtain cloth), woven cloth, sunshade cloth (30% polyester and 70% PVC), umbrella cloth (impact cloth, polyester cloth, nylon cloth, Oxford cloth, satin cloth, PVC, T/C cotton cloth, EVA, pearlescent cloth), swimsuit and swimming trunks cloth, raincoat cloth, plastic paper, etc. Thermoplastic cloth and flannel fabric are also suitable for cutting with this equipment.
Advantages and features of ultrasonic cutting machine:
1. The cutting incision is smooth, reliable and accurate,
2. It can seal the fabric without deformation and warping when cutting,
3. There is no knotty, nor any silk fabric, no wrinkles, no burrs after cutting
4. Stable work, fast cutting speed, non-stick knife, etc.
5. Simple operation, no need for professional people, saving time and labor
6. Convenient and fast to use, saving time, workers will not be tired after long-term operation
7. Can be connected to the robot arm
Nonwoven Welding 35khz 500w Ultrasonic Textile Cutting Machine
Parameter
| Frequency | 35Khz |
| Frequency adjustment | Auto-tracking type |
| Max. power output | 300W |
| Power output | Infinitive adjustment |
| Power supply | AC200V 50/60Hz |
| Outer dimension (mm) | 120*120*380 |
| Weight | 5kg |
| Horn width | 0.5mm |
Description
Ultrasonic cutting machine is a type of equipment that uses wave energy for cutting processing. Its biggest feature is that it does not use a cutting edge for cutting. In other words, it does not use a cutting edge in the traditional sense. Traditional cutting uses a tool with a sharp cutting edge to press against the material to be cut. This pressure is concentrated at the cutting edge, and the pressure is very high, exceeding the shear strength of the material being cut. The molecular bonds of the material are pulled apart and it is cut off. Since the material is pulled apart by strong pressure, the cutting tool edge should be very sharp, and the material itself must withstand relatively large pressure. The cutting effect is not good for soft and elastic materials, and it is even more difficult for sticky materials.
Ultrasonic cutting equipment is suitable for cutting textiles and fabrics containing at least 50% synthetic fibers, such as nylon mesh, non-woven fabrics, chemical fibers, glass fiber cloth (curtain cloth), woven cloth, sunshade cloth (30% polyester and 70% PVC), umbrella cloth (impact cloth, polyester cloth, nylon cloth, Oxford cloth, satin cloth, PVC, T/C cotton cloth, EVA, pearlescent cloth), swimsuit and swimming trunks cloth, raincoat cloth, plastic paper, etc. Thermoplastic cloth and flannel fabric are also suitable for cutting with this equipment.
Advantages and features of ultrasonic cutting machine:
1. The cutting incision is smooth, reliable and accurate,
2. It can seal the fabric without deformation and warping when cutting,
3. There is no knotty, nor any silk fabric, no wrinkles, no burrs after cutting
4. Stable work, fast cutting speed, non-stick knife, etc.
5. Simple operation, no need for professional people, saving time and labor
6. Convenient and fast to use, saving time, workers will not be tired after long-term operation
7. Can be connected to the robot arm
