| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | ISO-9001 |
| Model Number | RPS-Σ3000M |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | wood box |
| Delivery Time | 7 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets/month |

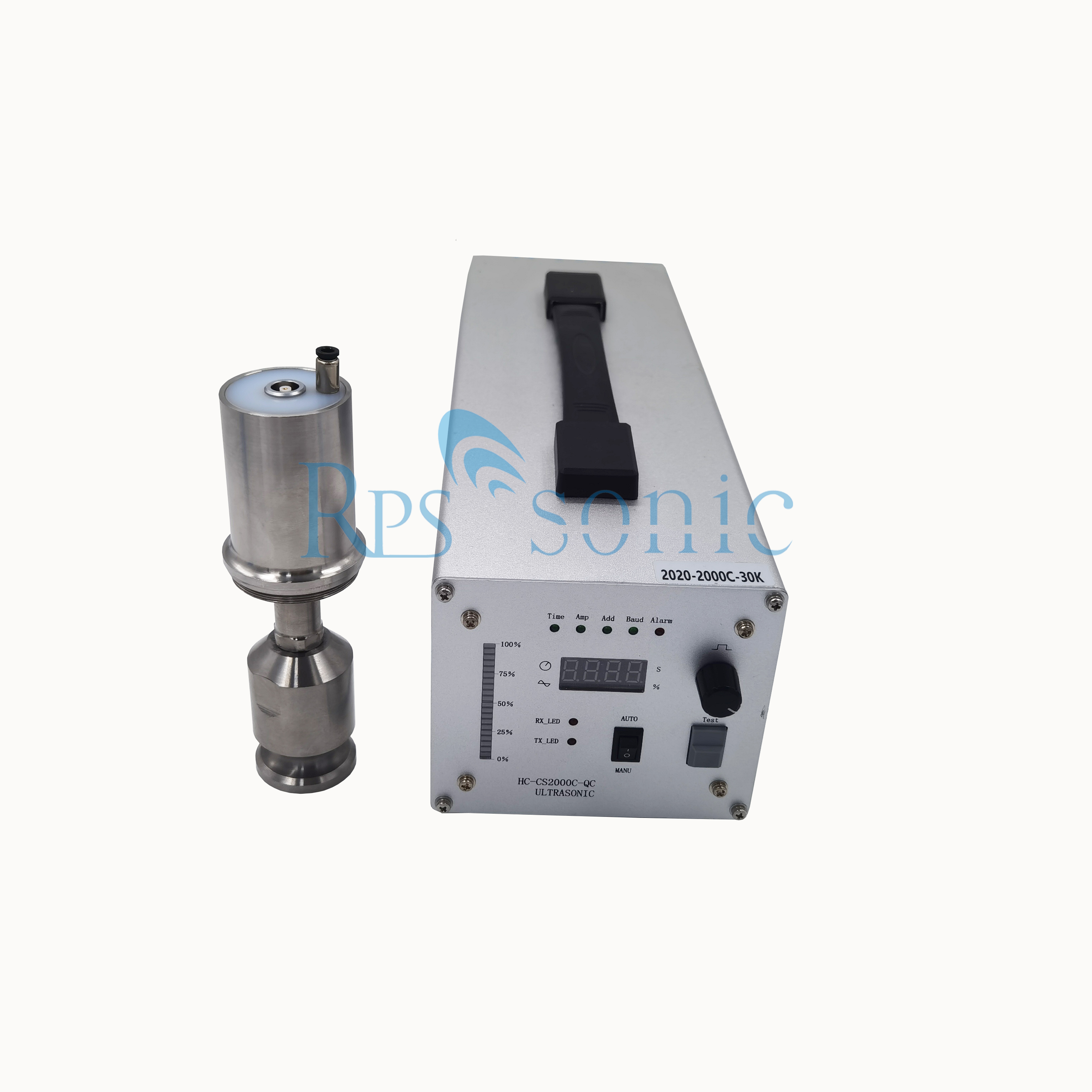

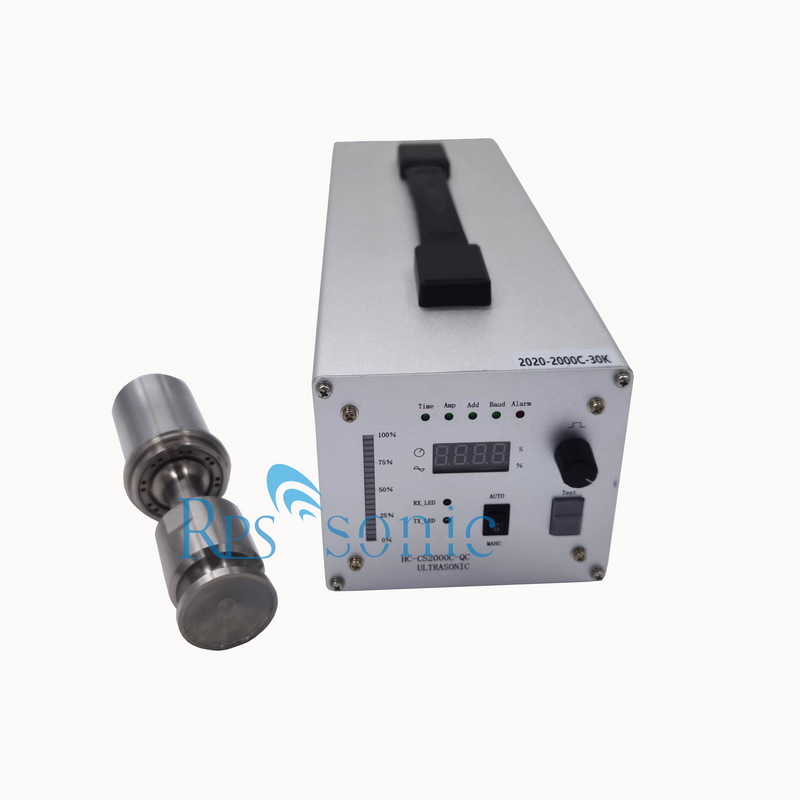

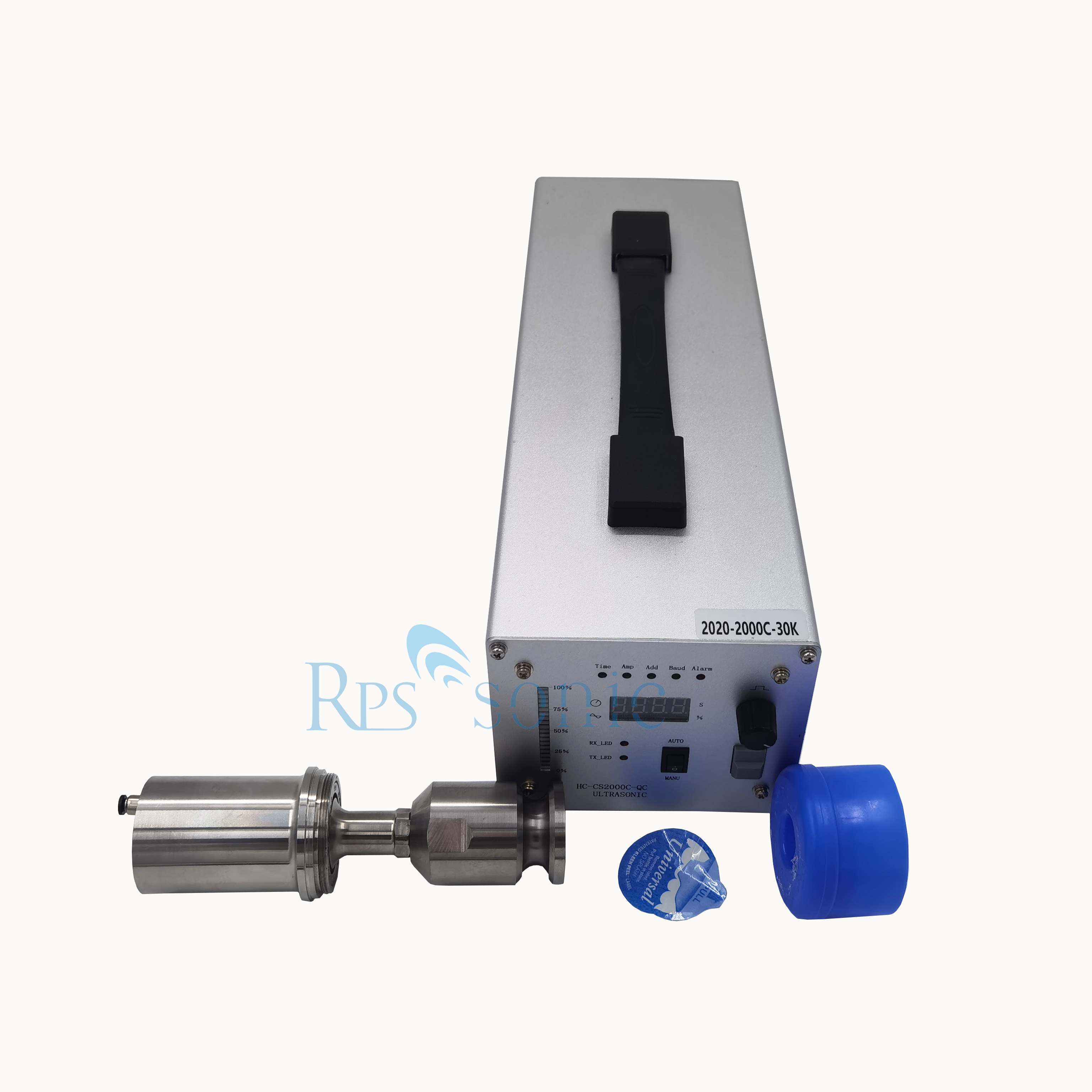

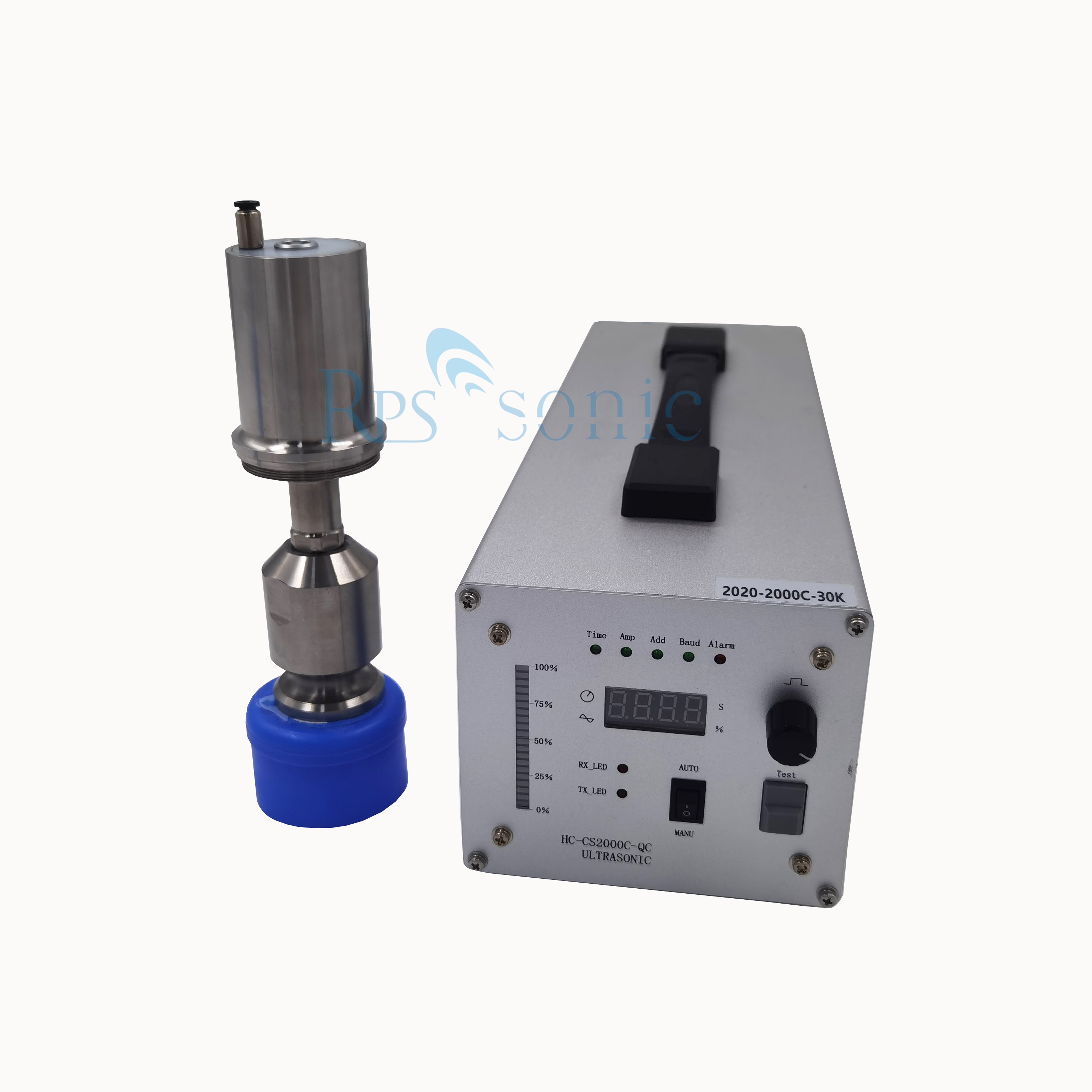

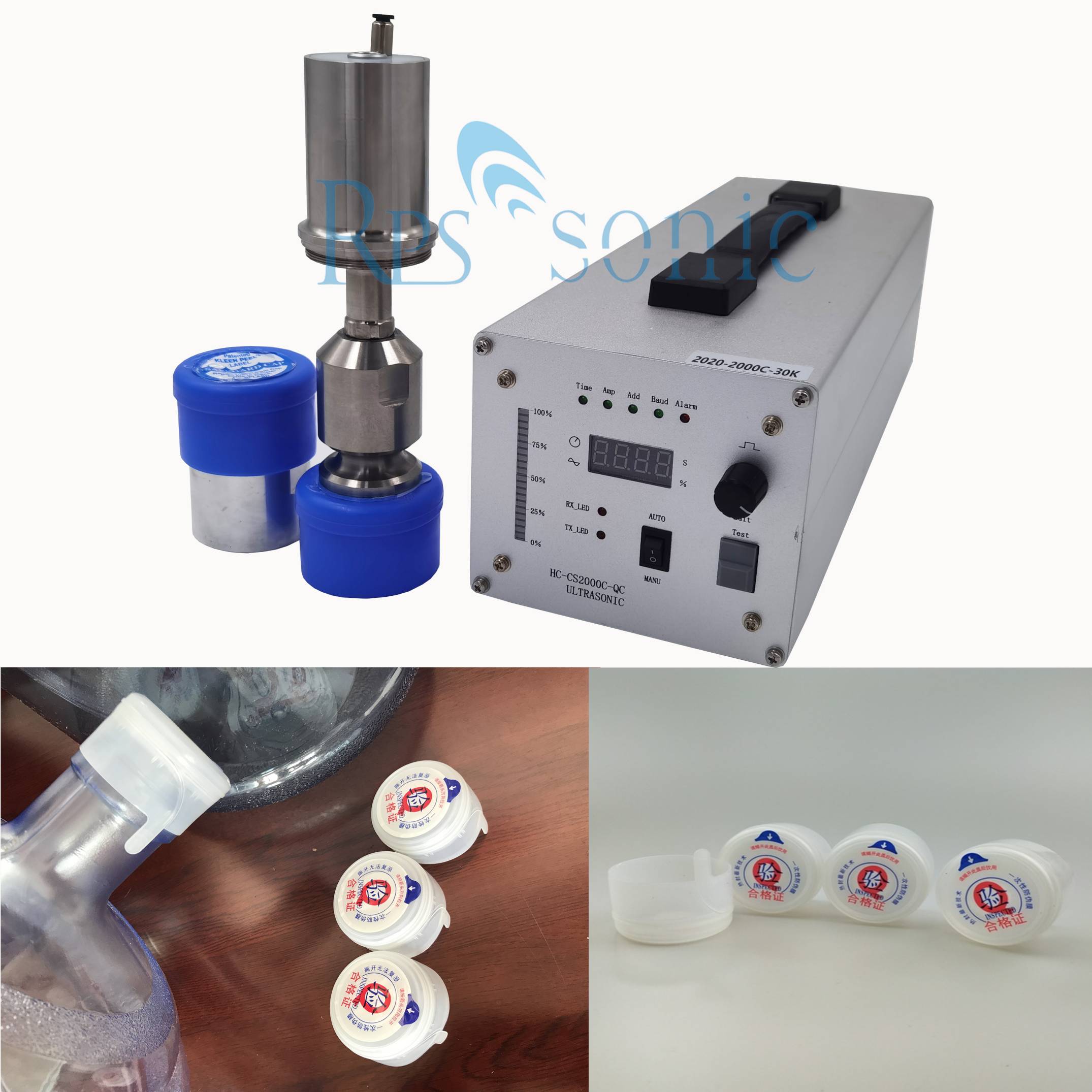

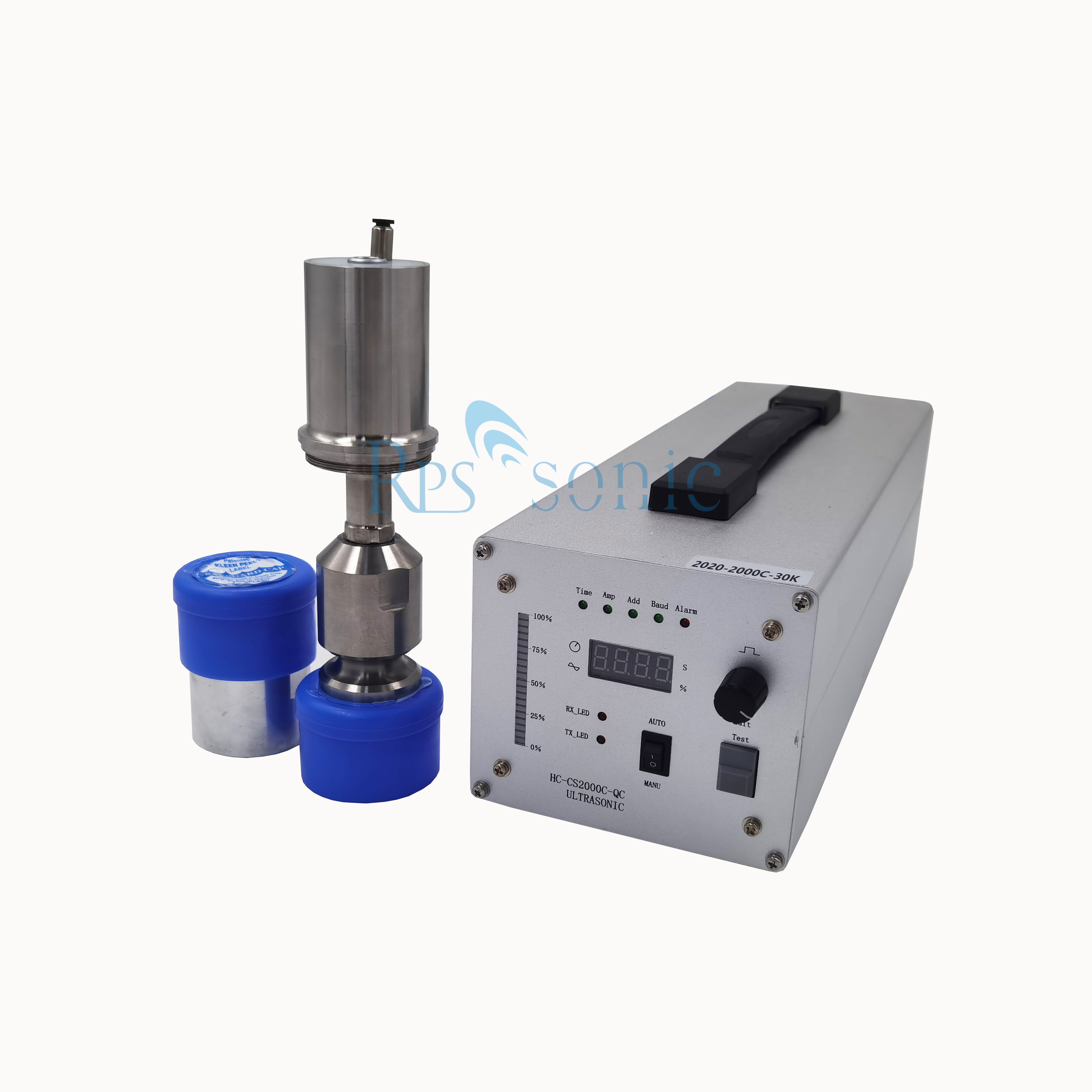

Ultrasonic bottle cap welding equipment is an application of ultrasonic plastic welding machine in the field of bottle cap manufacturing. The following is a detailed introduction to the equipment:
1. Working principle
The working principle of ultrasonic bottle cap welding equipment is based on the heat energy generated by high-frequency vibration. There is a transistor function device inside the equipment, which can convert ordinary mains frequency (such as 15/20Hz) into high-frequency electrical energy (such as 20KHz or 40KHz). This high-frequency electrical energy is supplied to the converter, which converts it into mechanical vibration energy. This mechanical vibration energy is transmitted to the welding head through the voltage regulating device, and the welding head then transmits the vibration energy directly to the bottle cap material to be welded. The heat energy generated by vibration friction will melt the plastic, and the short-term maintenance of pressure can cause the melt to produce strong molecular bonds when the bonding surface solidifies, thereby achieving welding.
2. Equipment features
Efficient welding: Ultrasonic bottle cap welding equipment can complete the welding process in a very short time, greatly improving production efficiency.
High welding quality: The welding strength is close to the raw material strength, ensuring that the bottle cap will not fall off or leak during transportation and use.
Energy saving and environmental protection: Compared with other traditional welding processes, ultrasonic welding does not require additional heating equipment, reducing energy consumption and environmental pollution.
Easy to operate: The equipment is usually equipped with a touch screen control system, which is simple and intuitive to operate.
3. Precautions for use
Grounding protection: The equipment should be properly grounded before use to prevent electrical accidents.
Voltage stability: To ensure efficient and safe operation of the equipment, the mains voltage change should not be greater than 10%. If the voltage fluctuates greatly, an AC voltage stabilizer should be installed.
Avoid vibration damage: After power on, do not place your hands under the welding head to avoid high-frequency vibration and high-voltage damage.
Welding head protection: The welding head should be cleaned and maintained regularly to avoid collisions and scratches.
Ultrasonic bottle cap welding equipment is an application of ultrasonic plastic welding machine in the field of bottle cap manufacturing. The following is a detailed introduction to the equipment:
1. Working principle
The working principle of ultrasonic bottle cap welding equipment is based on the heat energy generated by high-frequency vibration. There is a transistor function device inside the equipment, which can convert ordinary mains frequency (such as 15/20Hz) into high-frequency electrical energy (such as 20KHz or 40KHz). This high-frequency electrical energy is supplied to the converter, which converts it into mechanical vibration energy. This mechanical vibration energy is transmitted to the welding head through the voltage regulating device, and the welding head then transmits the vibration energy directly to the bottle cap material to be welded. The heat energy generated by vibration friction will melt the plastic, and the short-term maintenance of pressure can cause the melt to produce strong molecular bonds when the bonding surface solidifies, thereby achieving welding.
2. Equipment features
Efficient welding: Ultrasonic bottle cap welding equipment can complete the welding process in a very short time, greatly improving production efficiency.
High welding quality: The welding strength is close to the raw material strength, ensuring that the bottle cap will not fall off or leak during transportation and use.
Energy saving and environmental protection: Compared with other traditional welding processes, ultrasonic welding does not require additional heating equipment, reducing energy consumption and environmental pollution.
Easy to operate: The equipment is usually equipped with a touch screen control system, which is simple and intuitive to operate.
3. Precautions for use
Grounding protection: The equipment should be properly grounded before use to prevent electrical accidents.
Voltage stability: To ensure efficient and safe operation of the equipment, the mains voltage change should not be greater than 10%. If the voltage fluctuates greatly, an AC voltage stabilizer should be installed.
Avoid vibration damage: After power on, do not place your hands under the welding head to avoid high-frequency vibration and high-voltage damage.
Welding head protection: The welding head should be cleaned and maintained regularly to avoid collisions and scratches.
