| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-MM20 |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | FOAM AND CARTON |
| Delivery Time | 3DAYS |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 200 SETS PER MONTH |
Ultrasonic Welding is a joining process in which two components are held together, oscillatory shear stresses of ultrasonic frequency are applied to interface to cause coalescence. This oscillatory motion breaks down any surface films to allow intimate contact and strong metallurgical bonding between surfaces.(primitive conditions for bonding between two metals to occure).
You may ask about the temperature....it will be far below the melting point of the metal in this case. We use no filler wire, no flux, no shielding gas (advantages over other process) but this process is limited to soft metals like aluminum, copper etc.
It has some specific applications
--> Wire terminatios and splicing in electrical and electronic industry (so we need not to go for sluggish soldering)
--->Assembling of aluminum sheet metal panels in automotive industry.

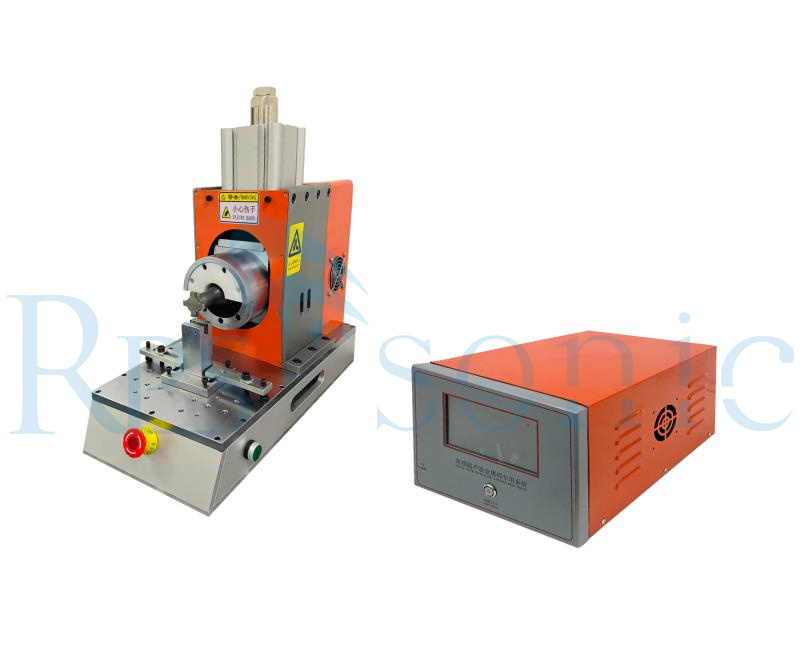

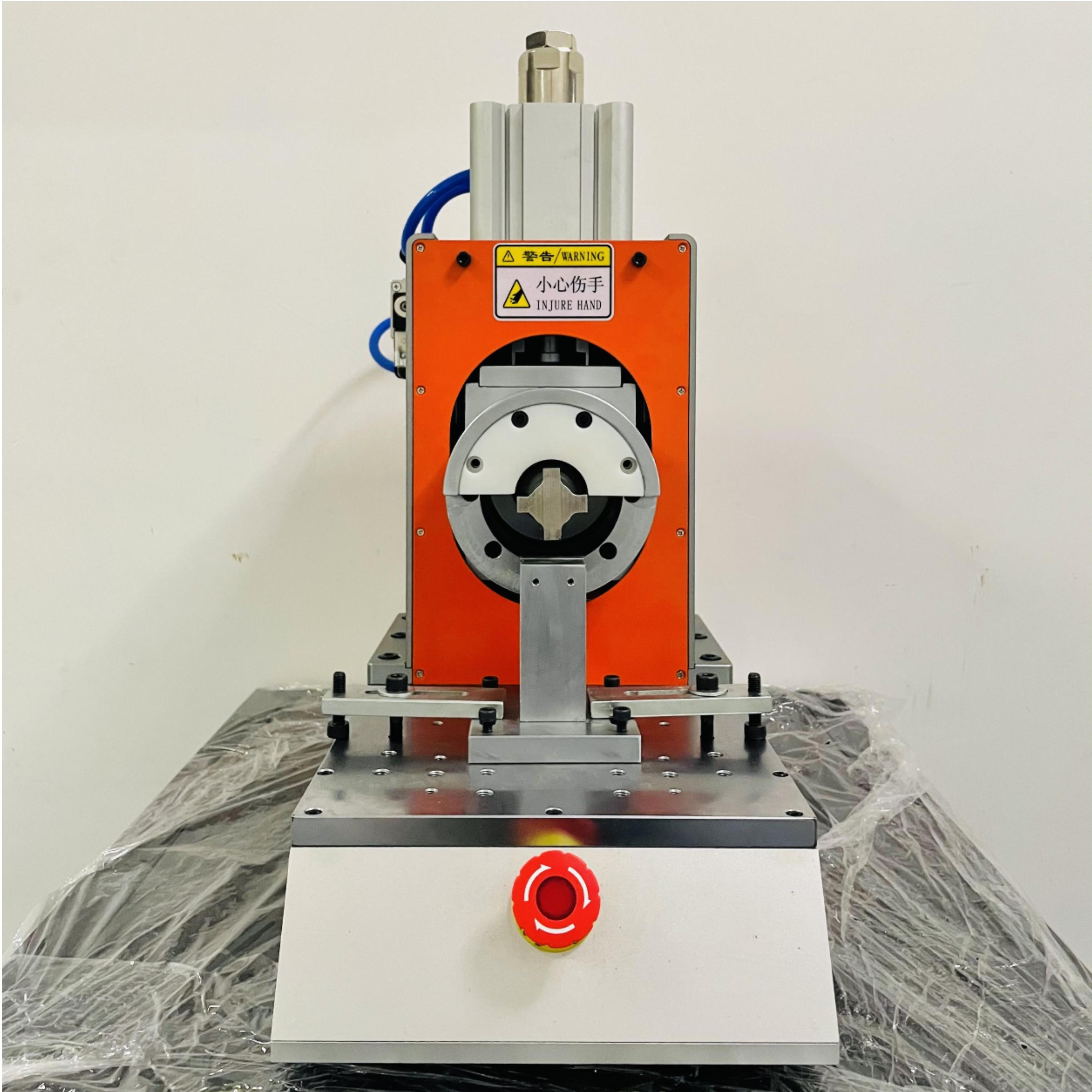

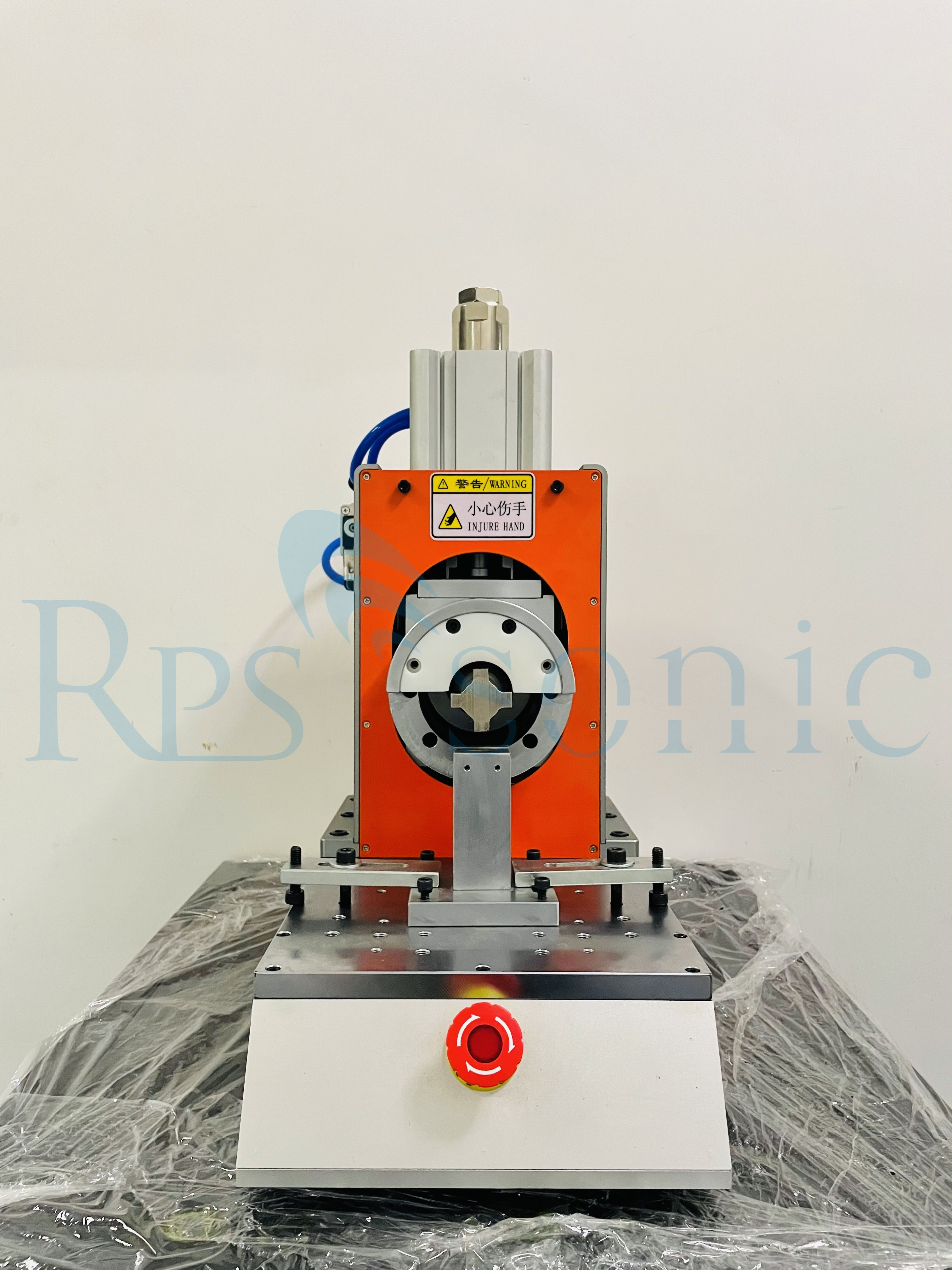

Unlike resistance welding, the ultrasonic vibration removes oxide film on the metal surface and scatters surface layer impurities in order to create a state of solid-phase welding through the attraction among the metal atoms.ultrasonic metal welder is based on principle of ultrasonic vibrations. Two metal parts are held between Ultrasonic vibrating tool horn & knurled fixture. At a time pressure is provided vertically to the vibrations. Due to this, parts ate scrubbed against each other oxide layer is being removed & two parts get joined.
So Welding is being done without losing properties of material & without adding any proper
Ultrasonic welding is cold welding process. It is being applied to metals such as copper, brass, aluminium, tin, silver, gold, platinum. Ultrasonic metal welding has used for various application in industries for electrical joints, contacts, soldering, solar panel welding compoite pipes making from strips.
Welding together flat cables
Welding flat cables to sheets

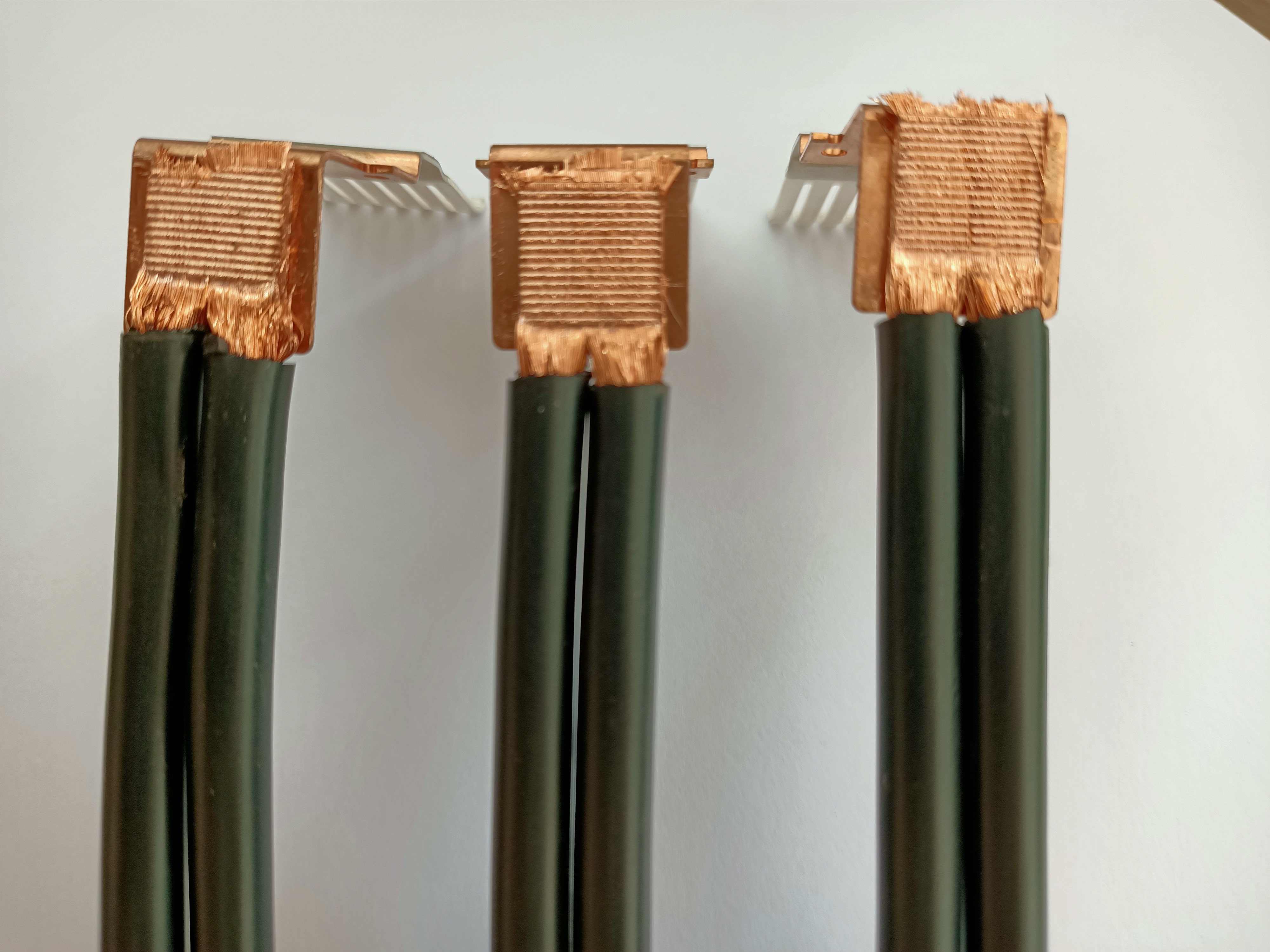

Welding solid round wire to sheets
Welding together narrow strips of sheetmetal
Sealing plastic squeeze tubes
Sealing (pinching off) copper and aluminum tubing
| Item | parameter |
| Maximum Output Power | 3300w |
| Frequency | 20Khz |
| Amplitude Adjustment | Variable (30 - 100%, 1% step) |
| Control Mode | Time/Depth/Height/Energy |
Dimension / Weight | W250 x D450 x H375mm Approx. 20kg |
Benefits of Ultrasonic Welding
High quality metallic bonds
High weld strength
Excellent electrical properties
Low thermal load
Low operating costs
Comprehensive process control
Short welding times
Easy Management with Graphic Monitor FunctionUltrasonic Peak Output
Ultrasonic Energy
Sinking Amount of the Work
Work Height
Simple Operation, Easy-to-read Display7-inch LCD Touch Panel
Intuitive Operation
Graphic Display
Setting and Management of Data via Serial Communication (RS-232C)Weld Conditions
Monitor Value
Judgment Result
Ultrasonic has been well accepted as a cold welding technique for continuous welding of solar thermal components which unchanged the basic property of the copper tube and the copper sheet.Without using any external solder or adhesive, the metallurgical bond between the two coppers / aluminum is achieved by ultrasonic technique. This ensures a very high degree of thermal efficiency. The resultant weld is continuous and there are no dry spots. The ultrasonic bond is achieved at a molecular level and as there is no external material, even the small width of the weld provides good transfer of the heat.
