| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-CS40 |
| Minimum Order Quantity | 1pcs |
| Price | negotiable |
| Packaging Details | CARTON |
| Delivery Time | 200PCS/MONTH |
| Payment Terms | T/T |

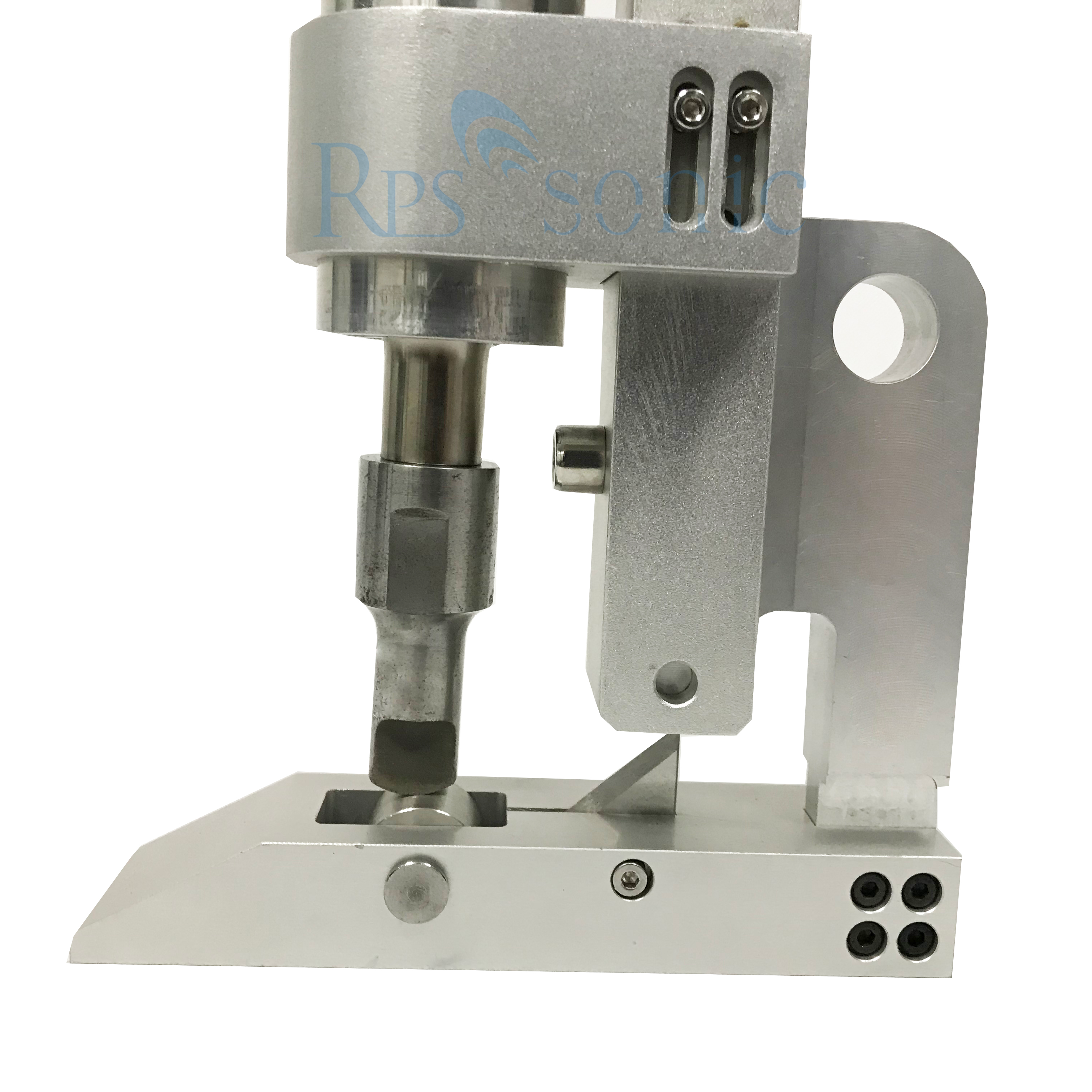

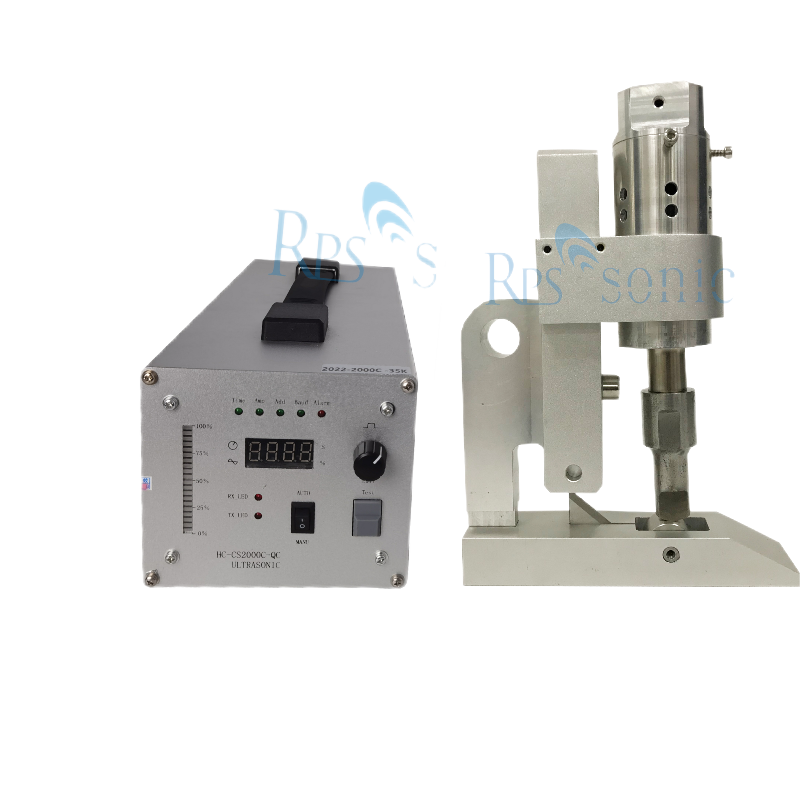

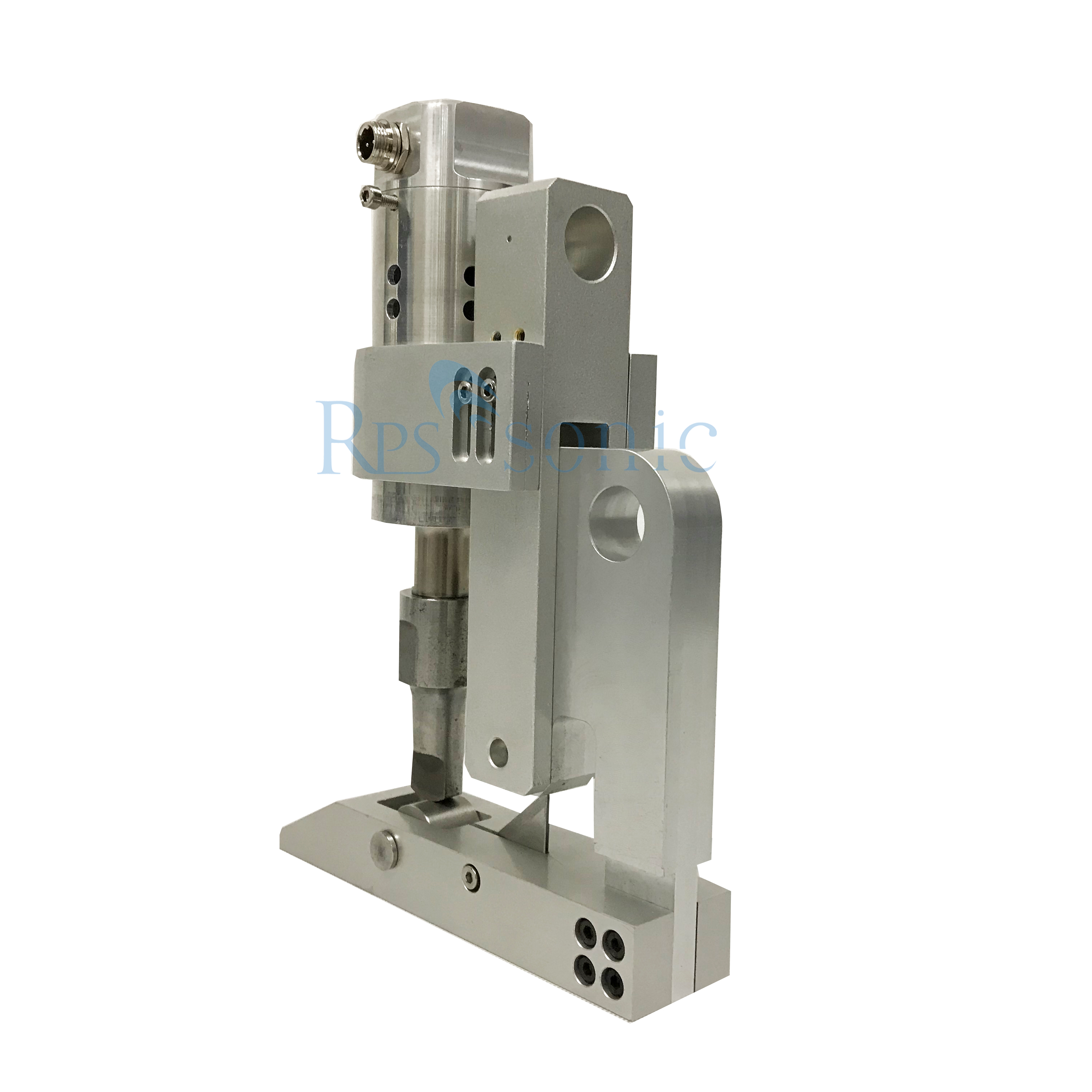

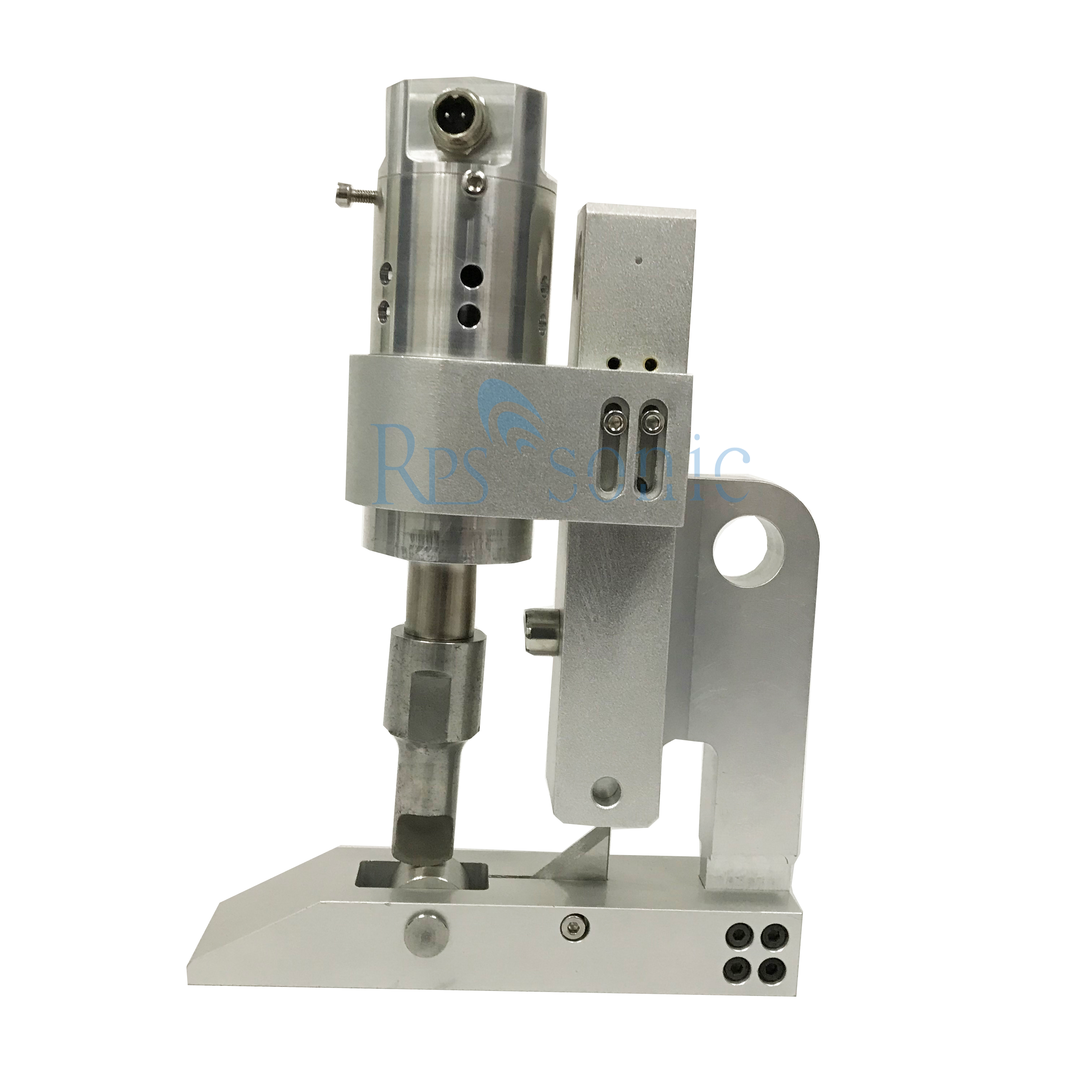

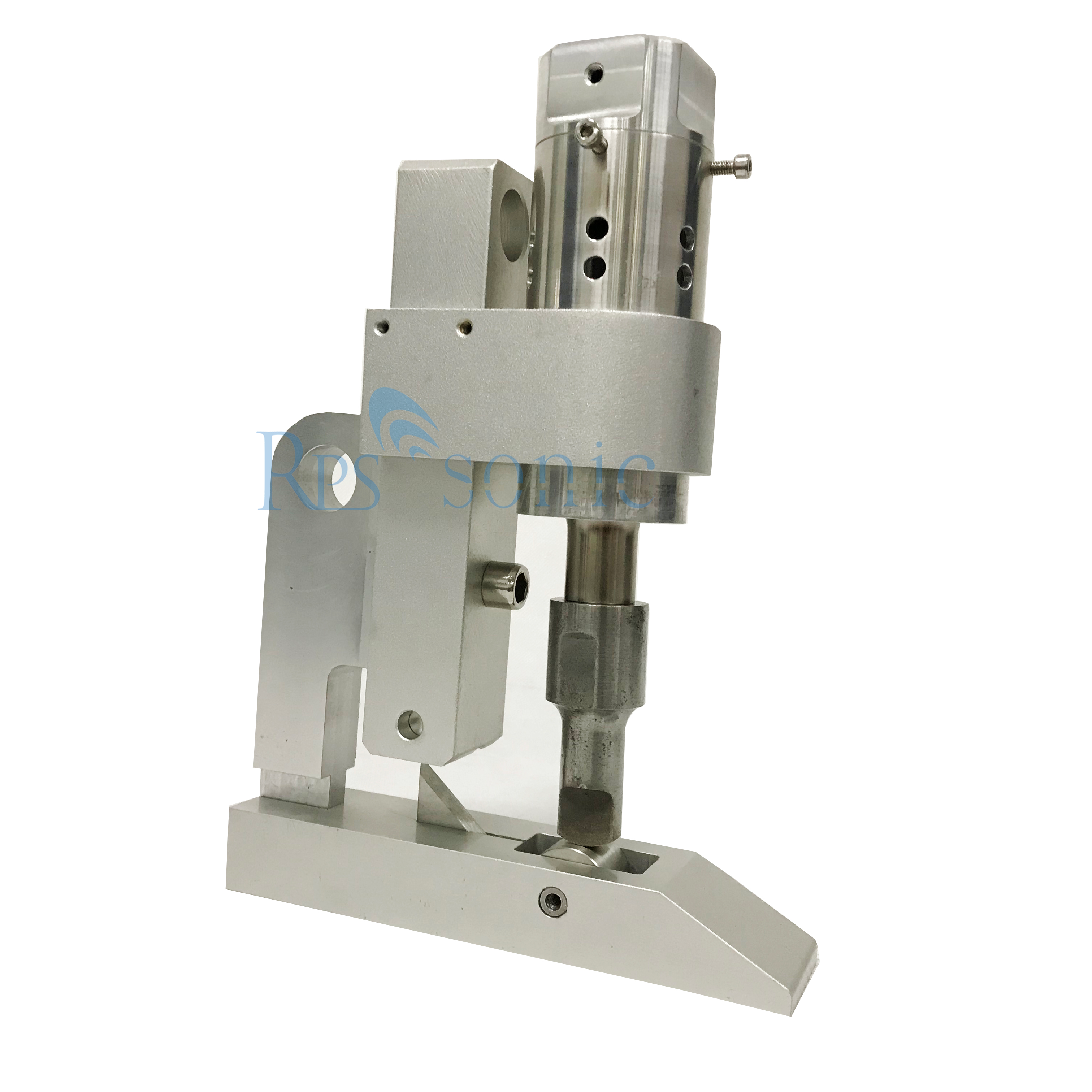

35Khz ultrasonic cutting and welding machine for fabric cutting
Parameter
| Frequency | 35Khz |
| Frequency adjustment | Auto-tracking type |
| Max. power output | 300W |
| Power output | Infinitive adjustment |
| Power supply | AC200V 50/60Hz |
| Outer dimension (mm) | 120*120*380 |
| Weight | 5kg |
| Horn width | 0.5mm |
Description
Ultrasonic energy has found extensive use in cutting of textiles, woven sacks/plastic etc and their downstream processing. Many of these uses are based on the ability to use ultrasonic energy to induce heat and pressure by vibratory action. The use of ultrasonic Cut n Seal technology makes manufacturing of non-wovens and wovens, economical and process-safe and our customers from the medical, packaging, fabrics and engineering industry value it tremendously.
With our ultrasonic cutting and sealing technology, we are able to separate precisely and expeditiously, and weld edges in a refined and reliable way. The principal advantage of the ultrasonic seal and cut method is that the edge of the textile material, while being cut simultaneously, is sealed by the dissipation of ultrasonic energy, thereby preventing the presence of a frayed edge or the unraveling of threads, no discoloration of fabric and very strong, uniform, smooth, clean and long lasting edges without over thickness with low energy consumption. RPS-SONIC manufacture a superior range of ultrasonic cutting and sealing systems that offer effective sealing with optimal functionality. These products are recognized for their efficient operation and reliability.
Application
Acrylic - Filters, awnings, blankets, garment, etc.
Nylon - Carpets, hook and loop material, seat belts, etc.
Polyster - Conveyor belts, filters, garments, laminates, etc.
Polyethylene - Laminates, resalable bags, etc.
Polypropylene - Bags, carpet backing, snack food packaging, disposable garments, etc.
PVC- Films, shrink packaging, tarpaulins, etc.
Urethane - Rainwear, coated materials, etc.
Features
1. The cutting incision is smooth, reliable, accurate trimming.
2. It can sealing the fabric when cutting. It is no deformation, no warped edg,.
3. No burry and no any silk out from the fabric, no wrinkle, no any deckle edge after cutting.
4. The working is stable and cutting speed is fast, non-stick knife, etc.
5. Easy to operate, no need professional person, save time and labor force.
6. Workers will be not tired after long operate.
7. Can be install onto the PLC robotic arm.
8. It can handheld working and install onto the hand pushing wheel bracket.
