| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | China |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-FC35 |
| Minimum Order Quantity | 1pcs |
| Price | Negotiable |
| Packaging Details | CARTON |
| Delivery Time | 1DAYS |
| Payment Terms | T/T |
| Supply Ability | 200PCS/MONTH |

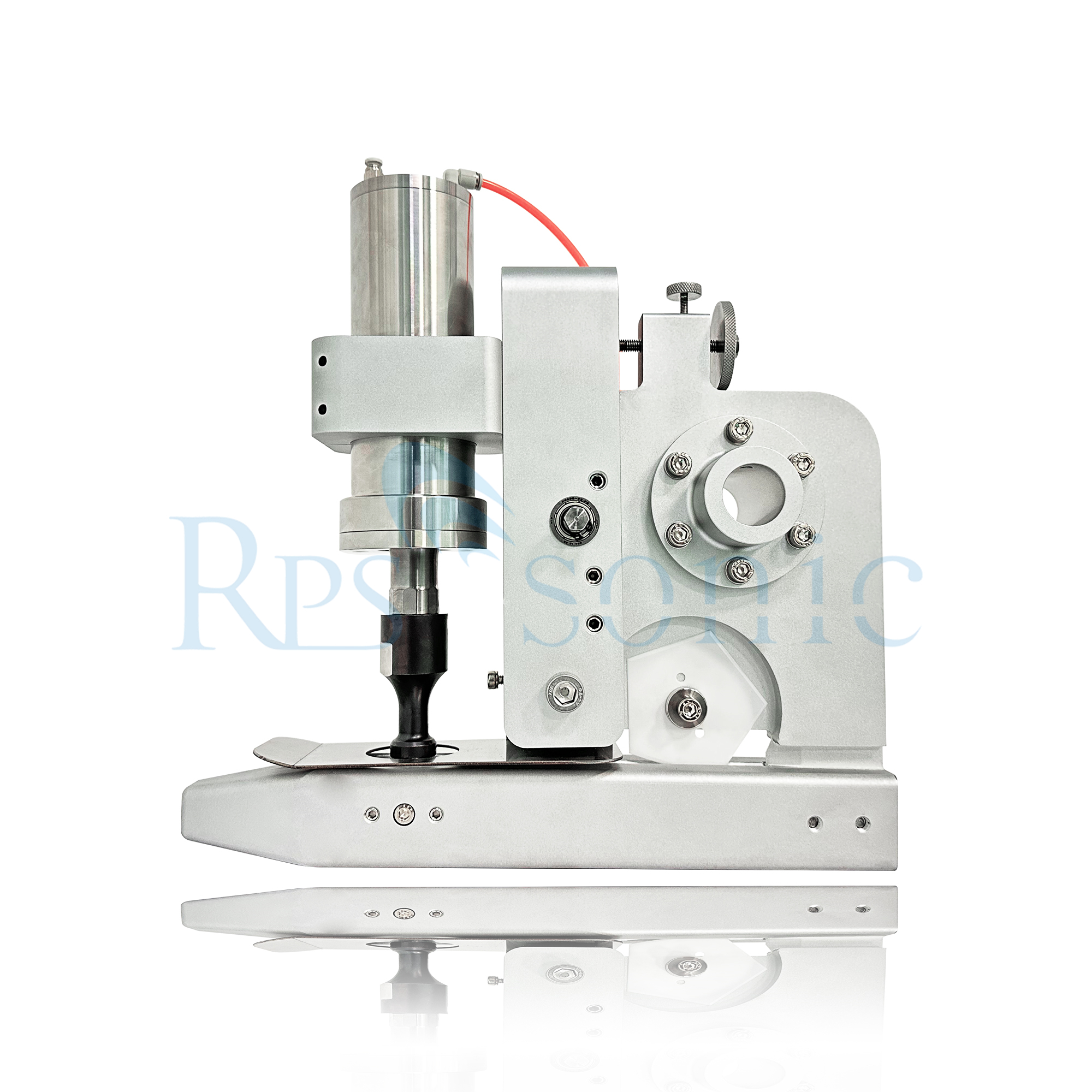

35Khz easy operate ultrasonic fabric cutting machine with digital generator
Parameter
| Frequency | 35Khz |
| Frequency adjustment | Auto-tracking type |
| Max. power output | 800W |
| Power output | Infinitive adjustment |
| Power supply | AC200V 50/60Hz |
| Outer dimension (mm) | 120*120*380 |
| Weight | 15kg |
| Horn width | 0.5mm |
Description
The ultrasonic fabric cutter with replaceable blade is a well-designed tool with replaceable blade heads, specially developed for precise cutting of thermoplastic materials. This cutter is suitable for both handheld operation and automated equipment, and provides blades of different hardness to suit various needs.
The ultrasonic fiber cutter has a longer blade, making it more suitable for processing harder materials such as carbon fiber and aramid. This tool can provide high cutting force and slow cutting speed, which is very suitable for cutting tasks that require high depth and precision.
The cutter head is a wearing part and needs to be replaced after a certain period of use. The design adopts a clamping structure, which significantly reduces replacement costs compared with traditional one-piece cutter heads. In addition, in addition to traditional high-speed steel cutting heads, the company also offers the option of harder tungsten carbide cutting heads. The tungsten carbide cutter head not only improves cutting efficiency and quality, but also has stronger wear resistance and is suitable for more stringent use conditions.
Features
High cutting stability: The output energy of the cutter head is controlled by a closed-loop circuit, with high repeatability and easy integration into automated production lines.
Easy to replace cutter head: The cutter head is designed to be quickly replaced, suitable for environments with frequent replacement requirements, extending service life, reducing maintenance costs, and improving production efficiency.
Reduce costs: The easy replacement of the cutter head greatly reduces maintenance costs. Users only need to replace the cutter head instead of the entire tool, optimizing economic benefits.
High precision and adaptability: Ultrasonic technology allows these knives to significantly reduce material adhesion and burrs when cutting, ensuring a clean and smooth cutting surface.
Environmental protection and safety: Ultrasonic technology improves cutting efficiency and ensures environmental protection and safety. Low-temperature cutting is suitable for temperature-sensitive materials and reduces waste.
Configuration advantages
1.Real time frequency automatic tracking display
2.Welding modes: time, energy, and grounding.
3.Amplitude division function
4.Welding amplitude 10%-100% adjustable (1% accuracy)
5.Amplitude compensation
6.Mold impedance analysis + protection
7.Overload protection
8.Voltage protection (input)
9.Transducer voltage protection
10.485 communication
35Khz easy operate ultrasonic fabric cutting machine with digital generator
Parameter
| Frequency | 35Khz |
| Frequency adjustment | Auto-tracking type |
| Max. power output | 800W |
| Power output | Infinitive adjustment |
| Power supply | AC200V 50/60Hz |
| Outer dimension (mm) | 120*120*380 |
| Weight | 15kg |
| Horn width | 0.5mm |
Description
The ultrasonic fabric cutter with replaceable blade is a well-designed tool with replaceable blade heads, specially developed for precise cutting of thermoplastic materials. This cutter is suitable for both handheld operation and automated equipment, and provides blades of different hardness to suit various needs.
The ultrasonic fiber cutter has a longer blade, making it more suitable for processing harder materials such as carbon fiber and aramid. This tool can provide high cutting force and slow cutting speed, which is very suitable for cutting tasks that require high depth and precision.
The cutter head is a wearing part and needs to be replaced after a certain period of use. The design adopts a clamping structure, which significantly reduces replacement costs compared with traditional one-piece cutter heads. In addition, in addition to traditional high-speed steel cutting heads, the company also offers the option of harder tungsten carbide cutting heads. The tungsten carbide cutter head not only improves cutting efficiency and quality, but also has stronger wear resistance and is suitable for more stringent use conditions.
Features
High cutting stability: The output energy of the cutter head is controlled by a closed-loop circuit, with high repeatability and easy integration into automated production lines.
Easy to replace cutter head: The cutter head is designed to be quickly replaced, suitable for environments with frequent replacement requirements, extending service life, reducing maintenance costs, and improving production efficiency.
Reduce costs: The easy replacement of the cutter head greatly reduces maintenance costs. Users only need to replace the cutter head instead of the entire tool, optimizing economic benefits.
High precision and adaptability: Ultrasonic technology allows these knives to significantly reduce material adhesion and burrs when cutting, ensuring a clean and smooth cutting surface.
Environmental protection and safety: Ultrasonic technology improves cutting efficiency and ensures environmental protection and safety. Low-temperature cutting is suitable for temperature-sensitive materials and reduces waste.
Configuration advantages
1.Real time frequency automatic tracking display
2.Welding modes: time, energy, and grounding.
3.Amplitude division function
4.Welding amplitude 10%-100% adjustable (1% accuracy)
5.Amplitude compensation
6.Mold impedance analysis + protection
7.Overload protection
8.Voltage protection (input)
9.Transducer voltage protection
10.485 communication
