What's the application of ultrasonic fabric cutter?

In the field of textile and clothing manufacturing, fabric cutting is a basic and critical process. Traditional cutting methods often expose many limitations when facing some special materials or complex shapes. The emergence of ultrasonic cloth cutters has brought a new solution to the industry and revolutionized the way fabric is cut.

1. Analysis of working principle

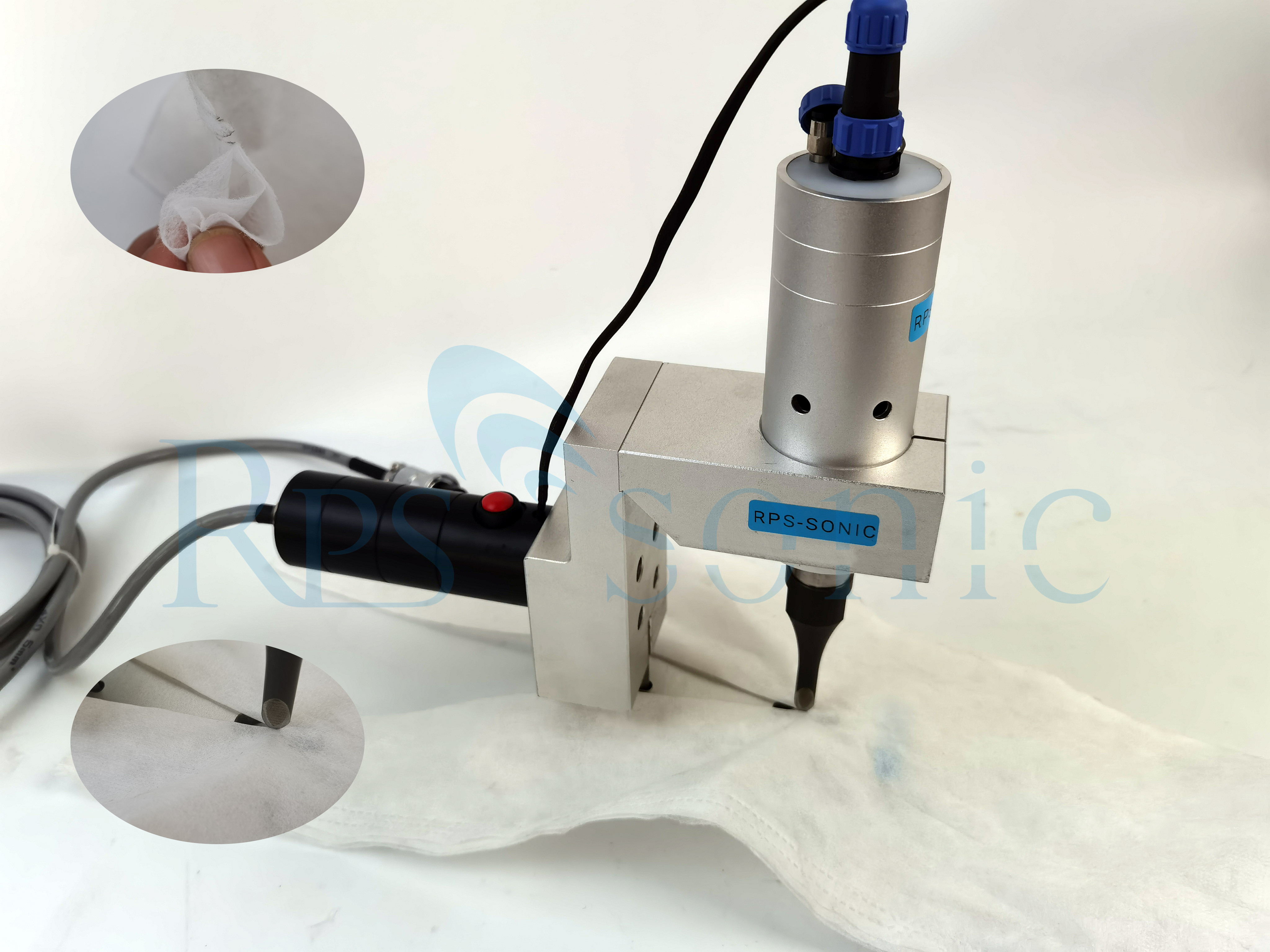

The operation of ultrasonic cloth cutter is based on ultrasonic technology. Its core components include ultrasonic generator, transducer and cutting tool. The ultrasonic generator generates high-frequency electrical energy, generally with a frequency of more than 20kHz. These high-frequency electrical energies are converted into mechanical vibration energy through the transducer, so that the cutting tool vibrates with a very high frequency (more than 20,000 times per second) and a small amplitude.

When the vibrating tool contacts the cloth, the high-frequency friction generated instantly causes the local temperature of the cloth to rise sharply, resulting in the weakening of the force between the fiber molecules, thereby achieving the separation of the cloth. Unlike traditional cutting, which relies on the sharp edge of the tool to apply pressure to force cutting, the ultrasonic cloth cutter uses ultrasonic energy to change the material at the microscopic level, thereby easily completing the cutting process. This non-contact energy action mode greatly reduces the mechanical damage to the cloth and ensures the cutting quality.

2. Significant features highlight advantages

(I) Excellent cutting quality

The cuts made by ultrasonic cloth cutters are extremely smooth and neat. During the cutting process, the fabric fibers are quickly separated and partially fused under the action of ultrasound, which effectively avoids the problems of fuzzing, filament drawing, and loose edges that often occur in traditional cutting. For some high-end fabrics that have strict requirements on edge quality, such as silk and lace, ultrasonic cloth cutters can perfectly present exquisite cutting edges, greatly improving the quality of the product.

(II) High cutting accuracy

High-frequency vibration enables the cutting tool to be accurately positioned during cutting, and dimensional accuracy as fine as millimeters or even smaller can be easily achieved. This feature has obvious advantages when dealing with fabric cutting of complex patterns or precision parts. It can strictly follow the preset cutting path to reduce material waste caused by cutting errors and improve the utilization rate of raw materials.

(III) High efficiency and energy saving

Compared with traditional cutting equipment, ultrasonic cloth cutters have significant advantages in cutting speed. Its fast cutting action and efficient energy transfer can complete the cutting task of a large amount of fabric in a short time, greatly improving production efficiency. At the same time, since it does not require excessive pressure and long-term continuous cutting, the energy consumption is low, which meets the requirements of modern manufacturing industry for energy conservation and environmental protection.

(IV) Wide applicability

Whether it is soft and thin chiffon, cotton, elastic spandex, rubber fabric, or tough denim, canvas, etc., the ultrasonic cloth cutter can handle it with ease. It can achieve the best cutting effect by adjusting the power, frequency and other parameters of the ultrasonic wave according to the characteristics of different fabrics, and has strong versatility.

3. Multiple application scenarios

(I) Clothing manufacturing

On the clothing production line, ultrasonic cloth cutters are everywhere, from fabric cutting to parts cutting. When cutting ready-made clothes such as shirts and dresses, it can ensure that the cutting edges of the collar, cuffs and other parts are neat and beautiful, without the need for excessive subsequent edge lock processing; for the production of elastic clothing such as underwear and swimsuits, its precise cutting and good edge processing can not only ensure the fit of the clothing, but also prevent the elastic fabric from coming off during wearing.

(II) Home textile product production

In the home textile industry, such as the production of curtains and bedding, ultrasonic cloth cutters can efficiently cut large-format fabrics, ensure accurate size, and make the cutting edges smooth, preventing the fabric from affecting the appearance and service life due to uneven edges during use. When making products such as cushions and pillows, it can also easily achieve the cutting of complex shapes of fabrics, improving the sophistication of the product.

(III) Non-woven fabric processing

Non-woven fabrics are widely used in medical and health, industrial filtration and other fields. Ultrasonic cloth cutters can cut non-woven fabrics quickly and cleanly, and heat-seal the edges while cutting, effectively preventing the scattering of non-woven fabric fibers, and meeting the special requirements of non-woven fabric products in terms of hygiene and filtration. For example, in the production of disposable masks, surgical gowns and other medical and sanitary products, its high-efficiency and high-quality cutting performance plays an important role.
