40khz Portable Ultrasonic Cutting Machine Replaceable Blades For Non Woven

 Descripersion:

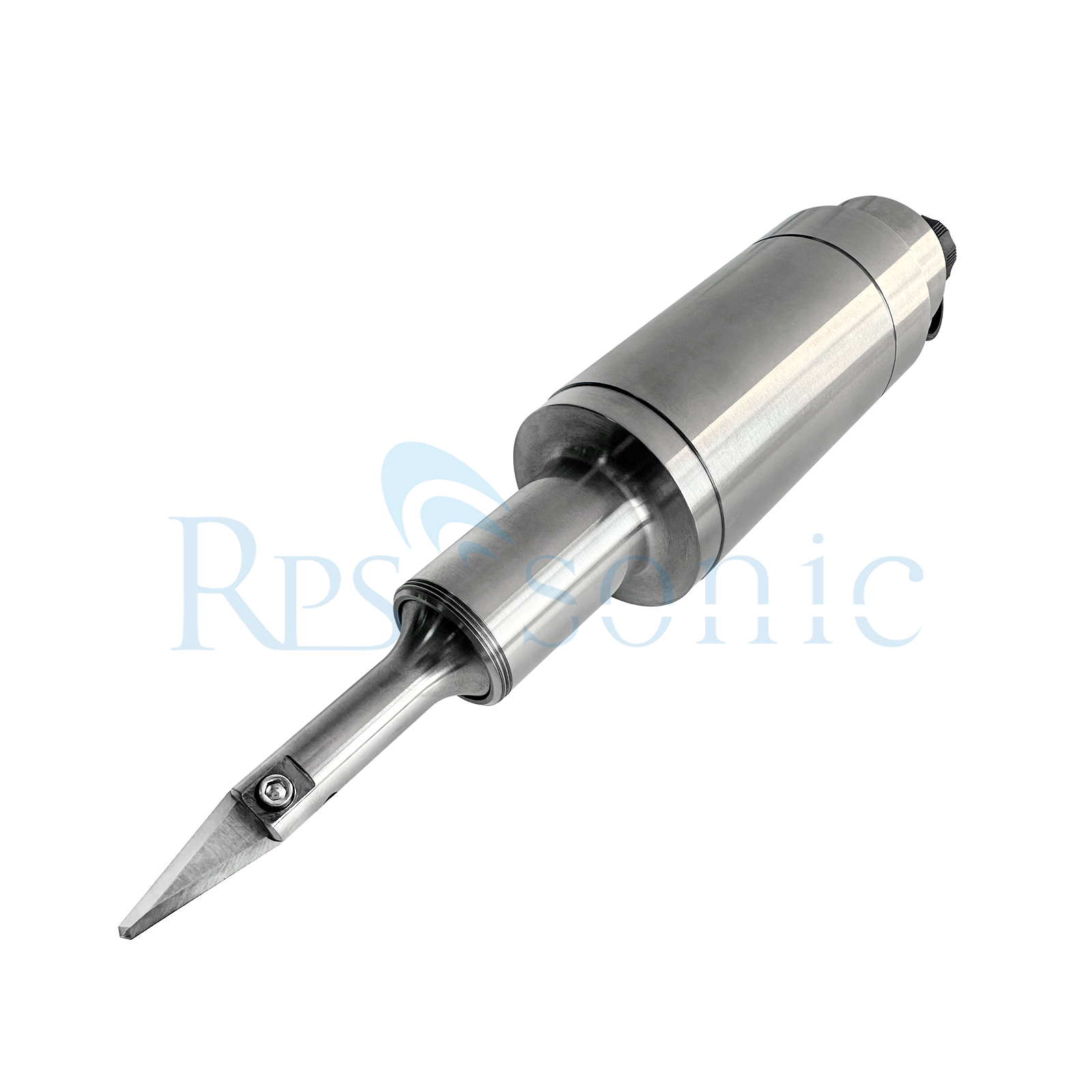

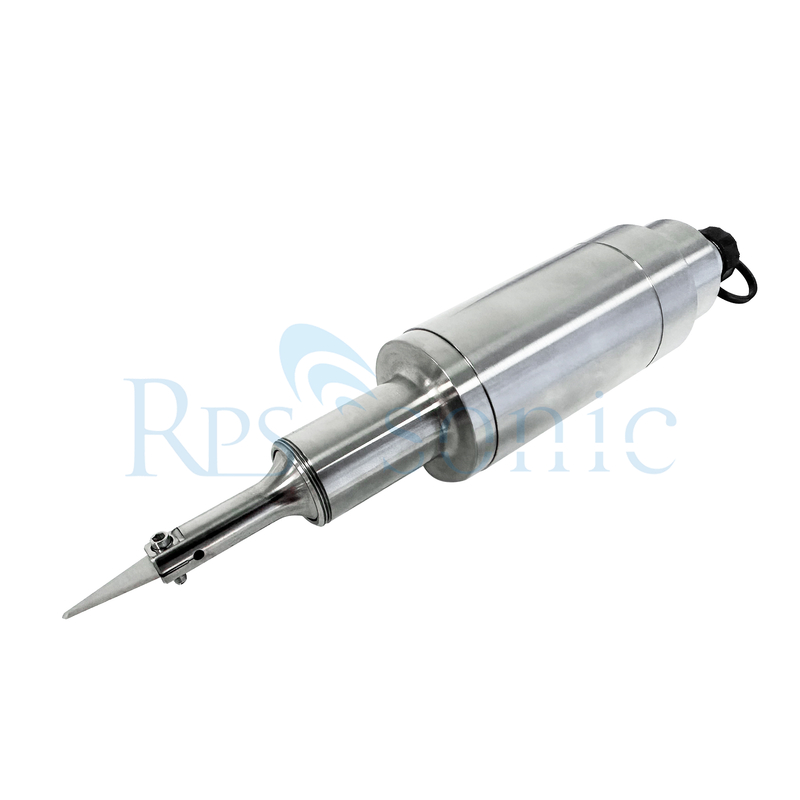

The maximum output power of the replaceable blade handheld ultrasonic cutting knife is 100W. The shell is made of stainless steel, and the blade head uses a 0.6mm thick hard wear-resistant alloy blade. Users can replace the blade by themselves, which prolongs the service life of the cutting knife and saves costs.

Ultrasonic cutting uses ultrasonic energy to locally heat and melt the material to be cut to achieve the purpose of cutting, so there is no need for a sharp blade. It is often used to cut difficult-to-cut materials, such as thermoplastic resin plates, sheets, films and laminates, carbon fiber composite materials, fabrics and rubber, etc.

The maximum output power of the replaceable blade handheld ultrasonic cutting knife is 100W. The shell is made of stainless steel, and the blade head uses a 0.6mm thick hard wear-resistant alloy blade. Users can replace the blade by themselves, which prolongs the service life of the cutting knife and saves costs.

Ultrasonic cutting uses ultrasonic energy to locally heat and melt the material to be cut to achieve the purpose of cutting, so there is no need for a sharp blade. It is often used to cut difficult-to-cut materials, such as thermoplastic resin plates, sheets, films and laminates, carbon fiber composite materials, fabrics and rubber, etc.

Parameter:

 Advantages of handheld ultrasonic cutting knife:

High stability: The ultrasonic generator generates 40KHz electromagnetic vibration when working, and converts it into mechanical oscillation and transmits it to the cutting knife and the cutting material, so it is mechanically cut, so there is no need for sharp edges, the blade wear is small, and the blade head can be replaced by itself.

No pollution: When the ultrasonic knife is cutting, the temperature of the blade head is lower than 50℃, and no smoke and odor will be generated, eliminating the risk of injury and fire during cutting.

Neat cutting: Since the ultrasonic wave cuts through high-frequency vibration, the material will not adhere to the surface of the blade. Only a small pressure is required during cutting, and there is no deformation and wear for fragile and soft materials. The fabric is cut and the edge is automatically sealed at the same time, which will not cause edge collapse.

Simple operation: The cutting knife is connected to the ultrasonic generator, the generator is connected to 220V AC power, and the switch can be turned on to cut. It supports handheld cutting and is equipped with an air cooling interface.

Wide range of applications: Various textile materials and plastic sheets can be cut by ultrasound, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics.
