| Availability: | |
|---|---|
| Quantity: | |
| Place of Origin | CHINA |
|---|---|
| Brand Name | RPS-SONIC |
| Certification | CE |
| Model Number | RPS-C40 |
| Minimum Order Quantity | 1SET |
| Price | negotiation |
| Packaging Details | FOAM AND CARTON |
| Delivery Time | 3DAYS |
| Payment Terms | T/T, Western Union, MoneyGram, PAYPAL |
| Supply Ability | 500 SETS PER MONTH |
| Item | 30Khz cutter | 40Khz cutter |
| Frequency | 30khz | 40khz |
| Power | 300w | 200w |
| Amplitude | 10-60μm | 10~50μm |
| Blade tips thickness | 1mm | 0.6mm |
| Horn | Rapid steel | Rapid steel |
| Cutting thickness | 0.1~10mm | 0.1~8mm |
| Suitable material | Carbon fiber, Nomex, honey combs, Prepreg materials,Rubber,Thermoplastics,Leather,Cloth Non woven, fabric, Paper Plastic sheet etc., | |

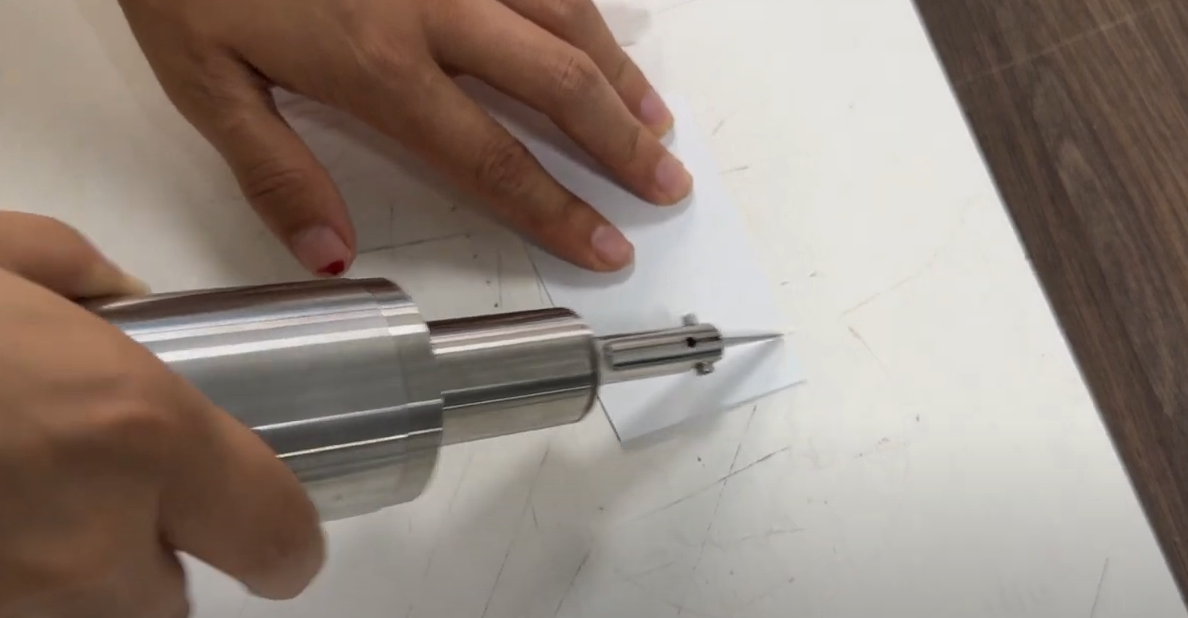

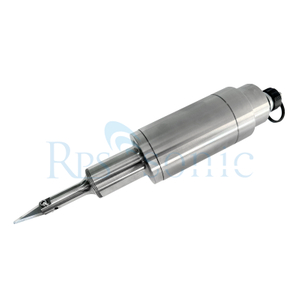

As a kind of cutting tool, the handheld mobile rubber and plastic ultrasonic cutting machine uses ultrasonic technology and has the advantages of small friction resistance of ultrasonic vibration, and the cut product will not be deformed due to compression or extrusion. It can make up for the shortcomings of existing traditional cutting methods for cutting elastic and viscous materials, and the cut material is not easy to adhere to the blade.
The portable rubber and plastic ultrasonic cutting machine does not use traditional blades, which prevents the generation of debris during cutting and reduces downtime for cleaning. The cutting blade is durable. The temperature of the blade head is below 50℃ during cutting to prevent smoke and odor, eliminating the risk of fire. The ultrasonic cutting machine is pollution-free and easy to operate. It is small in size and does not require a large installation area. No special equipment is required for installation.
The portable rubber and plastic ultrasonic cutting machine can cut and seal fabrics, chemical fiber cotton, plastic film, fabric, non-woven fabric, sponge and other materials. It can process the surface of the workpiece while creating a tiny broken layer, thus greatly reducing the processing load of the grinding wheel blade.
Target Materials
Resin plate
Glass fiber (GFRP)
Formed decorative film
Foam
Blow-molded parts
Injection-molded parts
Carbon fiber (CFRP)
Aluminum foil composites
Non-woven fabrics
Controlled-depth kiss cutting
| Item | 30Khz cutter | 40Khz cutter |
| Frequency | 30khz | 40khz |
| Power | 300w | 200w |
| Amplitude | 10-60μm | 10~50μm |
| Blade tips thickness | 1mm | 0.6mm |
| Horn | Rapid steel | Rapid steel |
| Cutting thickness | 0.1~10mm | 0.1~8mm |
| Suitable material | Carbon fiber, Nomex, honey combs, Prepreg materials,Rubber,Thermoplastics,Leather,Cloth Non woven, fabric, Paper Plastic sheet etc., | |
As a kind of cutting tool, the handheld mobile rubber and plastic ultrasonic cutting machine uses ultrasonic technology and has the advantages of small friction resistance of ultrasonic vibration, and the cut product will not be deformed due to compression or extrusion. It can make up for the shortcomings of existing traditional cutting methods for cutting elastic and viscous materials, and the cut material is not easy to adhere to the blade.
The portable rubber and plastic ultrasonic cutting machine does not use traditional blades, which prevents the generation of debris during cutting and reduces downtime for cleaning. The cutting blade is durable. The temperature of the blade head is below 50℃ during cutting to prevent smoke and odor, eliminating the risk of fire. The ultrasonic cutting machine is pollution-free and easy to operate. It is small in size and does not require a large installation area. No special equipment is required for installation.
The portable rubber and plastic ultrasonic cutting machine can cut and seal fabrics, chemical fiber cotton, plastic film, fabric, non-woven fabric, sponge and other materials. It can process the surface of the workpiece while creating a tiny broken layer, thus greatly reducing the processing load of the grinding wheel blade.
Target Materials
Resin plate
Glass fiber (GFRP)
Formed decorative film
Foam
Blow-molded parts
Injection-molded parts
Carbon fiber (CFRP)
Aluminum foil composites
Non-woven fabrics
Controlled-depth kiss cutting
